5" x 2" Polyon Cast Swivel Caster w/ Dual Petal Total Lock Brake - 1100 lbs. Cap.

In stock
SKU: DTPU50JG0417YY
Regular price $59.92
Est. Ship Date: Monday, May 27th
Trusted By

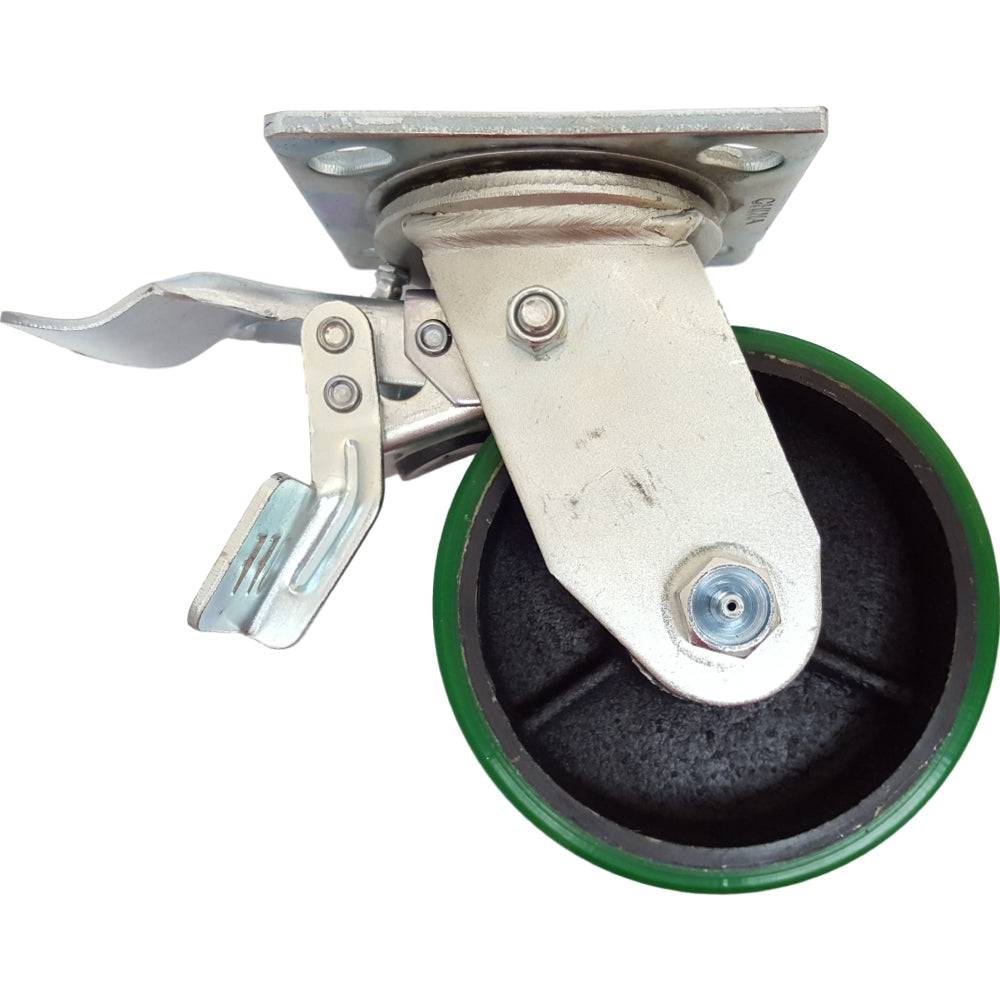

5" x 2" Polyon Cast Wheel Swivel Caster with Dual Petal Top Lock Brake

Polyurethane elastomer tread chemically bonded to a cast iron core. These wheels are somewhat heavy and are ideal for warehouses with concrete and hardwood flooring.

Tread: Polyurethane Elastomer

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Dual Pedal Brake

  • Capacity: 1,100 Lbs.
  • Color: Green and Black
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -45° F to 180° F
Load Capacity  1,100 Lbs.
Wheel Diameter
5"
Tread Width
1-1/4"
Tread Type
Polyurethane Elastomer
Core Type
Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Green and Black
Overall Height
6-1/2"
Swivel Radius
5"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Dual Pedal Lock
Durometer  Shore A 95 (+/-5)
Temperature Range  -45° F to 180° F
