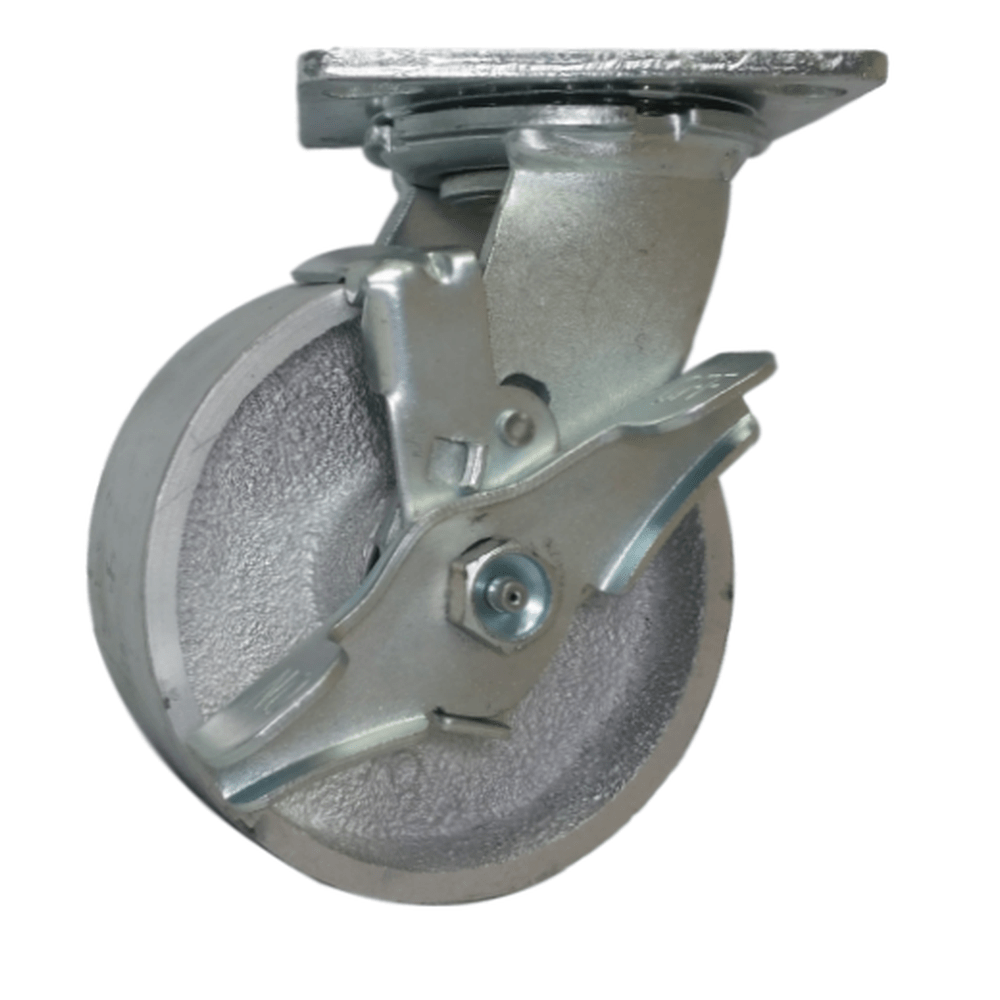

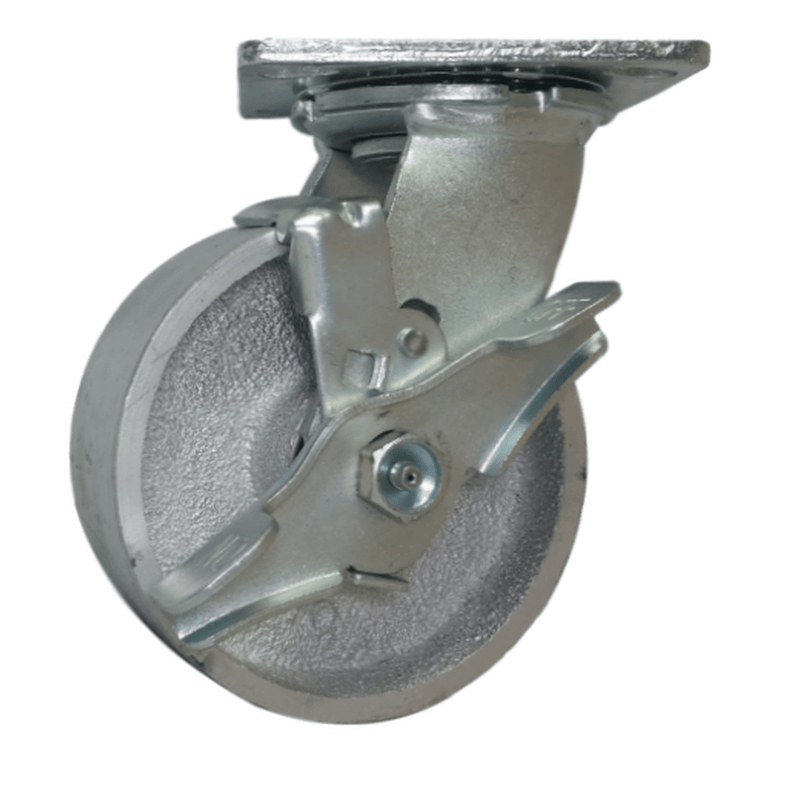

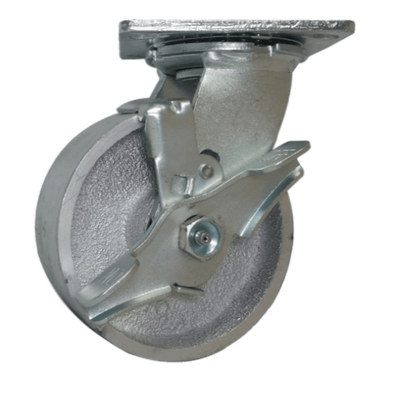

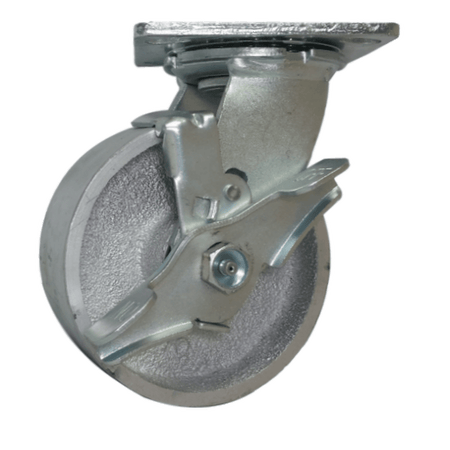

5" x 2" Semi-Steel Wheel Swivel Caster w/ Top Lock Brake - 1000 lbs. Cap.

In stock
SKU: 27SS50JS0417TY
Regular price $44.79
Est. Ship Date: Wednesday, May 29th
Four Position Swivel Lock
Trusted By

5" x 2" Semi-Steel Wheel Swivel Caster with Top Lock Brake

Semi-Steel / Cast iron, offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 1,000 Lbs.
  • Color: Silver
  • Hardness: Brinell 145
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity 1,000 Lbs.
Wheel Diameter 5"
Tread Width 2"
Tread Type  Steel Alloy
Core Type  Steel Alloy
Bearing Type Roller Bearing
Wheel Type Silver
Overall Height 6-1/2"
Swivel Radius 4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type
Top Lock Brake
Tensile Strength 30,000 PSI
Temperature Range
-45° F to 600° F
