5" x 1-1/4" Thermo-Pro Wheel Rigid Caster - 300 lb Capacity

In stock
SKU: 76TP50GI4411YY
Regular price $12.73
Est. Ship Date: Wednesday, May 29th
Mounting Plate Size
Trusted By

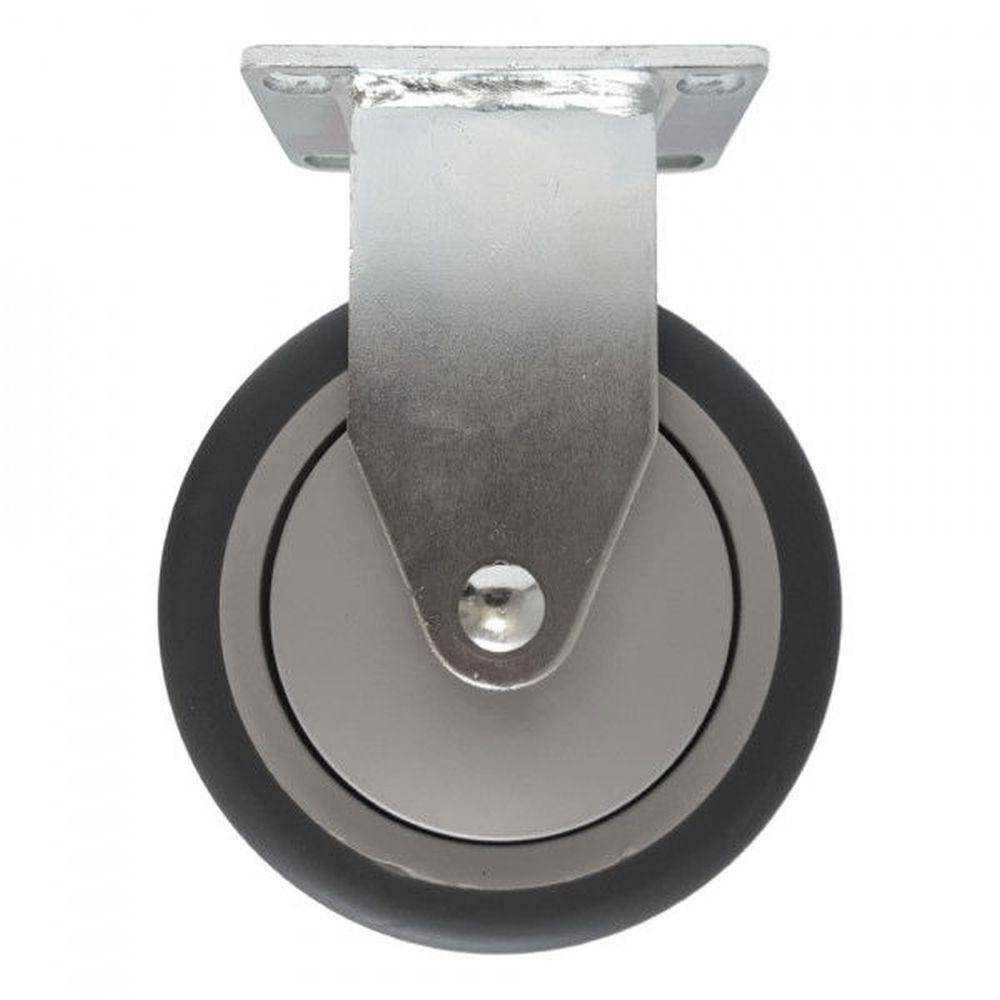

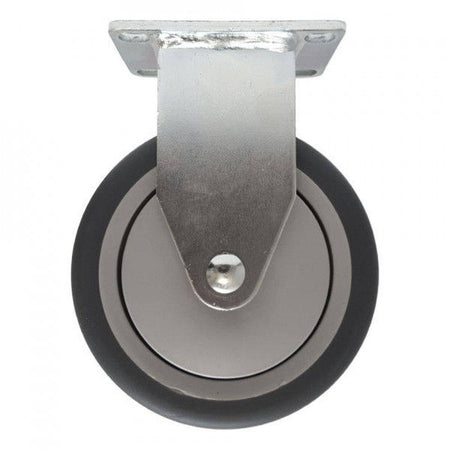

5" x 1-1/4" Thermo-Pro Wheel Rigid Caster

The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.

Tread:Non-Marking Thermoplastic Rubber

Core:Solid Polyolefin Core

Bearing:Ball Bearing

Rig:Zinc-Plated Rigid Caster,Multiple Mounting Plate Options

  • Capacity: 300 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore A 75 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 300 Lbs.
Wheel Diameter 5"
Tread Width 1-1/4"
Tread Type
Non-Marking Thermoplastic Rubber
Core Type Polyolefin Core
Bearing Type Sealed Precision Bearing
Wheel Color Gray/Gray
Overall Height 6-1/8"
2-3/8" x 3-5/8" Plate Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
3-1/8" x 4-1/8" Plate Bolt Hole Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Bolt Hole Diameter 3/8"
Durometer ShoreA 75 (+/-5)
Temperature Range
-20° F to 180° F
