5" x 1-1/4" Thermo-Pro Wheel Swivel Caster W/ Brake - 300 lbs. capacity

In stock
SKU: 75TP50GY4706TY
Regular price $16.78

Trusted By

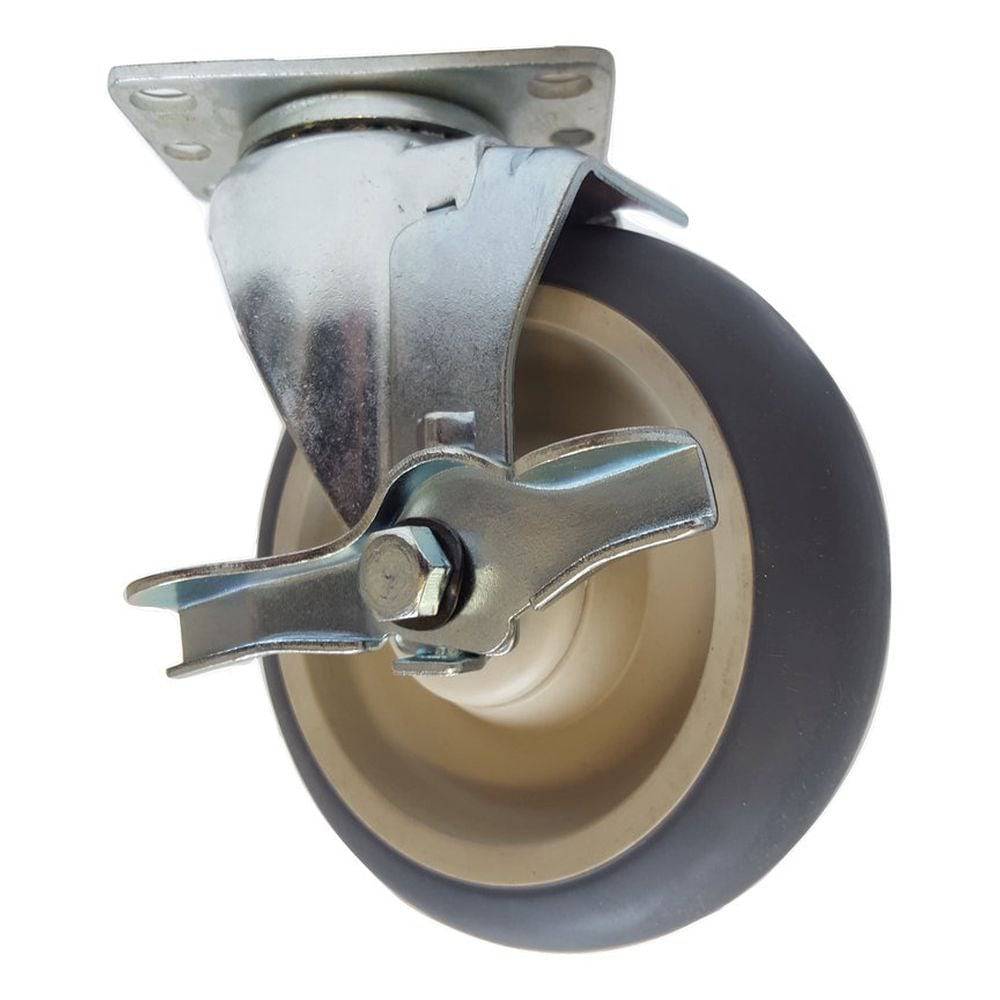

5" x 1-1/4" Thermo-Pro Wheel Swivel Caster with Top Lock Brake

The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.

Tread: Non-Marking Thermoplastic Rubber

Core: Solid Polyolefin Core

Bearing: ?Sealed Precision Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Top Lock Brake

  • Capacity: 300 Lbs.
  • Color: Gray and Beige
  • Durometer: Shore A 75 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity  300 Lbs.
Wheel Diameter
5"
Tread Width
1-1/4"
Tread Type
Non-Marking Thermoplastic Rubber
Core Type
Solid Polyolefin Core
Bearing Type  Precision Bearing
Wheel Color
Gray and Beige
Overall Height
6-1/8"
Swivel Radius
4"
Plate Size
2-3/8" x 3-5/8"
Bolt Hole Pattern
1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter  5/16"
Lock Type  Top Lock Brake
Durometer  Shore A 75 (+/-5)
Temperature Range  -20° F to 180° F
