5" x 1-1/4" Thermo-Pro Wheel Swivel Caster W/ Total-Lock brake - 300 lbs. Cap.
Couldn't load pickup availability
Trusted By

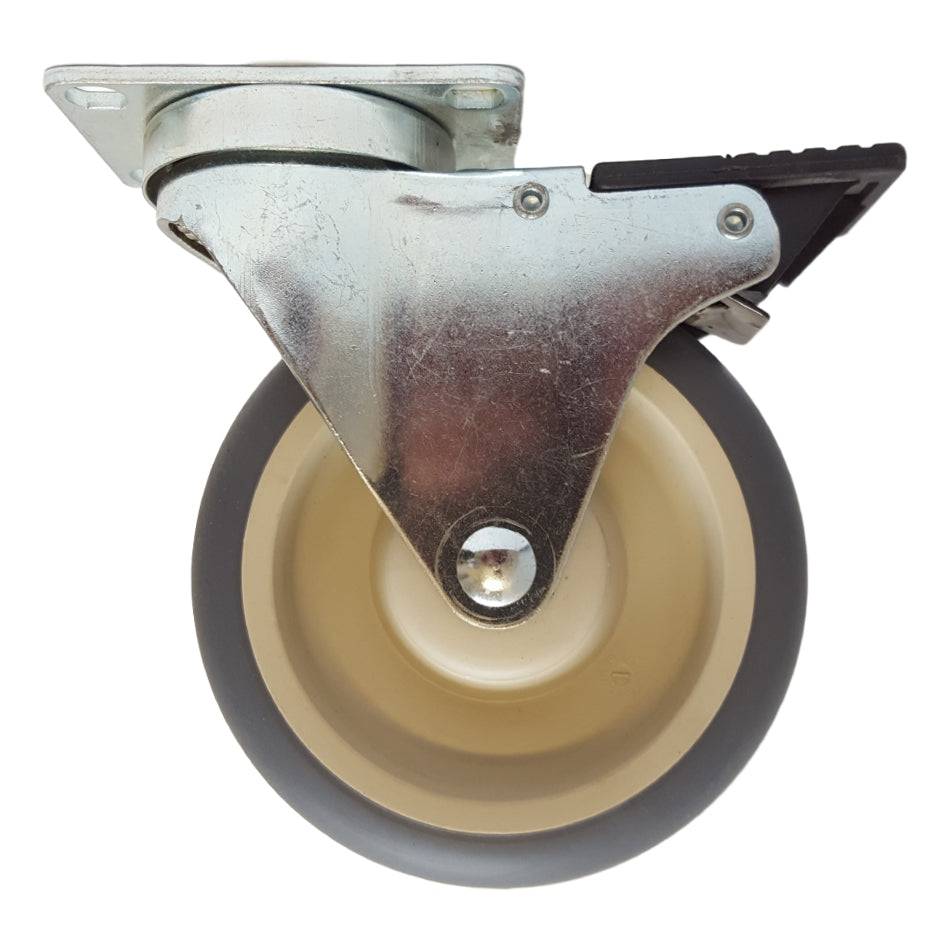

5" x 1-1/4" Thermo-Pro Wheel Swivel Caster with Total Lock Brake
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber
Core: Solid Polyolefin Core
Bearing: Sealed Precision Ball Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake
- Capacity: 300 Lbs.
- Color: Gray and Beige
- Durometer: Shore A 75 (+/-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 300 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
1-1/4" |
| Tread Type |
Non-Marking Thermoplastic Rubber |
| Core Type |
Solid Polyolefin Core |
| Bearing Type |
Sealed Precision Bearing |
| Wheel Color |
Gray and Beige |
| Overall Height |
6-1/4" |
| Swivel Radius |
4-7/8" |
| Plate Size |
2-3/8" x 3-5/8" |
| Bolt Hole Pattern |
1-3/4" x 2-7/8 slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Total Lock Brake |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -20° F to 180° F |
