5" x 1-1/4" Element Wheel Rigid Caster- 250 lb. Cap
Couldn't load pickup availability
Trusted By

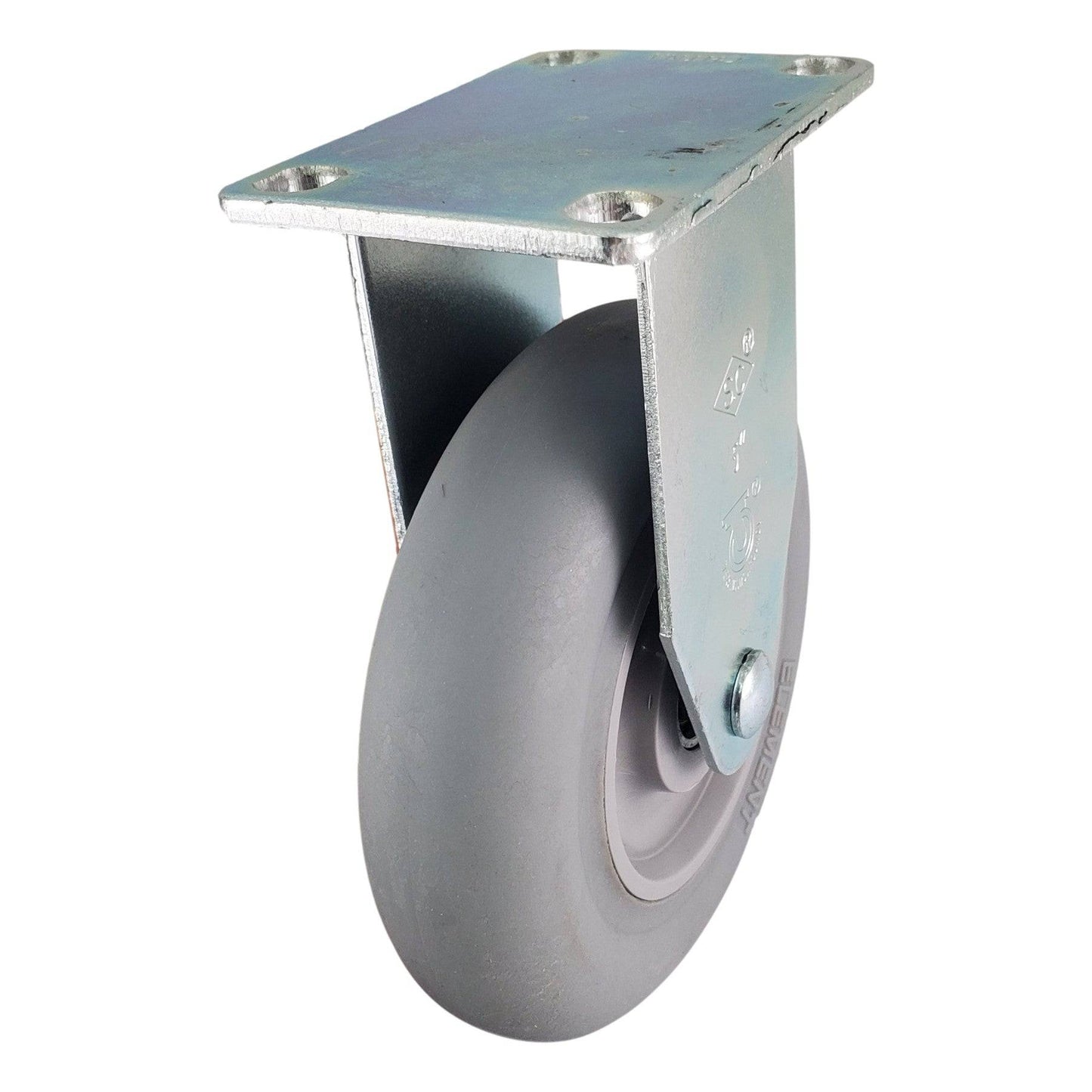

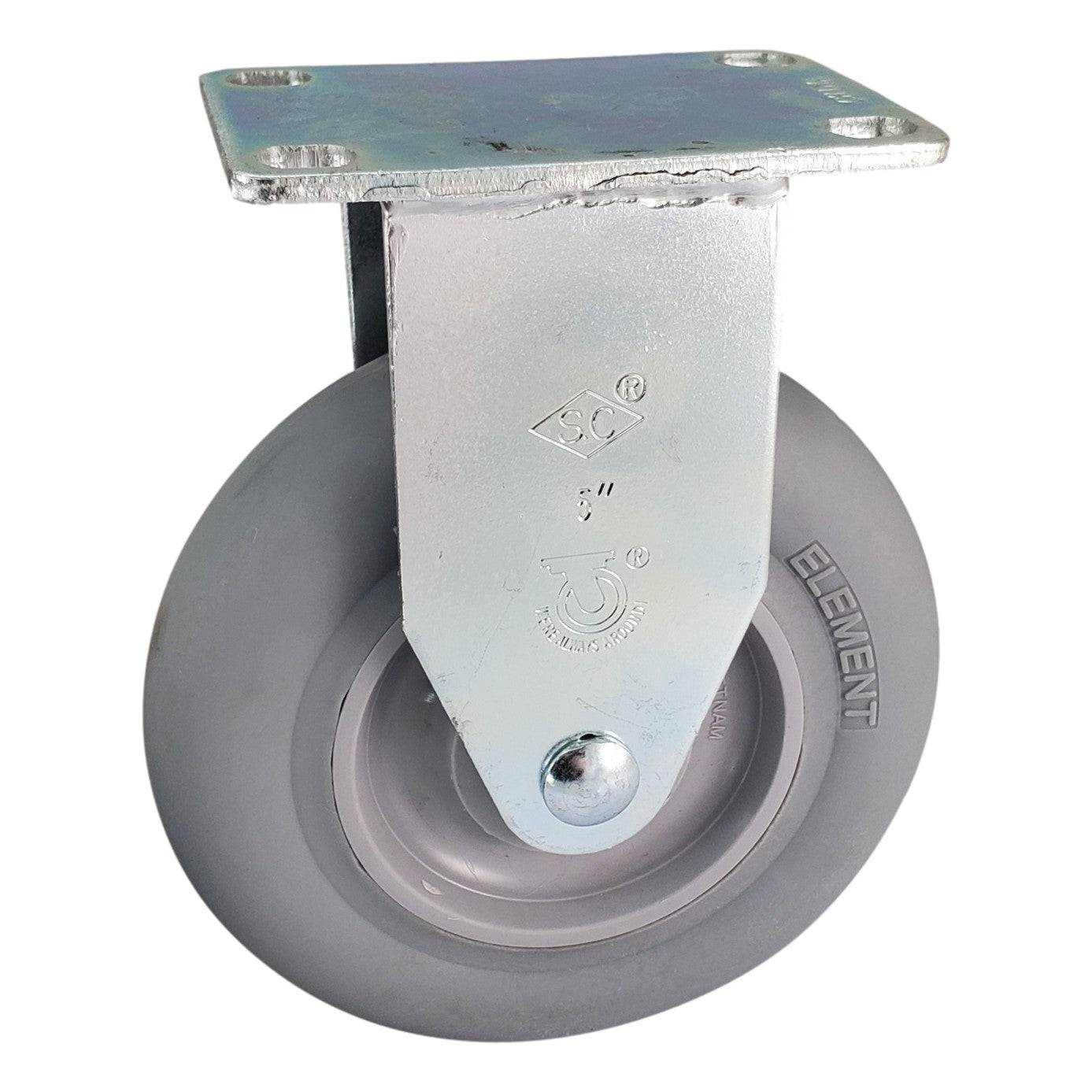

5" x 1-1/4" Element Wheel Rigid Caster
The Element wheel is quiet rolling providing a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a rounded tread, this wheel works well on both carpet and hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds. When used with a delrin bearing, this wheel is water-resistant and can be used in wash-down applications.
Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Core: Polyolefin
Bearing: Annular Ball Bearing
Rig: Zinc-Plated Rigid Caster, 2-3/8" x 3-5/8" Mounting Plate
- Capacity: 250 Lbs.
- Color: Gray
- Durometer: Shore A 65 (+/-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 250 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core |
| Core Type | Polyolefin |
| Bearing Type | Annular Ball Bearing |
| Wheel Color | Gray |
| Overall Height | 6-1/8" |
| Swivel Radius | 3-7/8" |
| Mounting Plate | 2-5/8" x 3-3/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 65 (+/-5) |
| Temperature Range | -20° F to 180° F |
