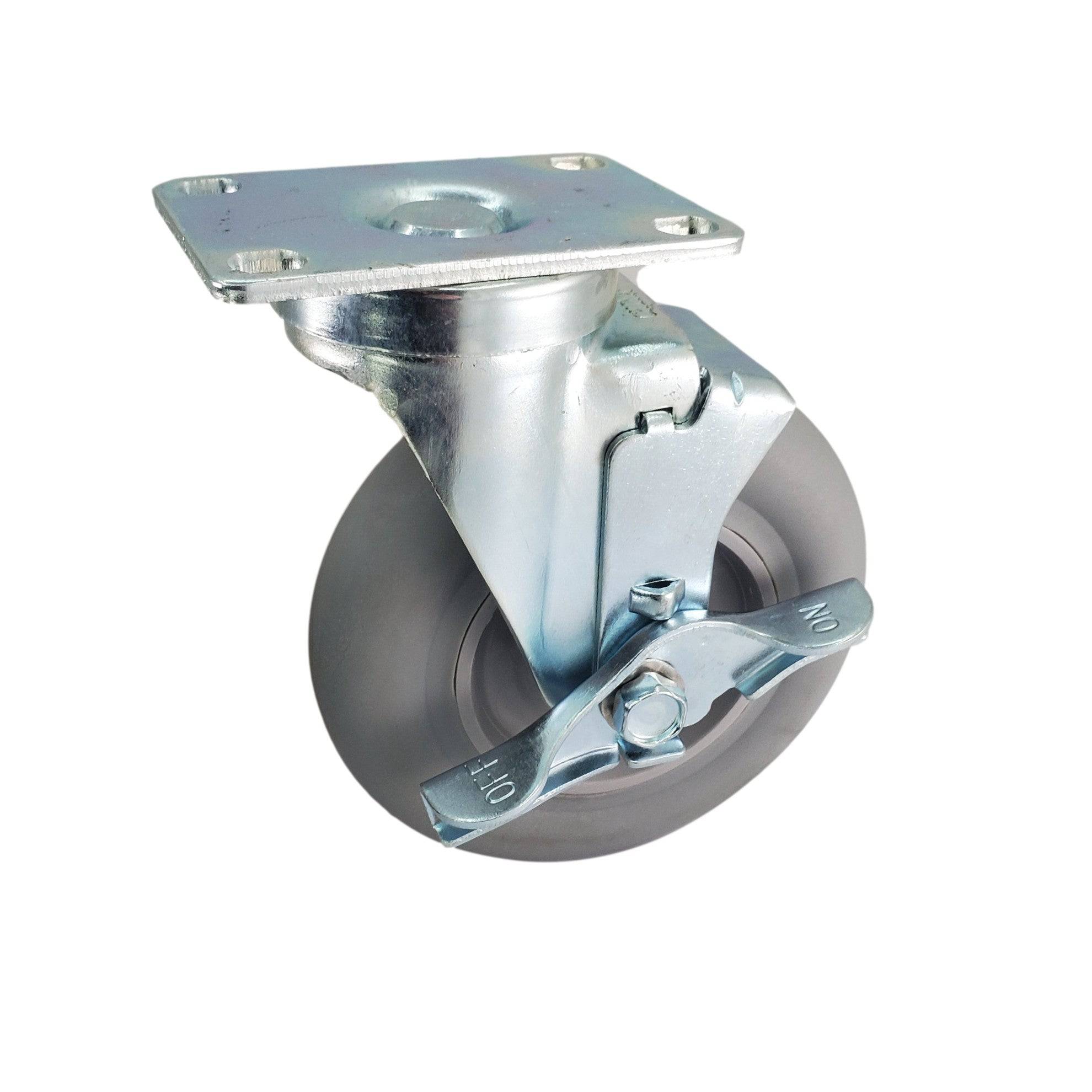

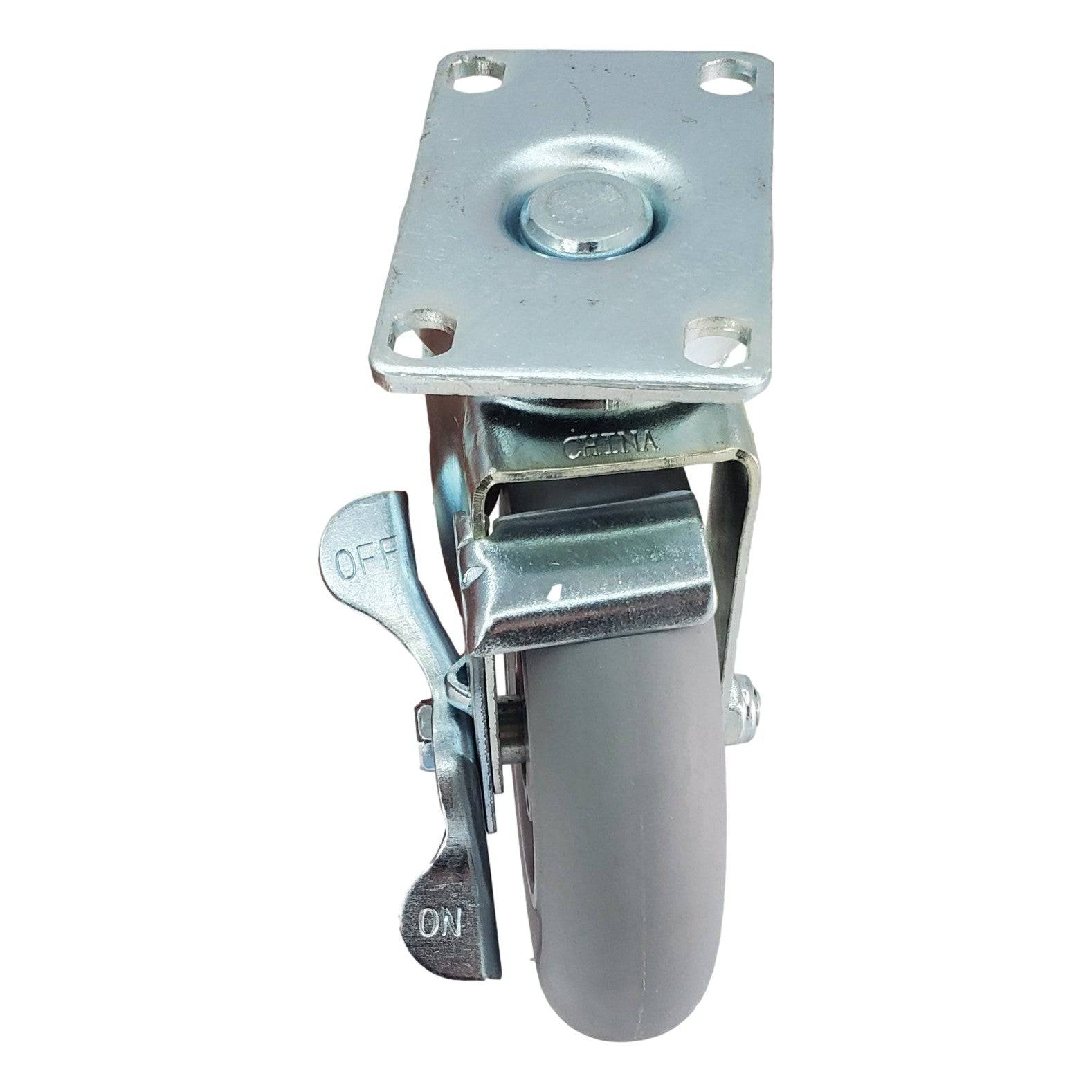

5" x 1-1/4" Element Wheel Swivel Caster w/Top Lock Brake - 250 lb. Cap

In stock
SKU: 75EL50GI4306TY
Regular price $25.54

Trusted By

5" x 1-1/4" Element Wheel Swivel Caster w/Top Lock Brake

The Element wheel is quiet rolling providing a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a rounded tread, this wheel works well on both carpet and hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds. When used with a delrin bearing, this wheel is water-resistant and can be used in wash-down applications.

Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core

Core: Polyolefin

Bearing: Annular Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-5/8" x 3-3/8" Mounting Plate, Top Lock Brake

  • Capacity: 250 Lbs.
  • Color: Gray
  • Durometer: Shore A 65 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 250 Lbs.
Wheel Diameter 5"
Tread Width 1-1/4"
Tread Type Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Core Type Polyolefin
Bearing Type Annular Ball Bearing
Wheel Color Gray
Overall Height 6-1/8"
Swivel Radius 3-7/8"
Mounting Plate 2-5/8" x 3-3/8"
Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
Lock Type  Top Lock Brake
Durometer Shore A 65 (+/-5)
Temperature Range -20° F to 180° F
