5" x 1-1/4" Hard Rubber Wheel Swivel Caster w/Total Lock Brake- 350 lbs. Capacity

In stock
SKU: T3HR50GB4206YY
Regular price $21.21
Est. Ship Date: Thursday, May 2nd
Trusted By

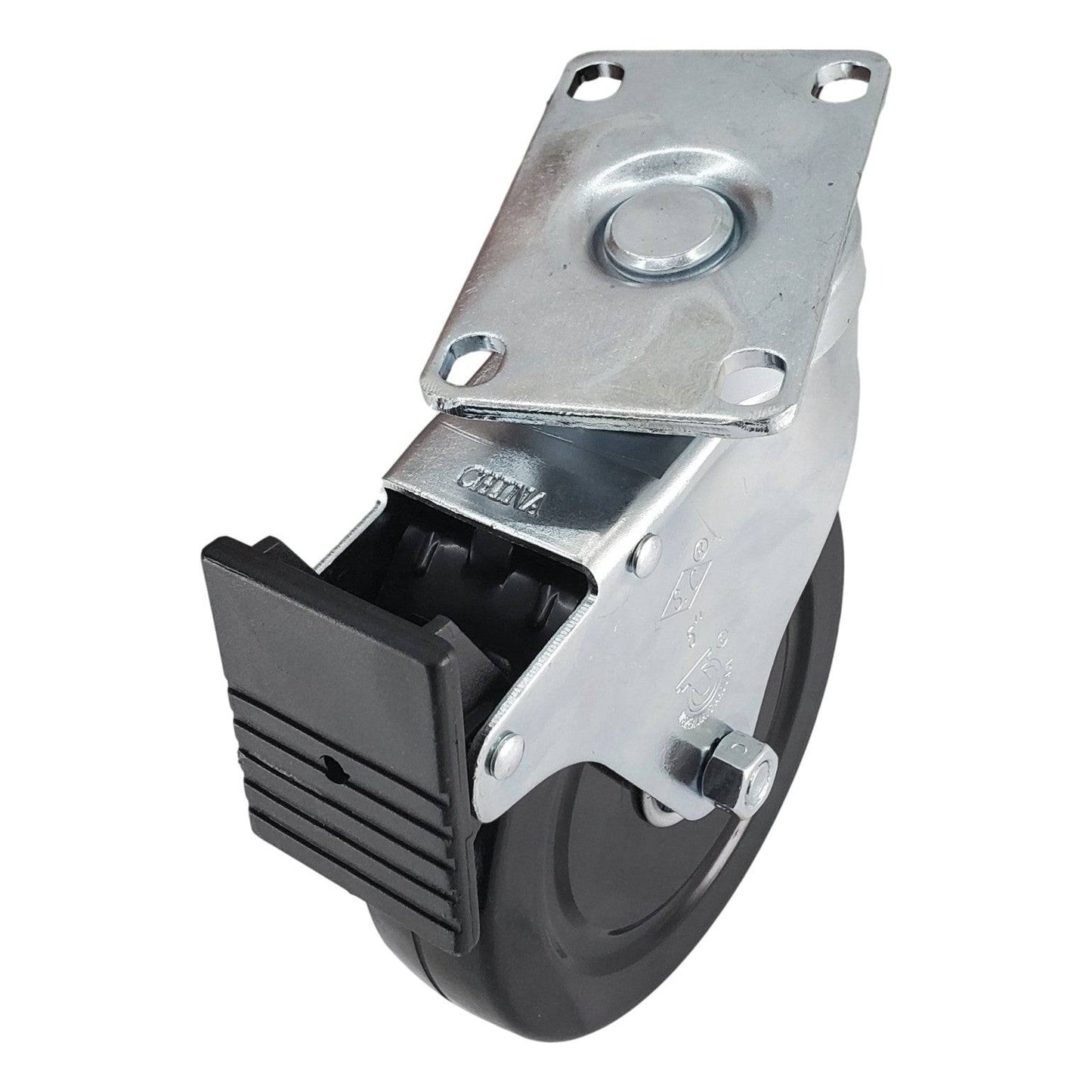

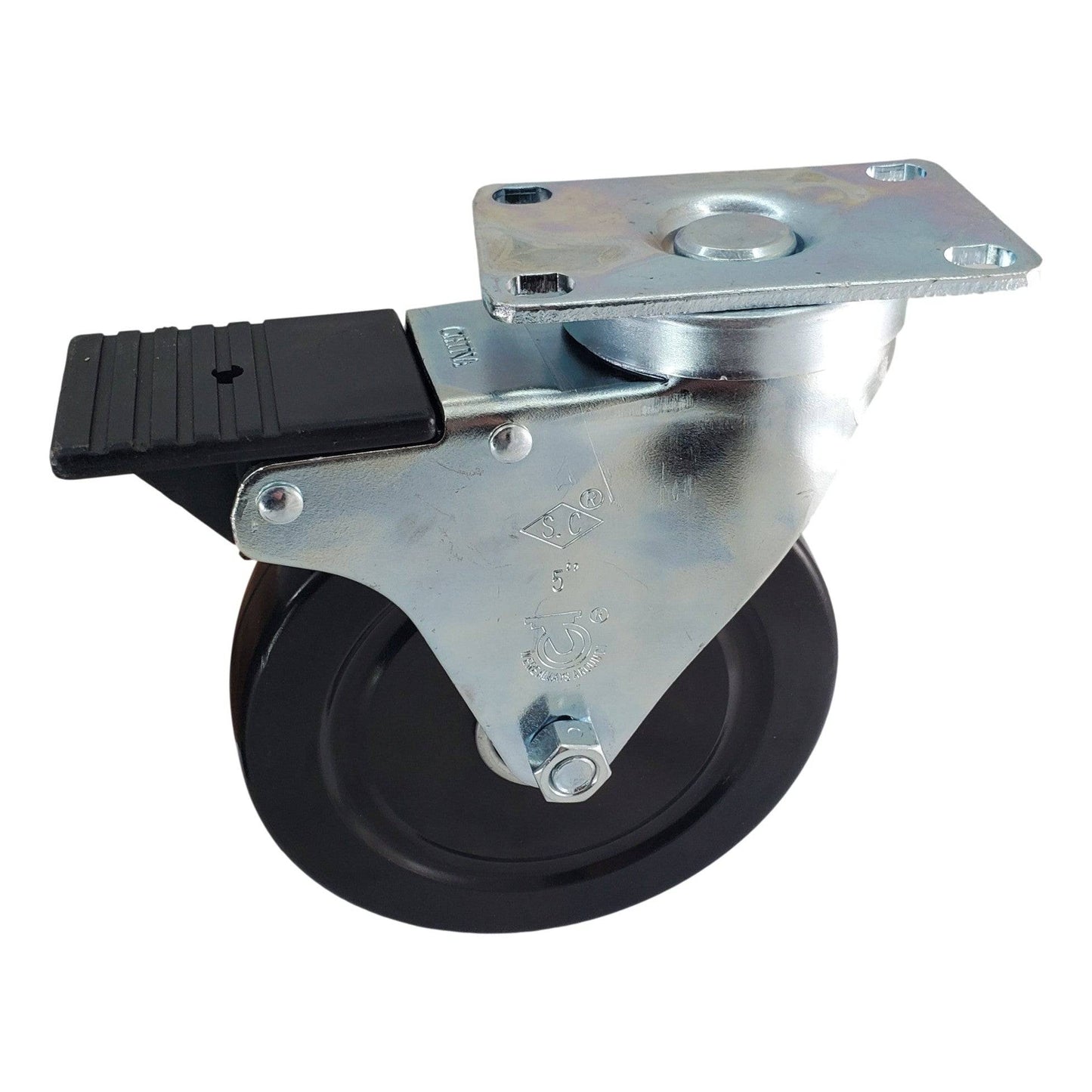

5" x 1-1/4" Hard Rubber Wheel Swivel Caster w/Total Lock Brake

The hard rubber wheel is a great option when a little bit of cushion is needed at a low cost.

Tread & Core: Solid Hard Rubber

Bearing: Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake

  • Capacity: 350 Lbs.
  • Color: Black
  • Durometer: Shore D 55 (+/-5)
  • Temperature Range: -40° F to 160° F
Load Capacity  350 Lbs.
Wheel Diameter  5"
Tread Width  1-1/4"
Tread Type  Solid Hard Rubber
Core Type  Solid Hard Rubber
Bearing Type
Ball Bearing
Wheel Color
Black
Overall Height
6-1/8"
Swivel Radius
4"
Plate Size
2-3/8" x 3-5/8"
Bolt Hole Pattern
1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter  5/16"
Lock Type  Total Lock Brake
Durometer  Shore D 55 (+/-5)
Temperature Range  -40°F to 160°F
