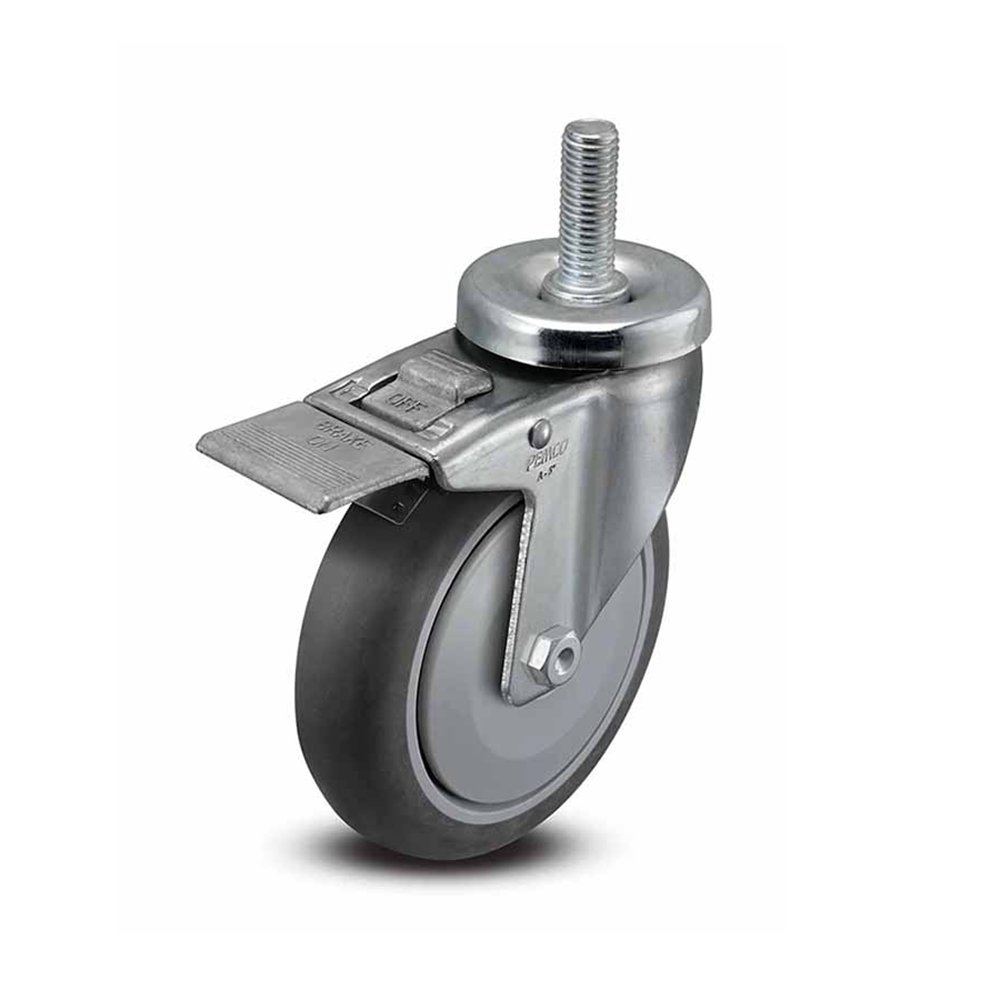

5" x 1-1/4" Light/Medium Duty Threaded Stem Caster, Total Lock, 300 lbs. Capacity
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
The caster is a stainless steel threaded stem caster with a total lock system which locks movement and rotation in all directions with a foot switch. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Non-Marking Thermo-Rubber
- Bearing: Precision Ball Bearing
- Stem: 3/4" - 10 x 4" metric threaded
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 3/4" - 10 x 4" metric threaded stem or adapter
- Loads within the listed 300 Lbs rating
- Equipment using the listed 3/4" - 10 x 4" metric threaded stem or adapter
- Applications needing the listed Polyolefin Thermo-Rubber, Non-Marking wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 3/4" - 10 x 4" metric threaded stem or adapter, or a different brake or lock style is required instead of Total Lock.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, stem size, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | Thermo-Rubber |
| Core Type | Polyolefin |
| Bearing Type | Precision Ball |
| Bore I.D. | 3/8" |
| Wheel Color | Grey/Grey |
| Overall Height | 7" |
| Stem Size | 3/4" - 10 x 4" |
| Lock Type | Total Lock |
| Durometer | Shore 75 (+/-5) |
| Temperature Range | -20°F to 180°F |
| Model / MPN | S7TP50GI44M1YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 1/2" NC13 x 2-3/4" stem or adapter.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock.
