5" x 1-1/4" Mold-On Rubber Aluminum Wheel Swivel Caster - 325 lbs. capacity
Couldn't load pickup availability
Trusted By

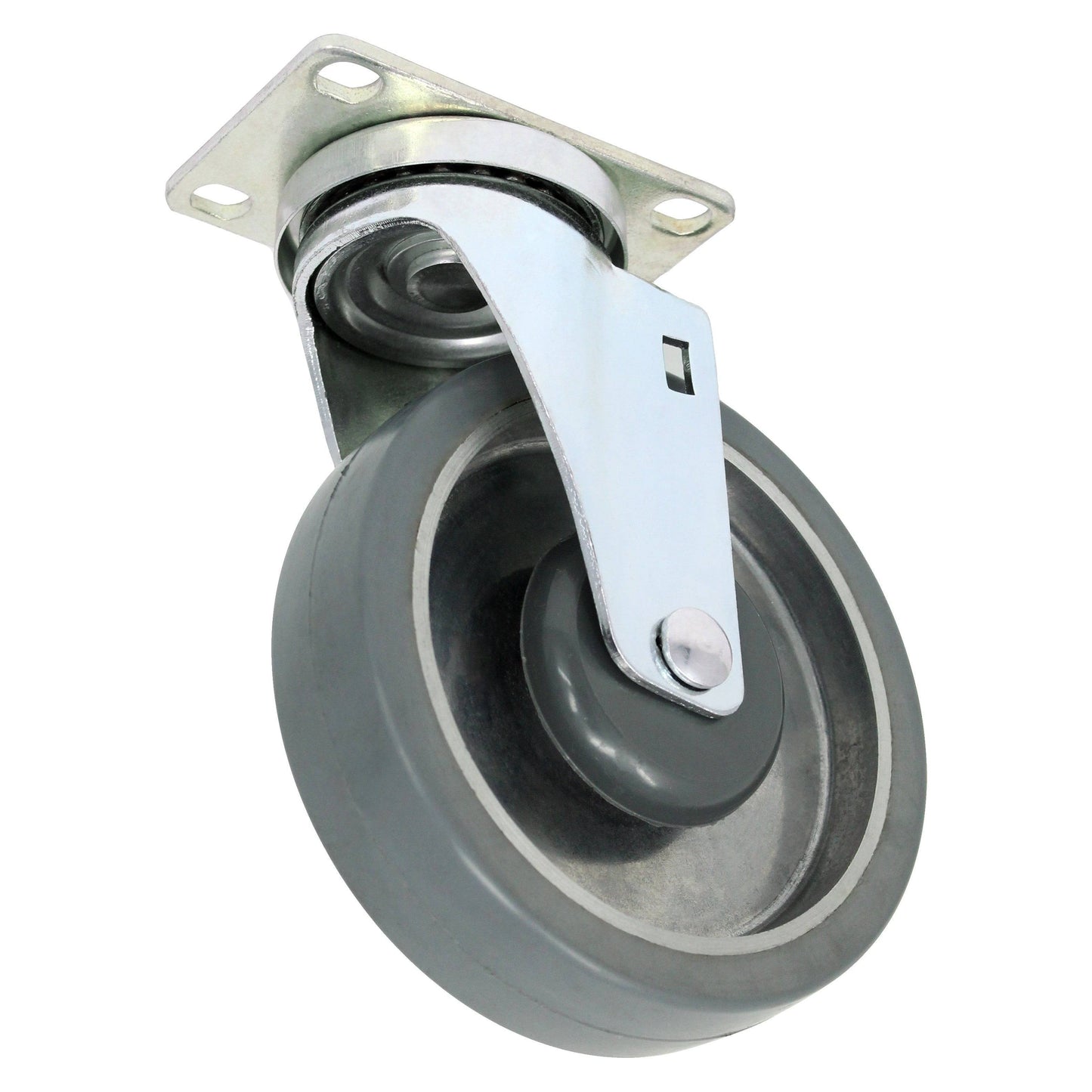

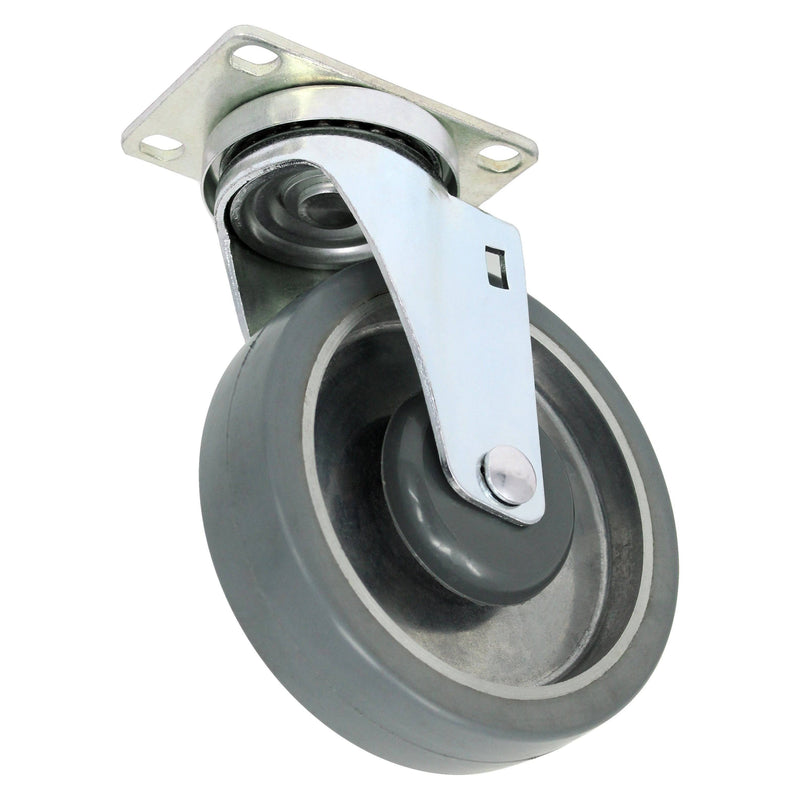

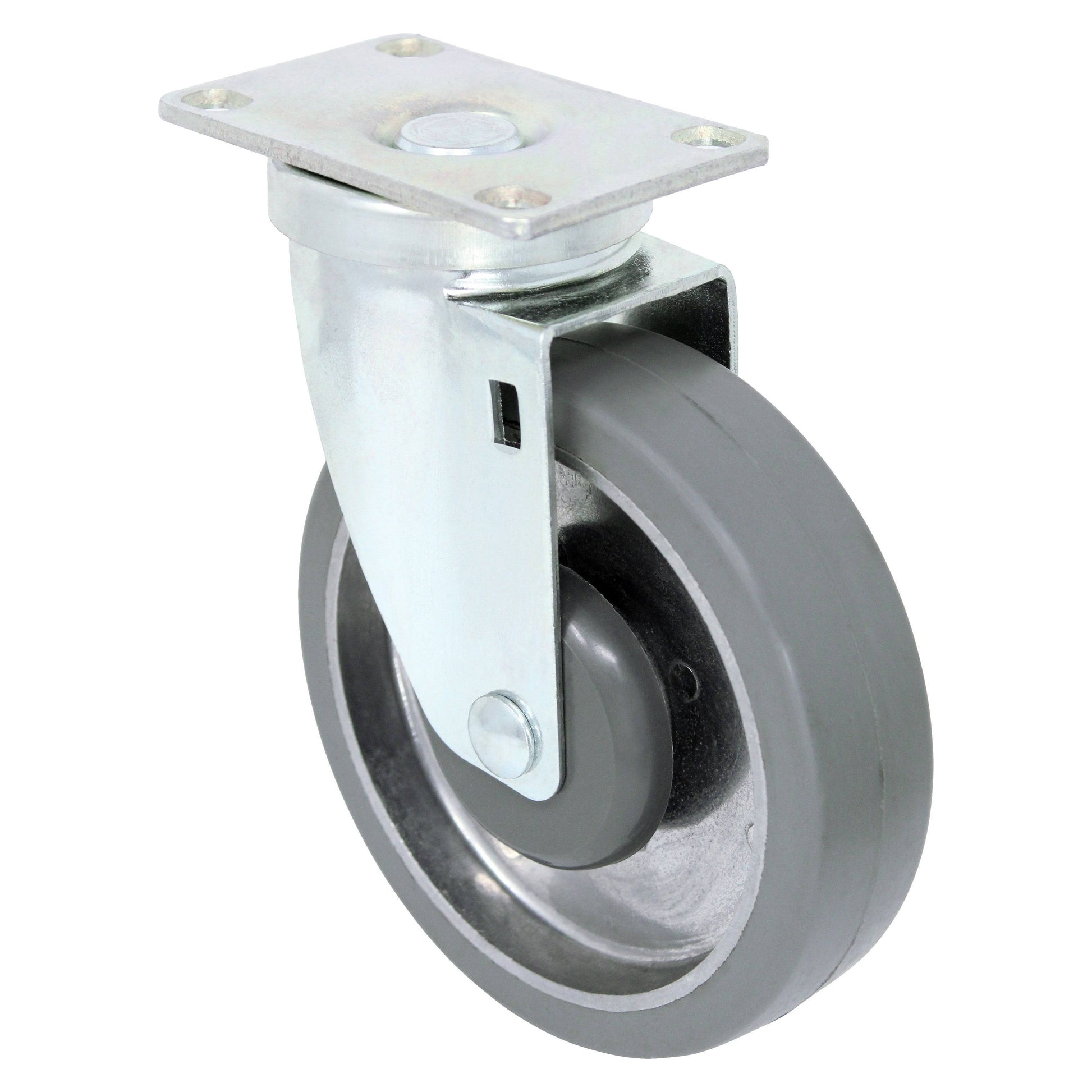

5" x 1-1/4" Mold on Rubber Aluminum Wheel Swivel Caster
The mold-on rubber aluminum wheel is a lightweight alternative to the traditional cast iron core, providing the same load capacity with a cushioned tread and an attractive look.
Tread: Rubber Vulcanized To Core
Core: Aluminum
Bearing: Annular Ball Bearing
Rig: Zinc-Plated Swivel Caster, 2-3/8" x 3-5/8" Mounting Plate
- Capacity: 325 Lbs.
- Color: Gray and Non-marking
- Durometer: Shore A 80 (+/-5)
- Temperature Range: -40° F to 160° F
| Load Capacity | 325 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | Rubber Vulcanized To Core |
| Core Type | Aluminum Core |
| Bearing Type | Annular Bearing w/ Thread Guards |
| Wheel Color | Gray |
| Overall Height | 6-3/16" |
| Swivel Radius | 3-13/32" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter |
5/16" |
| Durometer |
Shore A 80 (+/-5) |
| Temperature Range |
-40° F to 160° F |
