5" x 1-1/4" Nomadic Wheel Swivel Caster W/ Total Lock Brake - 325 lbs. capacity

In stock
SKU: T3NM50GI4306YY
Regular price $24.02

Trusted By

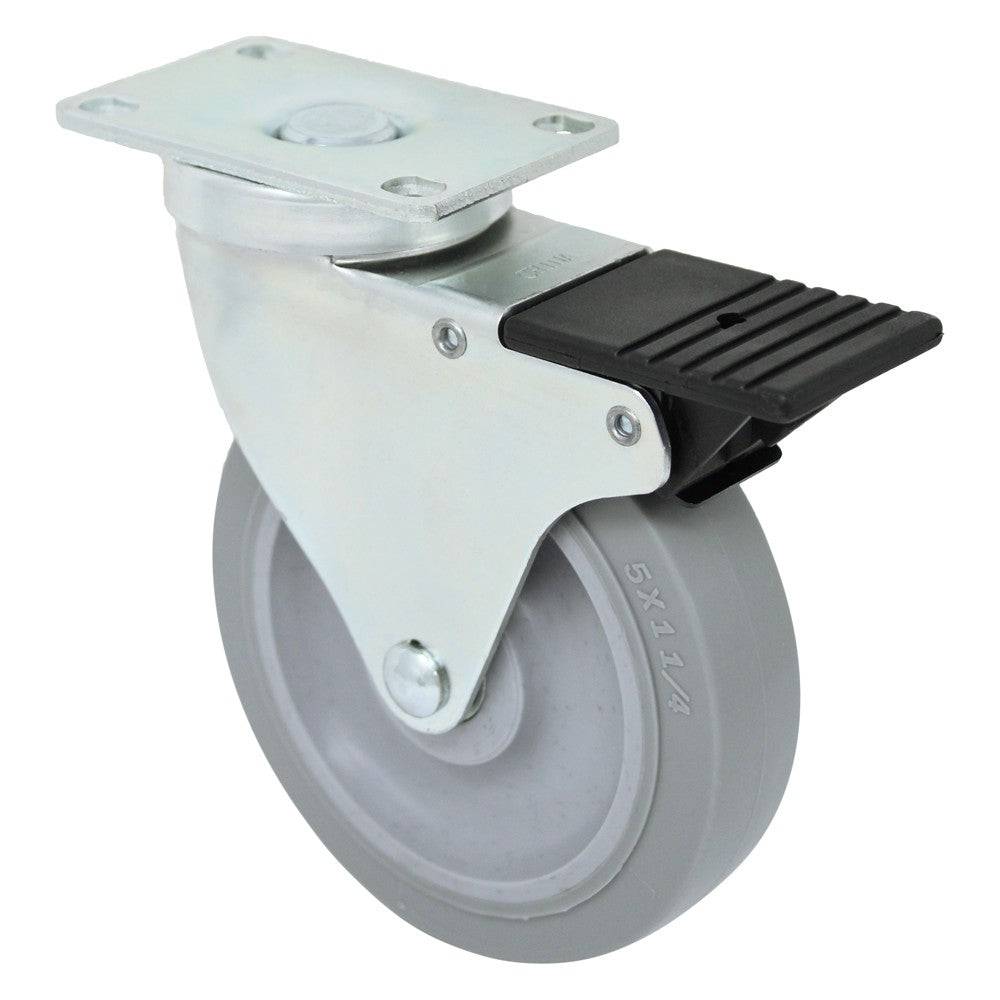

5" x 1-1/4" Nomadic Wheel Swivel Caster with Total Lock Brake

The Nomadic wheel is quiet rolling, provides a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a flat tread, this wheel works well on hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds.

Tread: High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To
Core

Core: Polyolefin

Bearing: Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake

  • Capacity: 325 Lbs.
  • Color: Gray
  • Durometer: Shore A 65 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 325 Lbs.
Wheel Diameter
5"
Tread Width
1-1/4"
Tread Type
High-Performance, Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Core Type
Polyolefin
Bearing Type
Ball Bearing
Wheel Color
Gray
Overall Height
6"
Swivel Radius
4"
Plate Size
"2-3/8" x 3-5/8"
Bolt Hole Pattern
1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
Lock Type  Total Lock Brake
Durometer Shore A 65 (+/-5)
Temperature Range  -20° F to 180° F
