5" x 1-1/4" Polyolefin Wheel Swivel Caster w/Top Lock Brake - 200 lbs. Capacity

In stock
SKU: 75PO50GB8206TY
Regular price $13.44
Est. Ship Date: Wednesday, April 24th
Trusted By

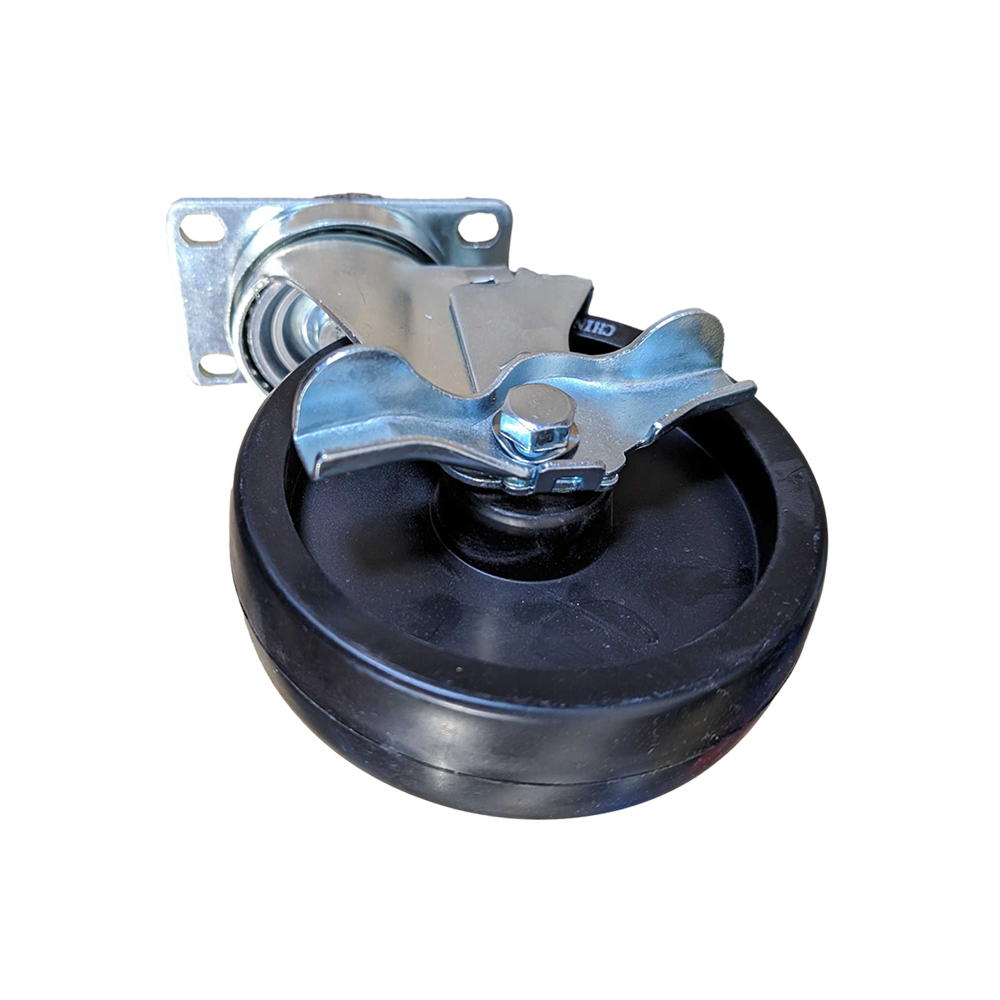

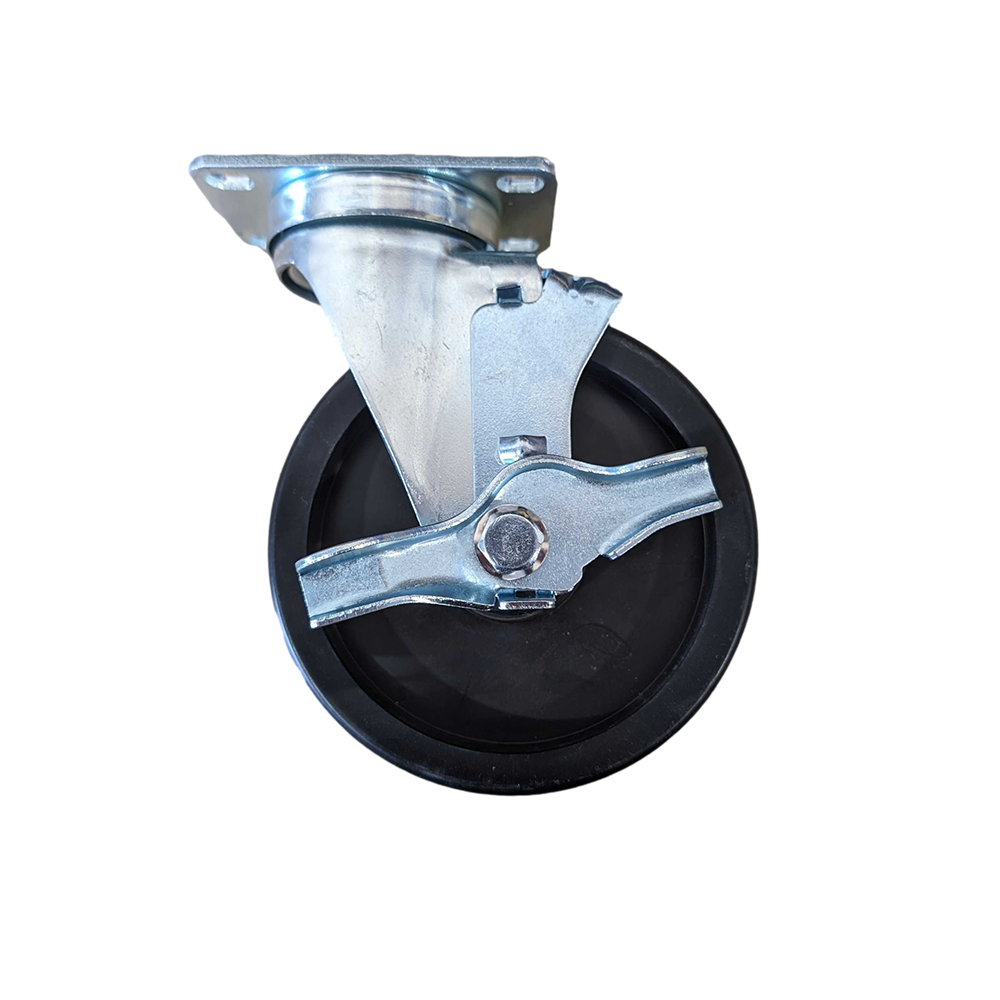

5" x 1-1/4" Polyolefin Wheel Swivel Caster w/ Top Lock Brake

The polyolefin wheel is economical and lightweight with a high load capacity. This hard wheel is highly resistant to organic solvents, oil, grease, and most chemicals, acids, and cleaning solutions.

Tread & Core: Solid Cast Polyolefin

Bearing: Plain Bore

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 3-1/8" x 4-1/8" Mounting Plate, Top Lock Brake

  • Capacity: 200 Lbs.
  • Color: Black, Non-Marking
  • Durometer: Shore D 70 (+/-5)
  • Temperature Range: -20°F to 180°F
Load Capacity  200 Lbs.
Wheel Diameter
5"
Tread Width
1-1/4"
Tread Type
Solid Cast Polyolefin
Core Type
Solid Cast Polyolefin
Bearing Type
Plain Bore
Wheel Color
Black, Non-Marking
Overall Height
6-1/8"
Swivel Radius
4"
Plate Size
3-1/8" x 4-1/8"
Bolt Hole Pattern
1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
Bolt Hole Diameter  3/8"
Lock Type  Top Lock Brake
Durometer  Shore D 70 (+/-5)
Temperature Range  -20°F to 180°F
