5" x 2" Ergolastomer Swivel Caster w/ Total-Lock Brake - 1,250 lbs. Cap.
Couldn't load pickup availability
Trusted By

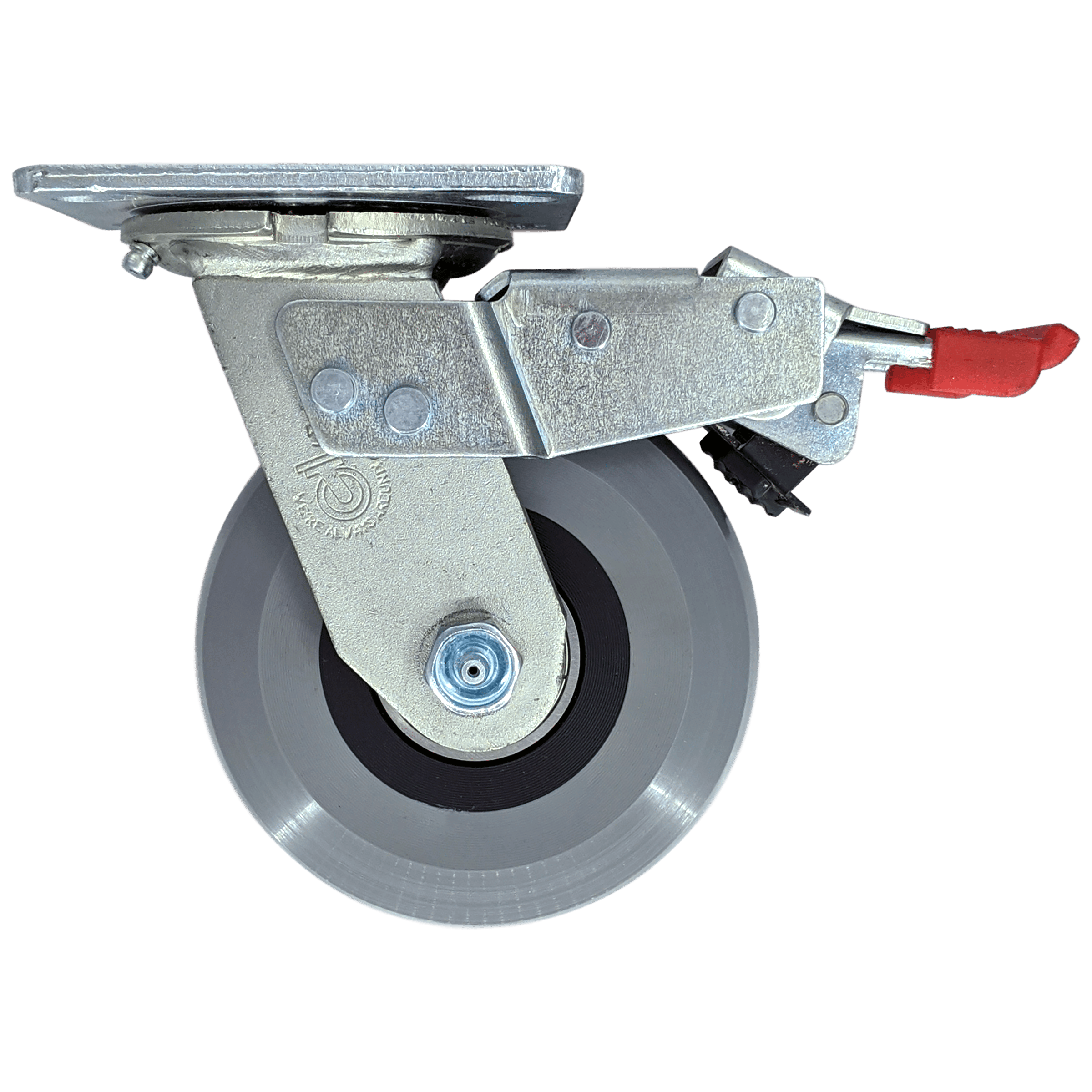

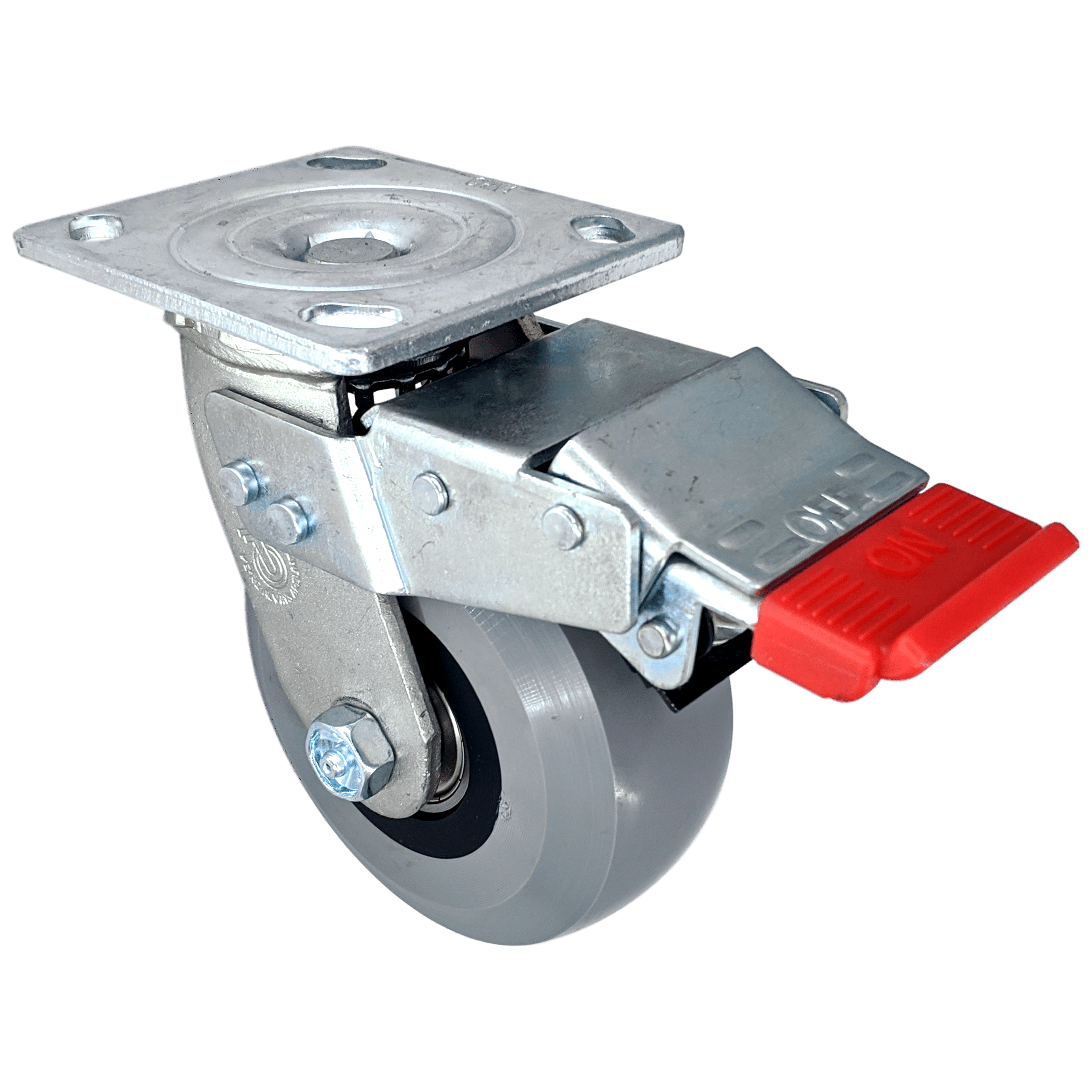

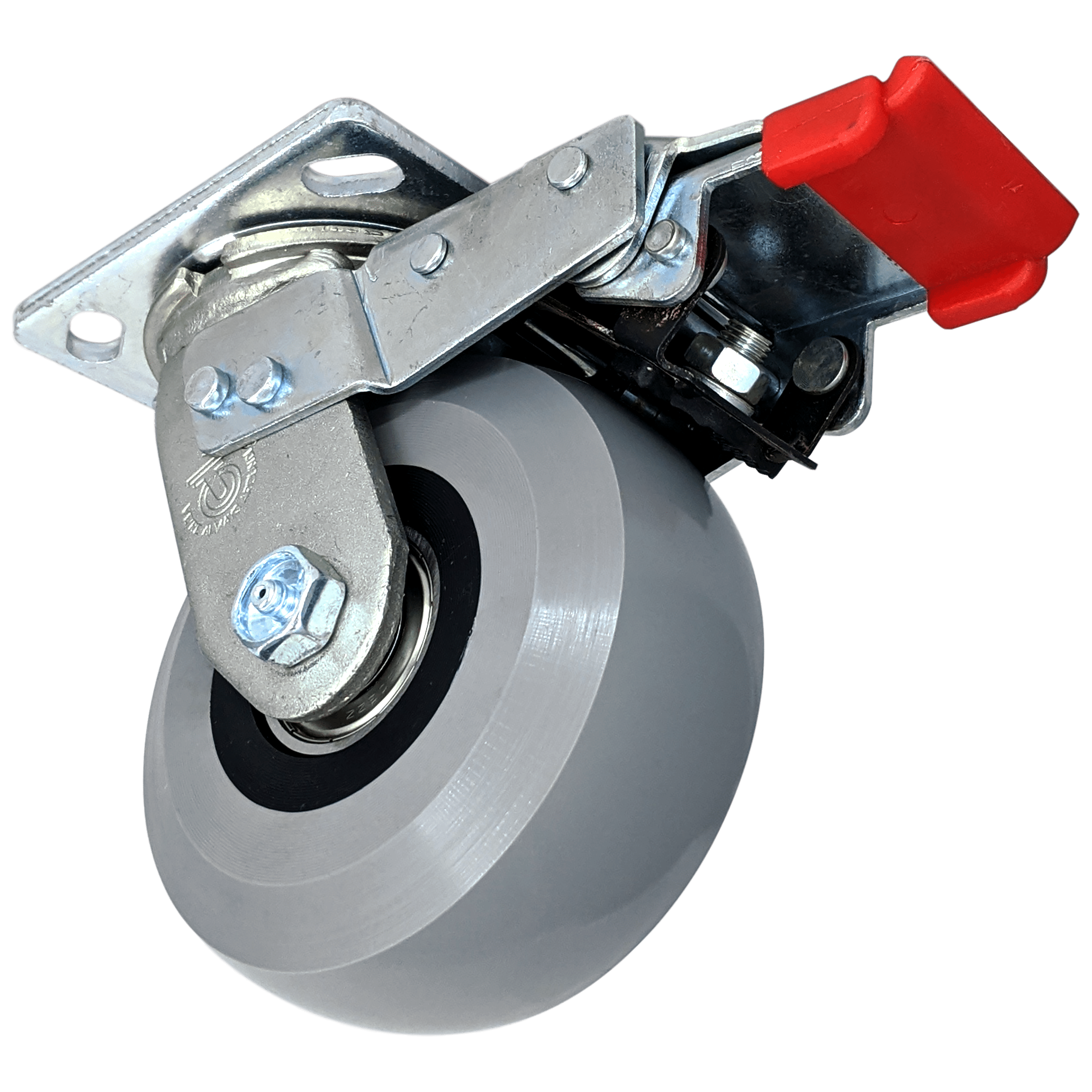

5" x 2" Ergolastomer Wheel Swivel Caster with Total-Lock Brake
The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.
Tread: Solid Cast Polyurethane Elastomer, Non-Marking
Core: Glass Filled Nylon Bearing Collar
Bearing: Sealed Precision Bearing
Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Total-Lock Brake
- Capacity: 1,250 Lbs.
- Color: Gray on Gray
- Durometer: Shore D 68 (+/-5)
- Temperature Range: -50° F to 180° F
| Load Capacity | 1,250 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Tread Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type | Glass Filled Nylon Bearing Collar |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Gray |
| Overall Height | 6-1/2" |
| Swivel Radius | 5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3 x 3" |
| Bolt Hole Diameter | 3/8" |
| Lock Type | Total Lock Brake |
| Durometer | Shore D 68 (+/-5) |
| Temperature Range | -50° F to 180° F |
