5" x 2" MaxRok Wheel Swivel Caster W/ Total Lock Brake - 1000 lbs. Capacity

In stock
SKU: FTMA50JB6017YY
Regular price $56.28
Est. Ship Date: Friday, December 15th
Trusted By

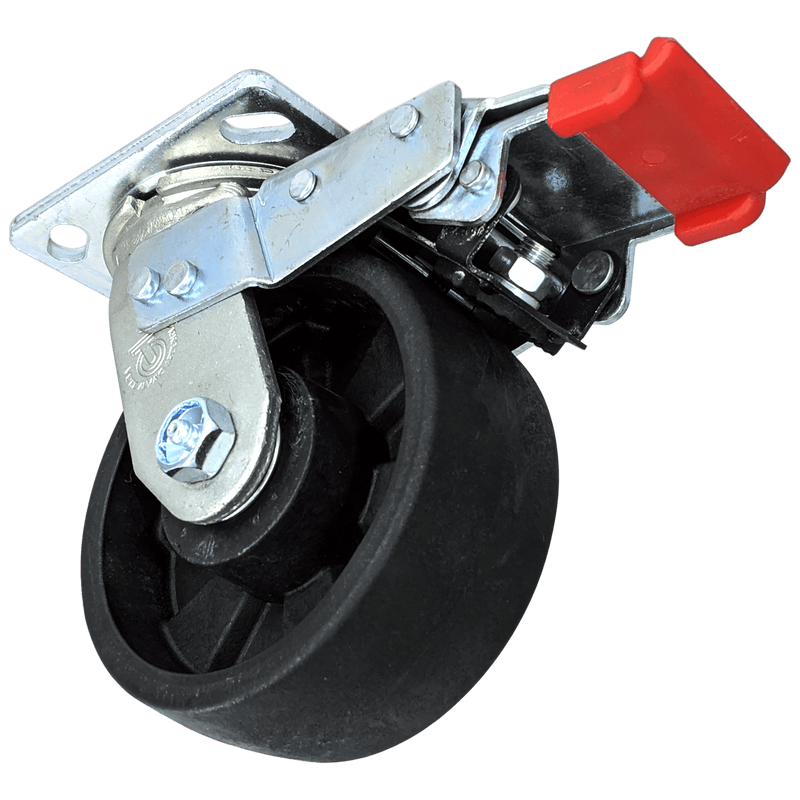

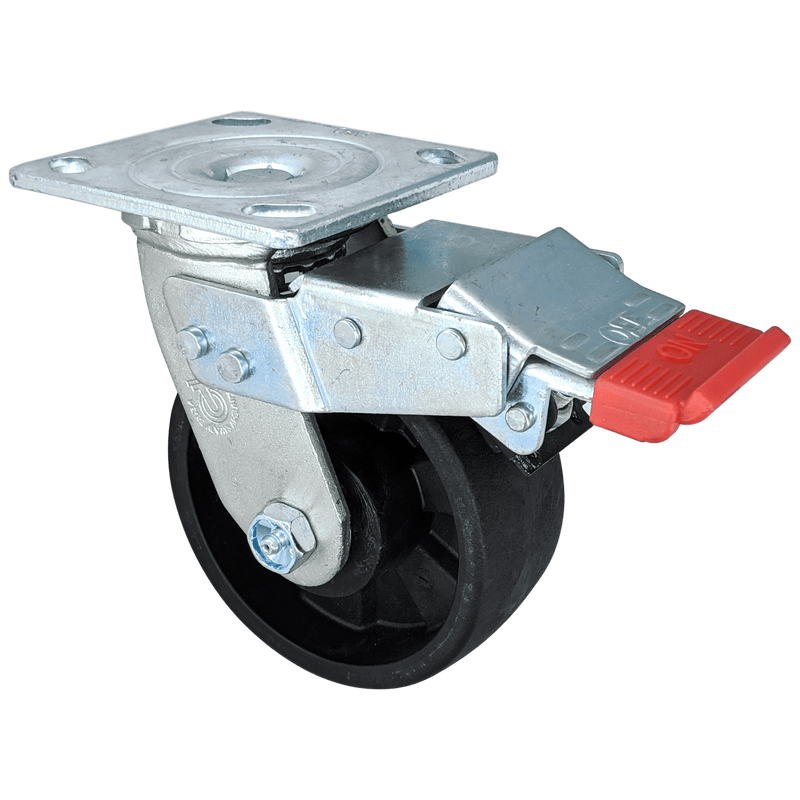

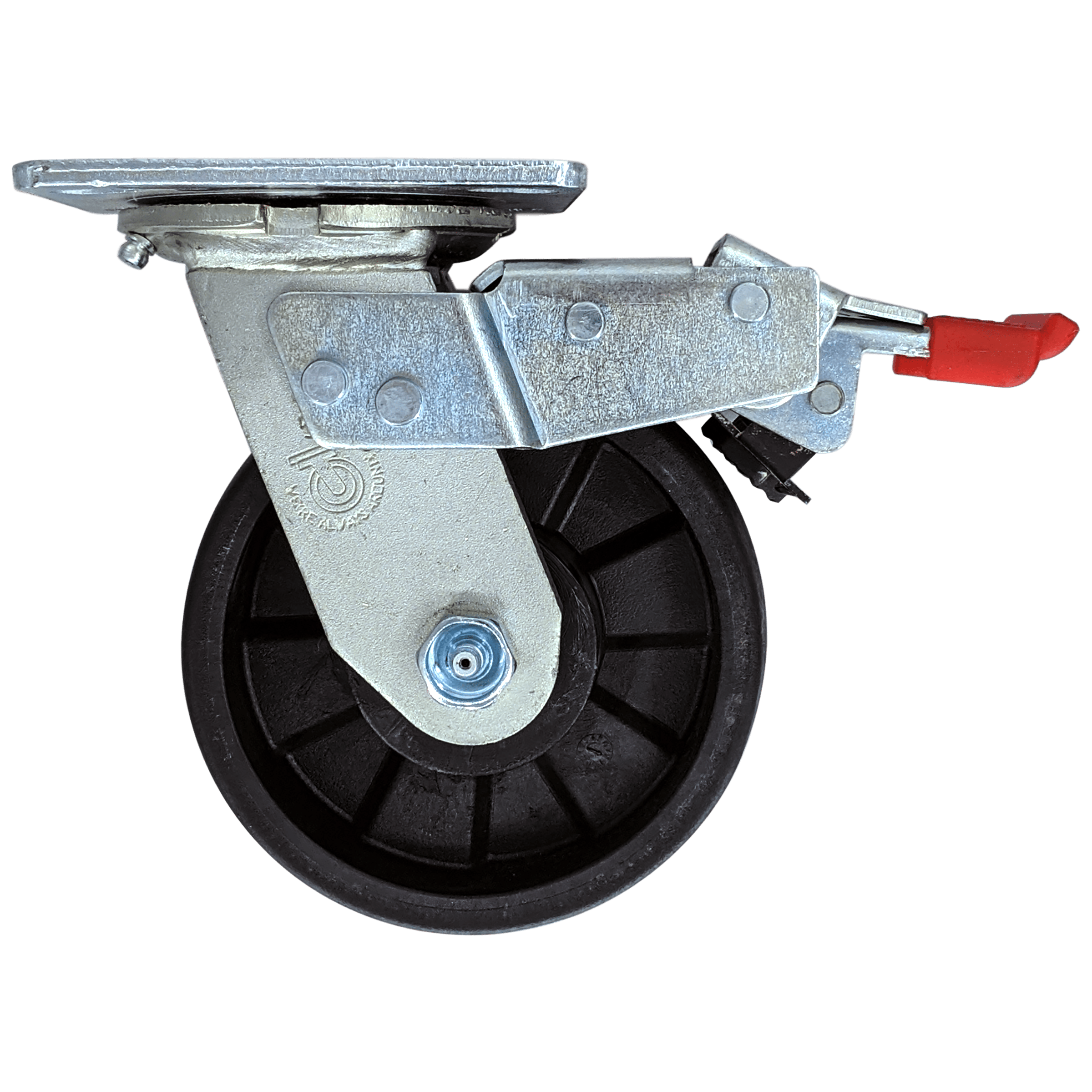

5" x 2" MaxRok Wheel Swivel Caster with Total Lock Brake

Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.

Tread & Core: Glass-Filled Nylon

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Dual-Pedal Lock Brake

  • Capacity: 1,000 Lbs.
  • Color: Black
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 190° F (up to 350° F, when used with all metallic bearings and high-temp grease)
Load Capacity  1,000 Lbs.
Wheel Diameter  5"
Tread Width  2"
Tread Type  Glass-Filled Nylon
Core Type
Glass-Filled Nylon
Bearing Type  Sealed Precision Bearing
Wheel Color
Black
Overall Height
6-1/2"
Swivel Radius
4"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type
Total Lock Brake
Durometer
Shore D 85 (+/-5)
Temperature Range
45° F to 190° F
