5" x 2" Mold-On Rubber Cast Swivel Caster W/ Total Lock Brake - 400 lbs. Cap.

In stock
SKU: FTRS50JB0417YY
Regular price $57.69
Est. Ship Date: Monday, March 4th
Trusted By

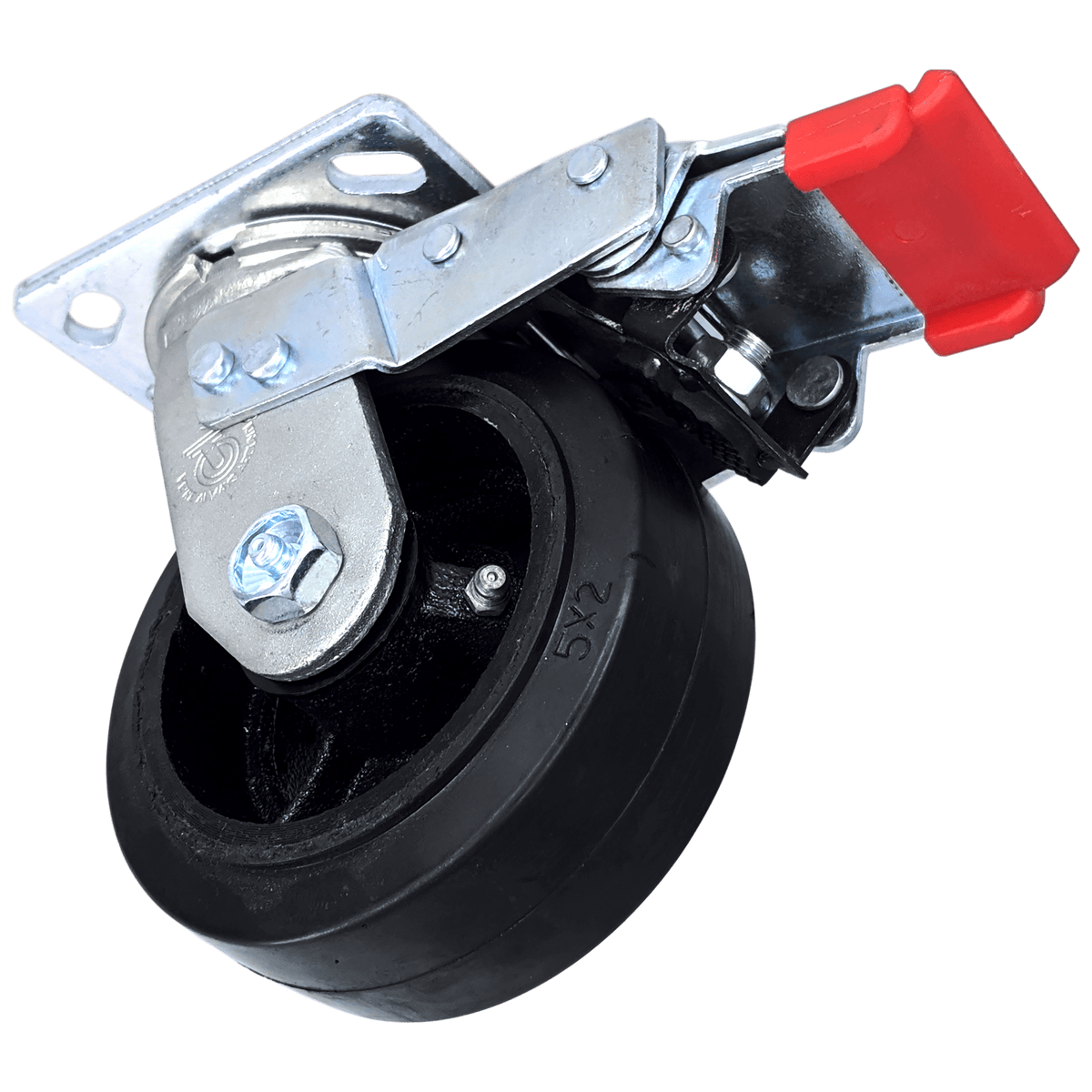

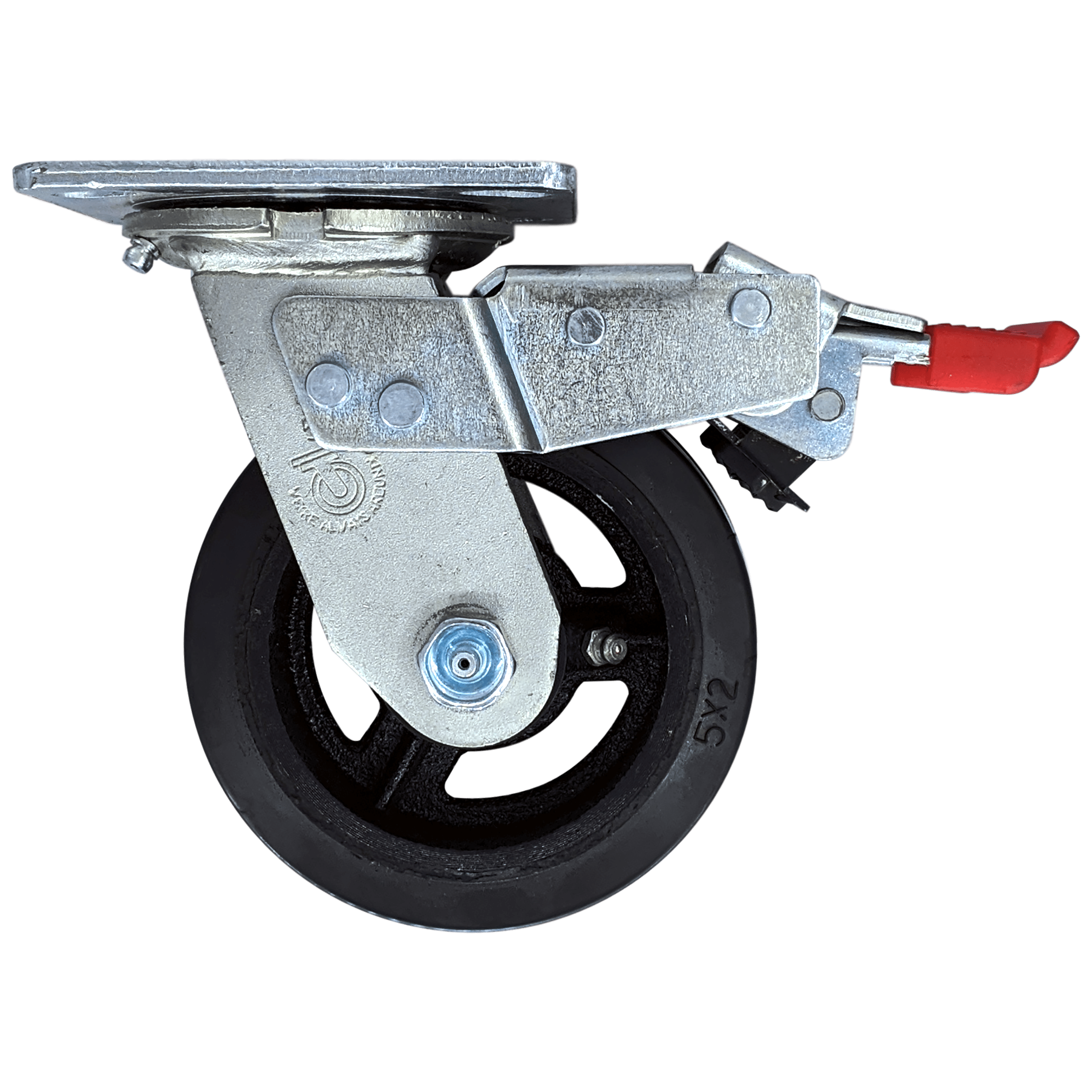

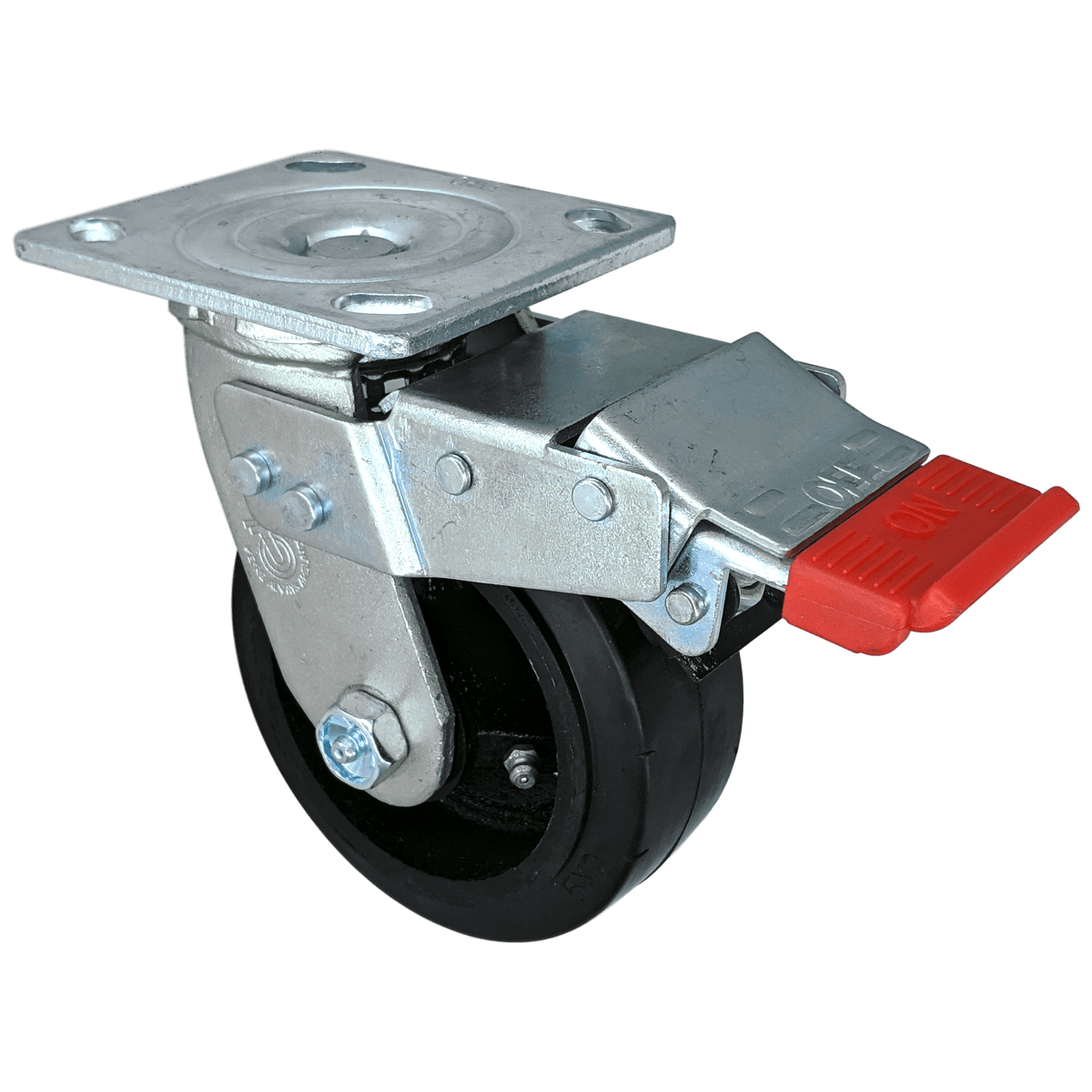

5" x 2" Mold On Rubber Cast Wheel Swivel Caster with Total Lock Brake

The mold-on rubber cast wheel is an economic wheel, providing cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.

Tread: Rubber, Vulcanized To Core

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Total Lock Brake

  • Capacity: 400 Lbs.
  • Color: Black
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  400 Lbs.
Wheel Diameter
5"
Tread Width
2"
Tread Type
Rubber, Vulcanized To Core
Core Type
Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Black
Overall Height
6-1/2"
Swivel Radius
6-1/4"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Total Lock Brake
Durometer  Shore A 95 (+/-5)
Temperature Range  -45° F to 180° F
