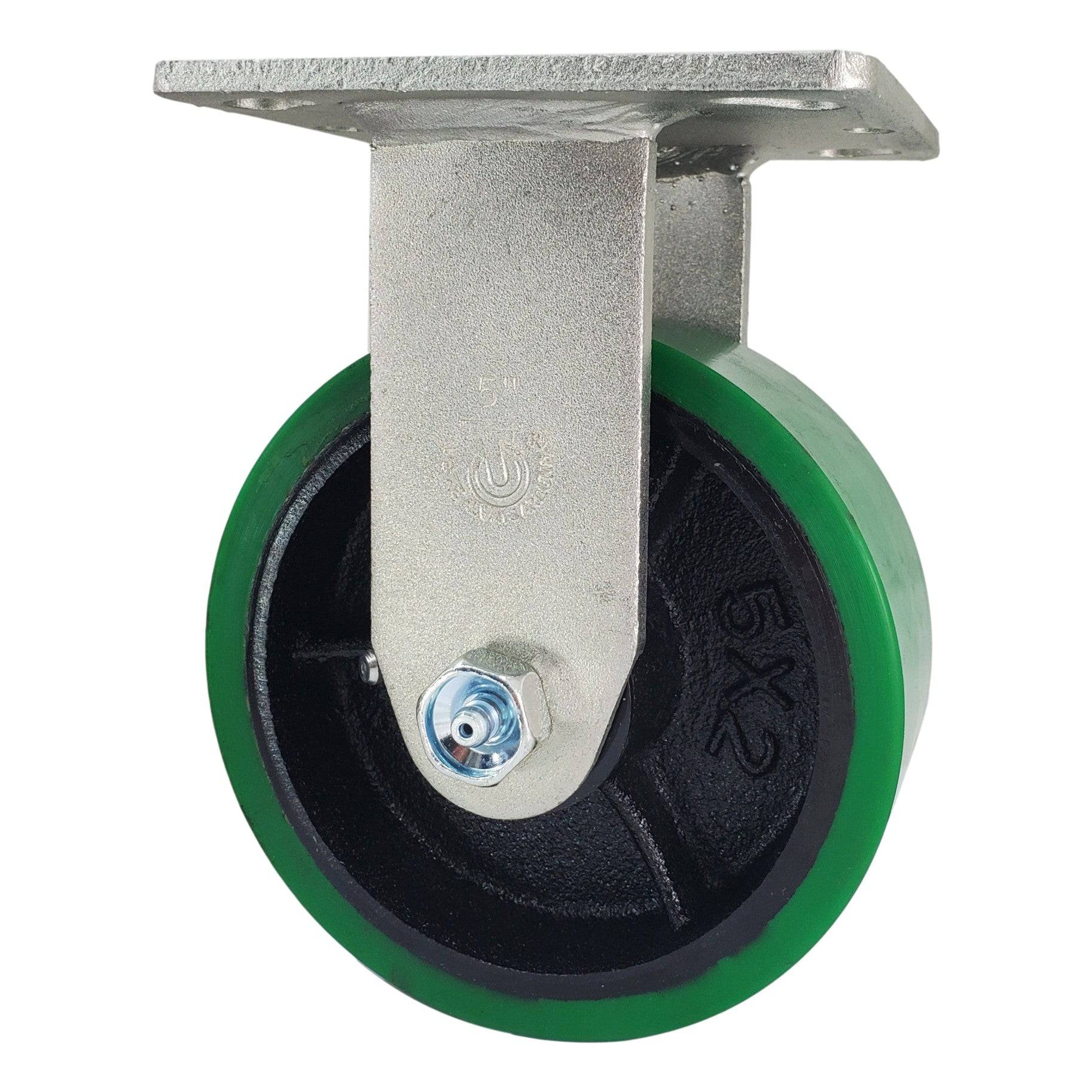

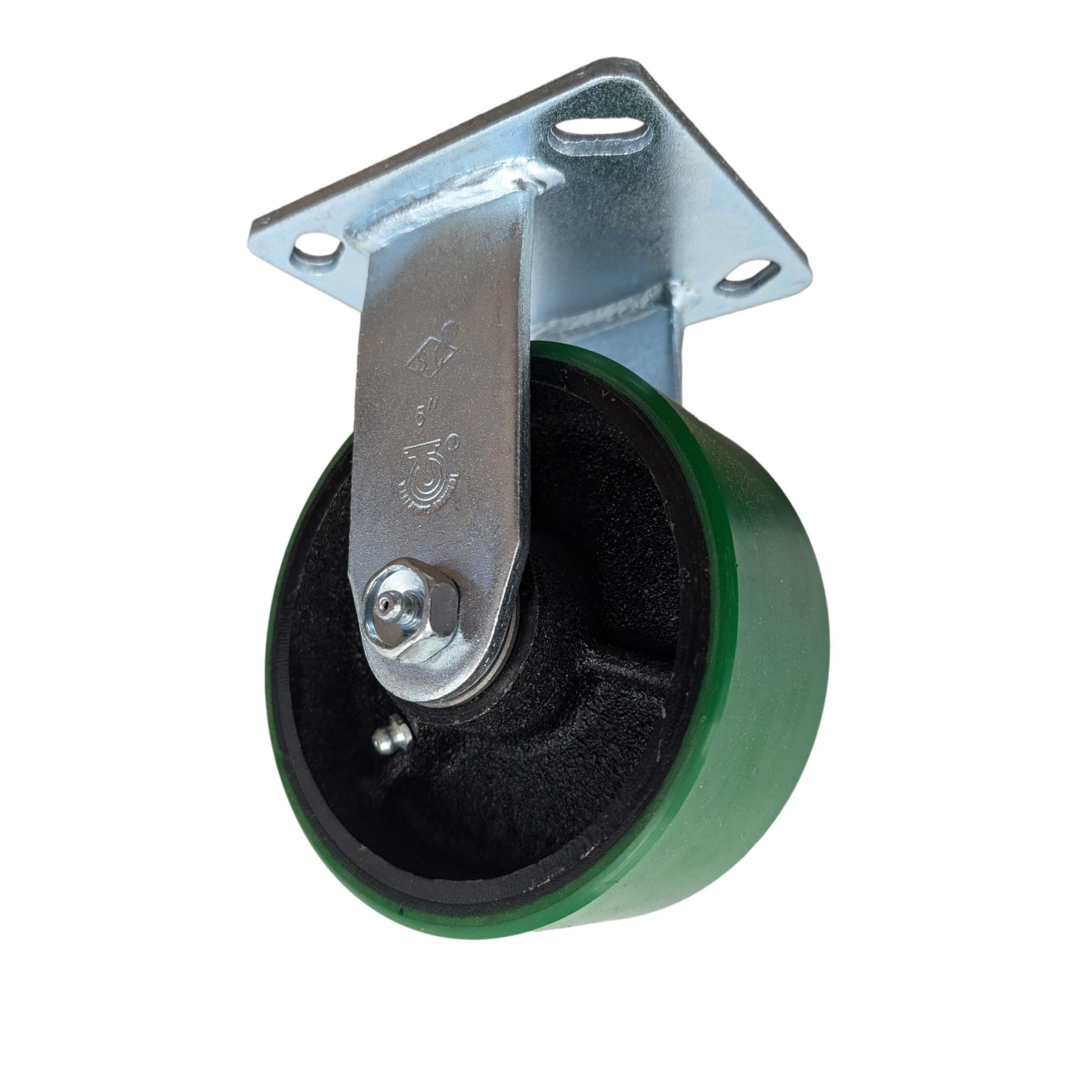

5" x 2" Polyon Cast Wheel Rigid Caster - 1100 lbs. Capacity

In stock
SKU: 28PU50JG0417YY
Regular price $33.72

Trusted By

5" x 2" Polyon Cast Wheel Rigid Caster

Polyurethane elastomer tread chemically bonded to a cast iron core. These wheels are somewhat heavy and are ideal for warehouses with concrete and hardwood flooring.

Tread: Polyurethane Elastomer

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Rigid Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,100 Lbs.
  • Color: Green and Black
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  1,100 Lbs.
Wheel Diameter
5"
Tread Width
2"
Tread Type
Polyurethane Elastomer
Core Type
Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Green and Black
Overall Height
6-1/2"
Swivel Radius
4"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer  Shore A 95 (+/-5)
Temperature Range  -40° F to 180° F
