5" x 2" Semi-Steel Wheel Swivel Caster w/ Total Lock Brake - 1000 lbs. Cap.
Couldn't load pickup availability
Trusted By

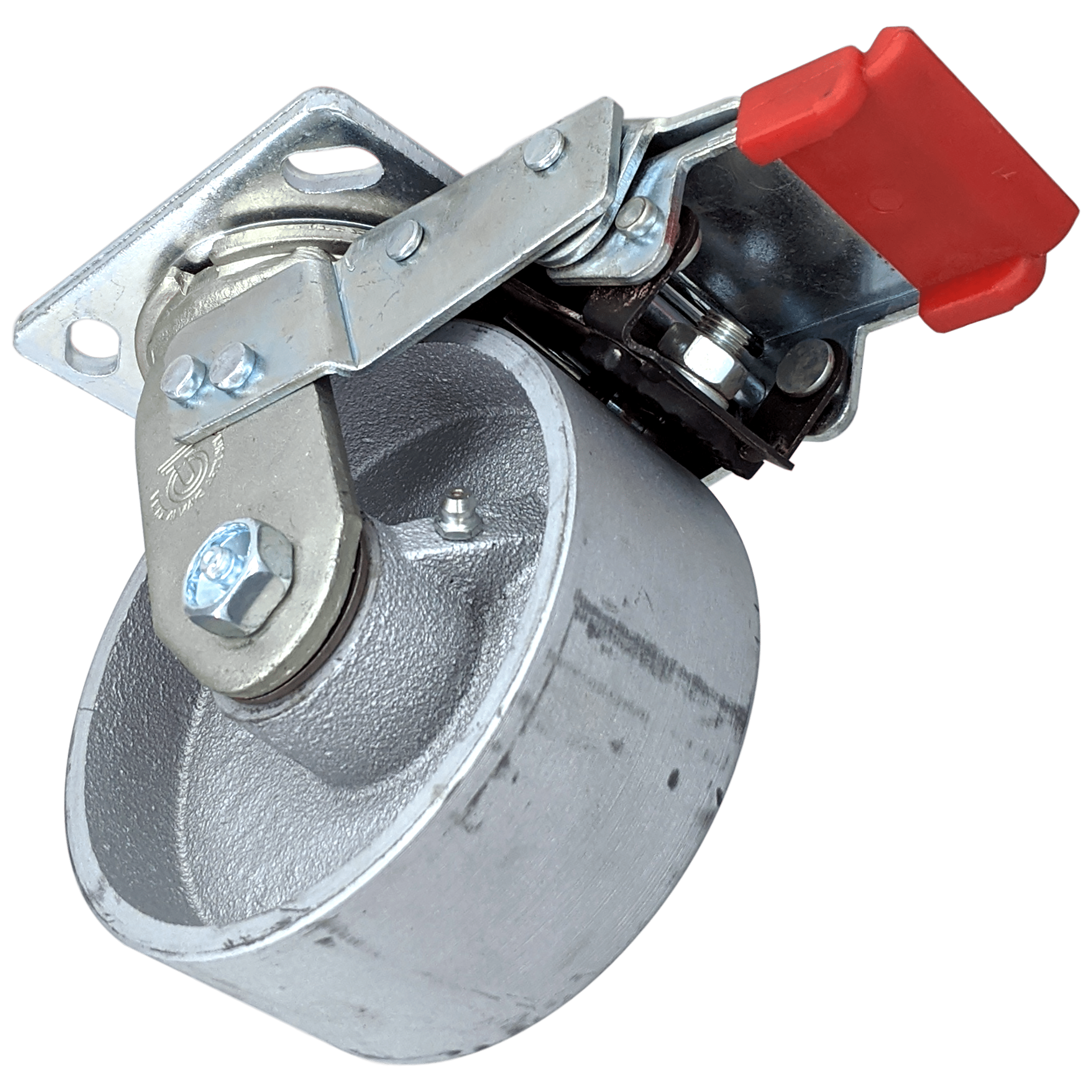

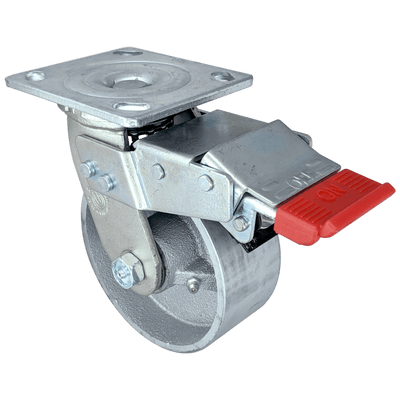

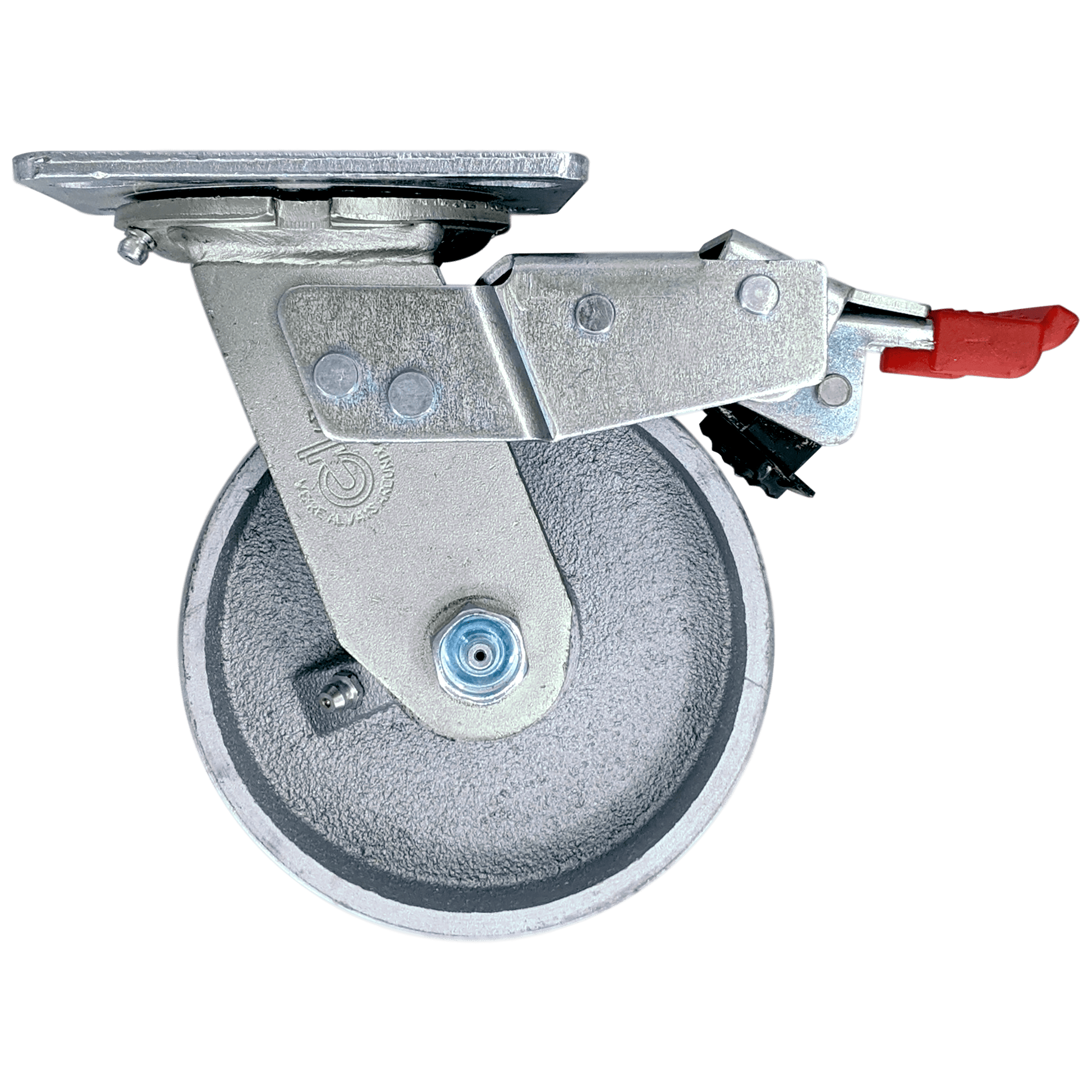

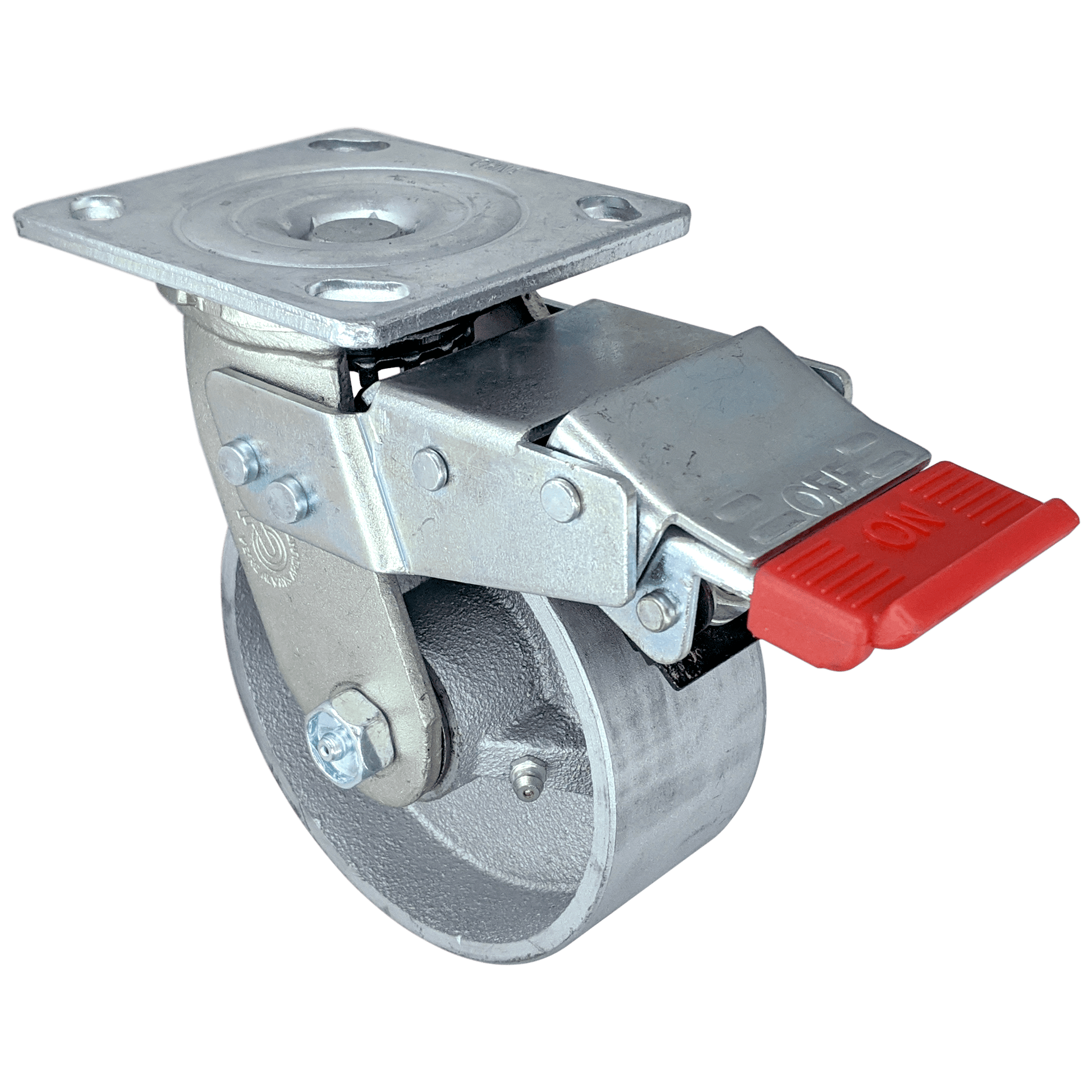

5" x 2" Semi-Steel Wheel Swivel Caster with Total Lock Brake
Semi-Steel offers a strong, durable, cost effective solution of heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy
Bearing: Roller Bearing
Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Total Lock Brake
- Capacity: 1,000 Lbs.
- Color: Silver
- Tensile Strength: 30,000 PSI
- Hardness: Brinell 145
- Temperature Range: -40° F to 180° F
| Load Capacity | 1,000 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
2" |
| Tread Type | Steel Alloy |
| Core Type |
Steel Alloy |
| Bearing Type |
Roller Bearing |
| Wheel Color |
Silver |
| Overall Height |
6-1/2" |
| Swivel Radius |
6-1/4" |
| Plate Size |
4" x 4-1/2" |
| Bolt Hole Pattern |
2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter |
3/8" |
| Lock Type | Total Lock Brake |
| Tensile Strength |
30,000 PSI |
| Temperature Range | -45° F to 600° F |
