6" x 2-1/2" Ductile Steel V-Groove Wheel - 3500 Lbs. Capacity

In stock
SKU: DV60QT85
Regular price $98.13

Hub Length
Bearing Type
Trusted By

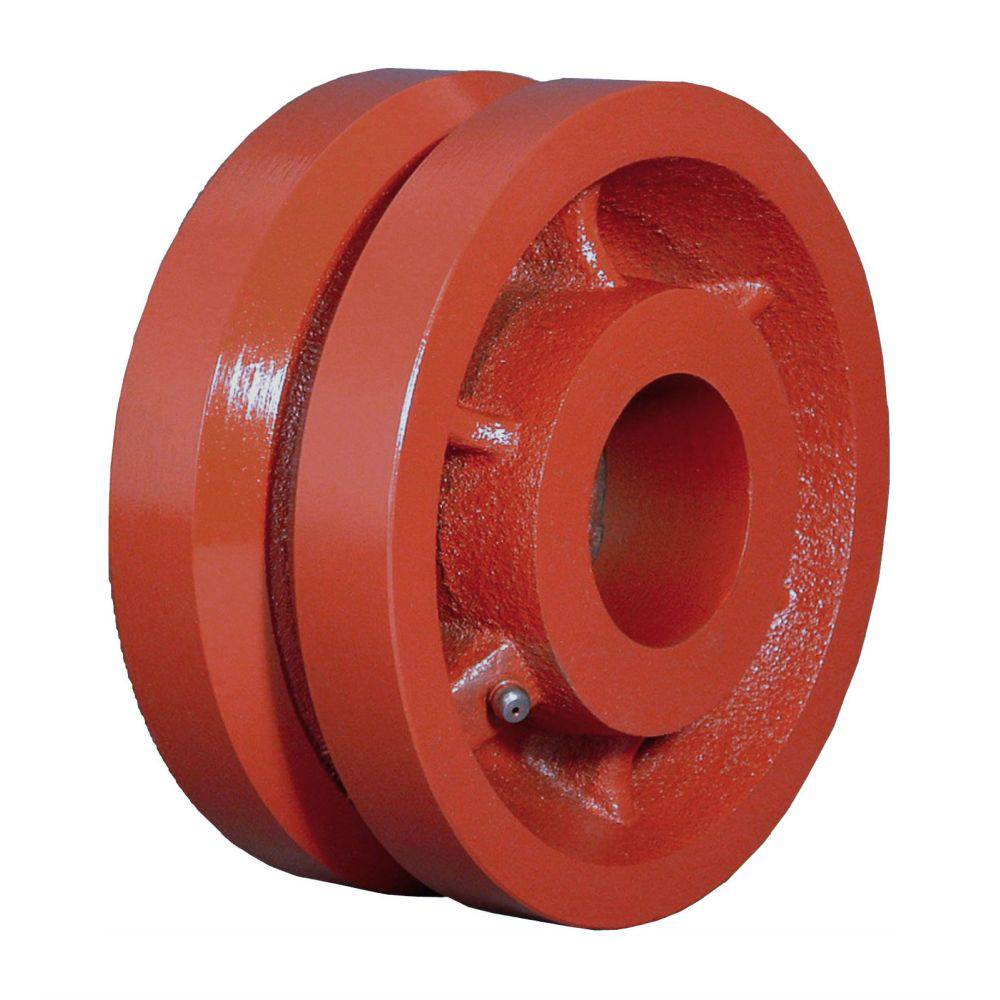

6" x 2-1/2" Ductile Steel V-Groove Wheel

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.

Tread: Solid cast ductile steel with 7/8" v-groove

Core: Solid Cast Ductile Steel

Bearing: Multiple Bearing Options

  • Capacity: 3,500 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  3,500 Lbs.
Wheel Diameter
6"
Tread Width
2-1/2"
Tread Type
Solid cast ductile steel with 7/8" v-groove
Core Type
Solid Cast Ductile Steel
Hub Length
-2-3/4"
-3-1/4"
Bearing Type
Multiple Bearing Options
Color  Red
Tensile Strength  45,000 PSI
Temperature Range  -45° F to 800° F
