6" x 2" Energy Ductile Steel Kingpinless Swivel Caster Heavy Duty 2000# Cap

In stock
SKU: 45CD60JR0417YY
Regular price $120.66
Est. Ship Date: Monday, June 3rd
Four Position Swivel Lock
Trusted By

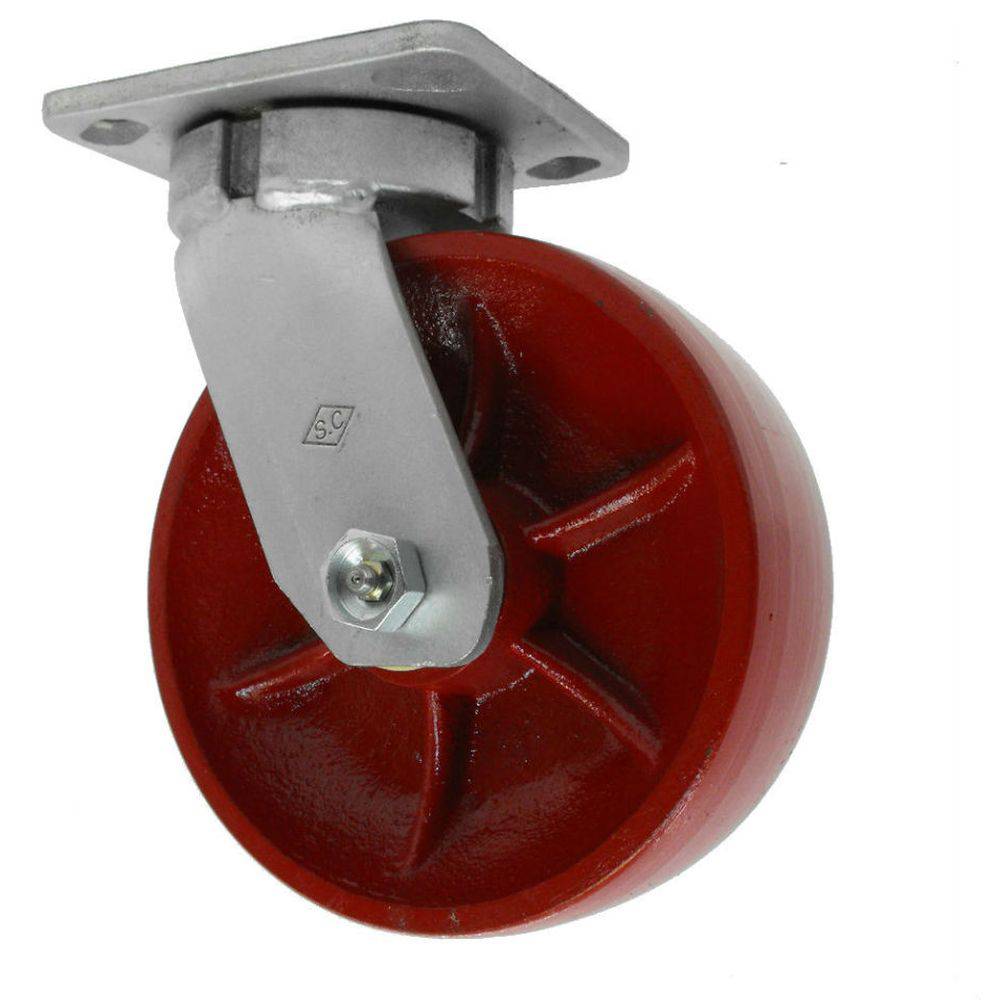

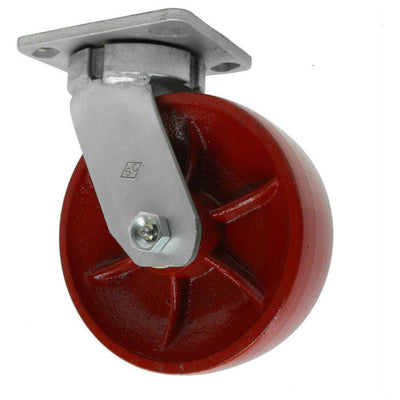

6" x 2" Energy Ductile Steel Wheel Kingpinless Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.

Tread: Slightly Crowned Solid Cast Ductile Steel

Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Kingpinless Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 2,000 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  2,000 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Slightly Crowned Solid Cast Ductile Steel
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
7-1/2"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Tensile Strength 45,000 PSI
Temperature Range  -45° F to 800° F
