6" x 2-1/2" Energy Saver Ductile Steel Wheel (2-1/2" Wide) - 3500 Lbs. Capacity

In stock
SKU: CD60KR89
Regular price $115.01

Bearing Type
Trusted By

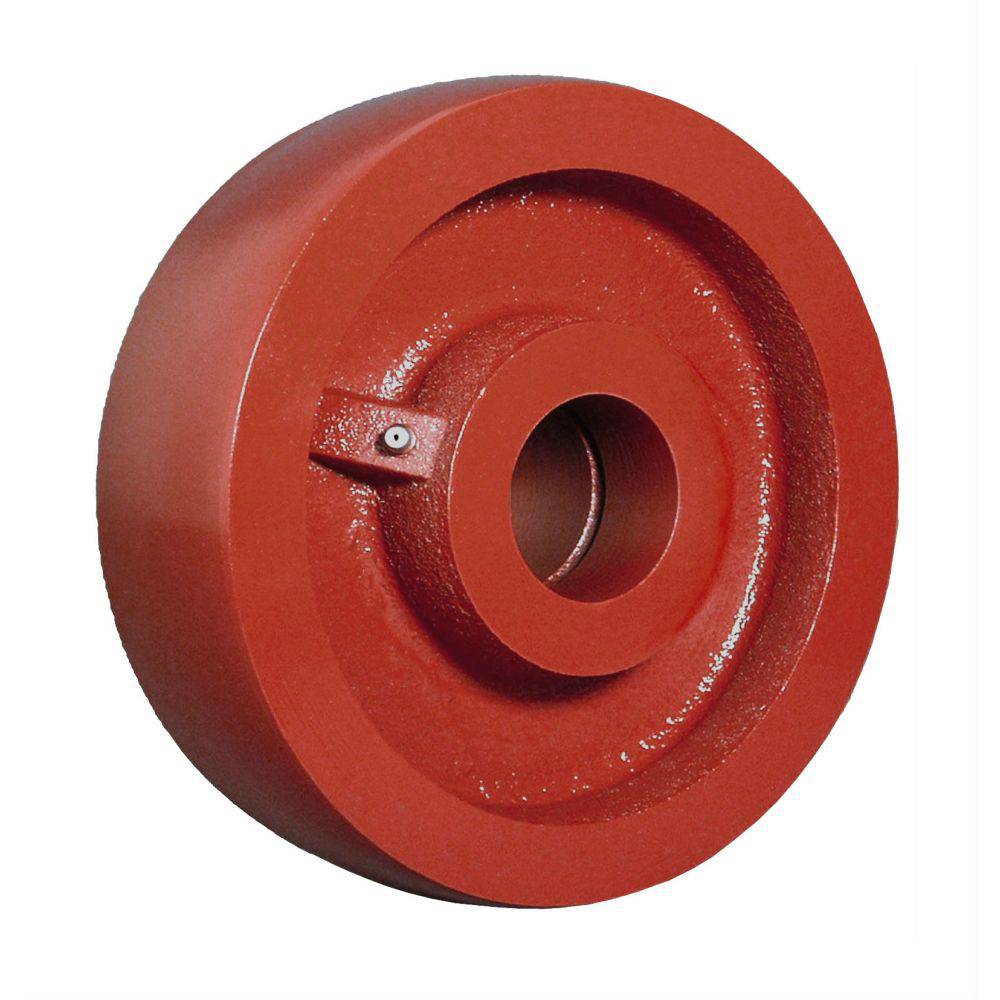

6" x 2-1/2" Energy Saver Ductile Steel Wheel

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.

Tread & Core: Solid Cast Ductile Steel

Bearing:
-7/8" Plain Bore
-1-15/16" Plain Bore
-1/2" Tapered Bearing
-1-15/16" Roller Bearing

  • Capacity: 3,500 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  3,500 Lbs.
Wheel Diameter
6"
Tread Width
2-1/2"
Tread Type
Solid Cast Ductile Steel
Core Type
Solid Cast Ductile Steel
Axle / Bore Diameter
-7/8"
-1-15/16"
-1/2"
-1-15/16"
Hub Length
2-3/4"
Bearing Type  -Plain Bore
-Tapered Bearing
-Roller Bearing
Color  Red
Tensile Strength  45,000 PSI
Temperature Range  -45° F to 800° F
