6" x 2" Energy Saver Polyon Cast Wheel Swivel Caster - 1250 lbs. capacity

In stock
SKU: 27SW60JU0417YY
Regular price $57.30

Four Position Swivel Lock
Trusted By

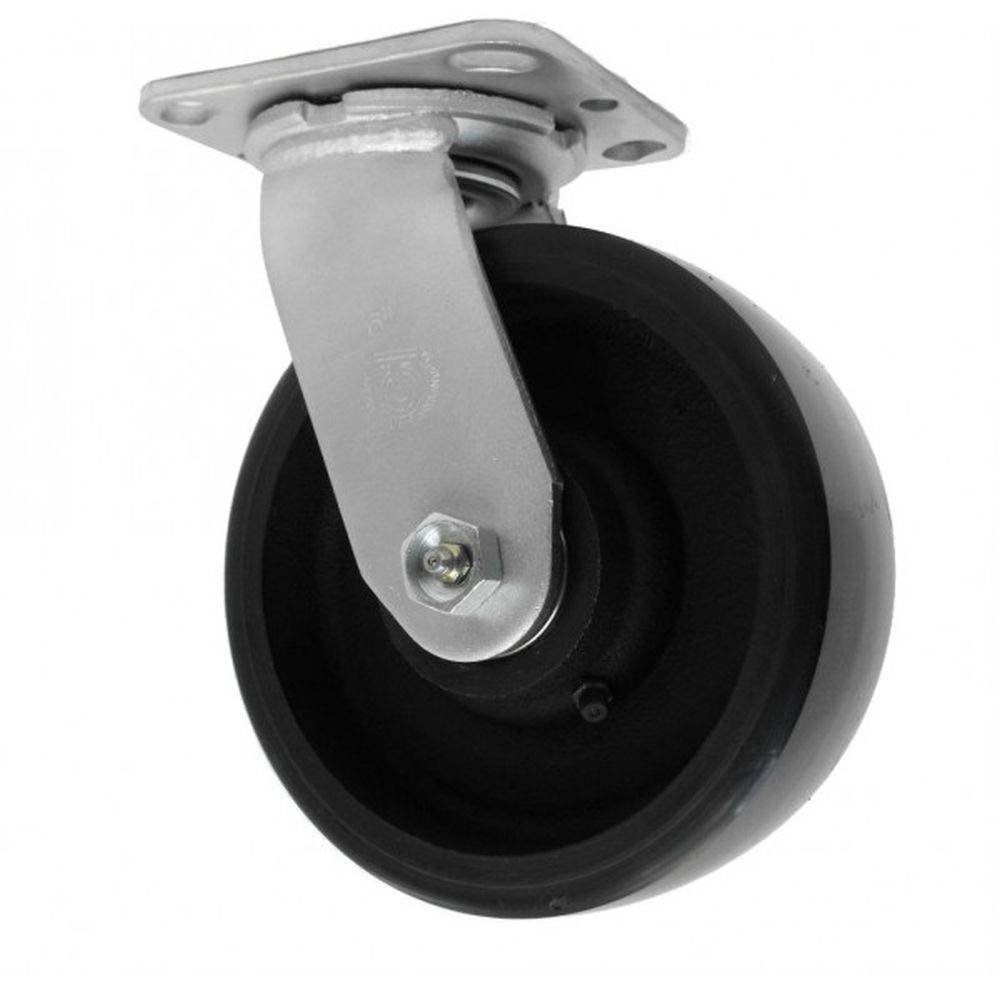

6" x 2" Energy Saver Polyon Cast Wheel Swivel Caster

Crowned polyurethane elastomer tread chemically bonded to a solid heavy-duty cast iron core. Combination of crowned tread and heavy core, offers higher weight capacities, durability and greater mobility than standard Polyon™ wheels.

Tread: Polyurethane Elastomer Tread Chemically Bonded To Cast Iron Core

Core: Heavy Duty Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,250 Lbs.
  • Color: Blue and Black
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  1,250 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Polyurethane Elastomer Tread Chemically Bonded To Cast Iron Core
Core Type
Heavy Duty Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Blue and Black
Overall Height
 7-1/2"
Swivel Radius
4-9/16"
Plate Size
4" x 4 -1/2"
Bolt Hole Pattern  2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer
Shore A 95 (+/-5)
Temperature Range  -40° F to 180° F
