6" x 3" Heavy Duty Ductile Steel Wheel Swivel Caster - 2400 lbs. Capacity

In stock
SKU: 53DS60LR2419YY
Regular price $192.53
Est. Ship Date: Monday, May 27th
Four Position Swivel Lock
Trusted By

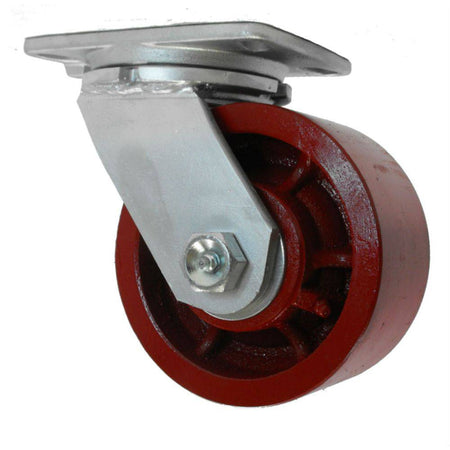

6" x 3" Heavy Duty Ductile Steel Wheel Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.

Tread & Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Forged steel swivel caster, 4-1/2" x 6-1/4" mounting plate

  • Capacity: 2,400 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  2,400 Lbs.
Wheel Diameter  6"
Tread Width
3"
Tread Type  Solid Cast Ductile Steel
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
7-1/2"
Swivel Radius
5-1/2"
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Hole Diameter  1/2"
Lock Type  4-Position Swivel Lock
Tensile Strength  45,000 PSI
Temperature Range  -45° F to 800° F
