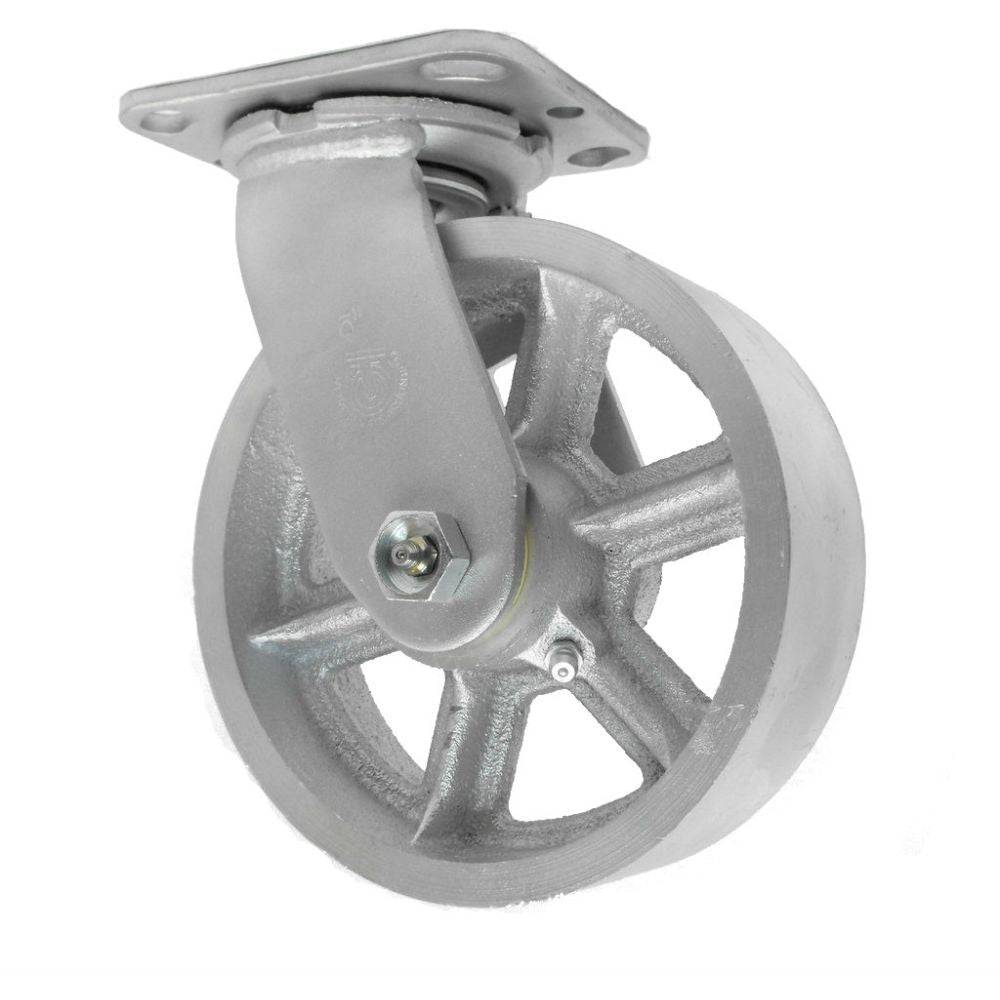

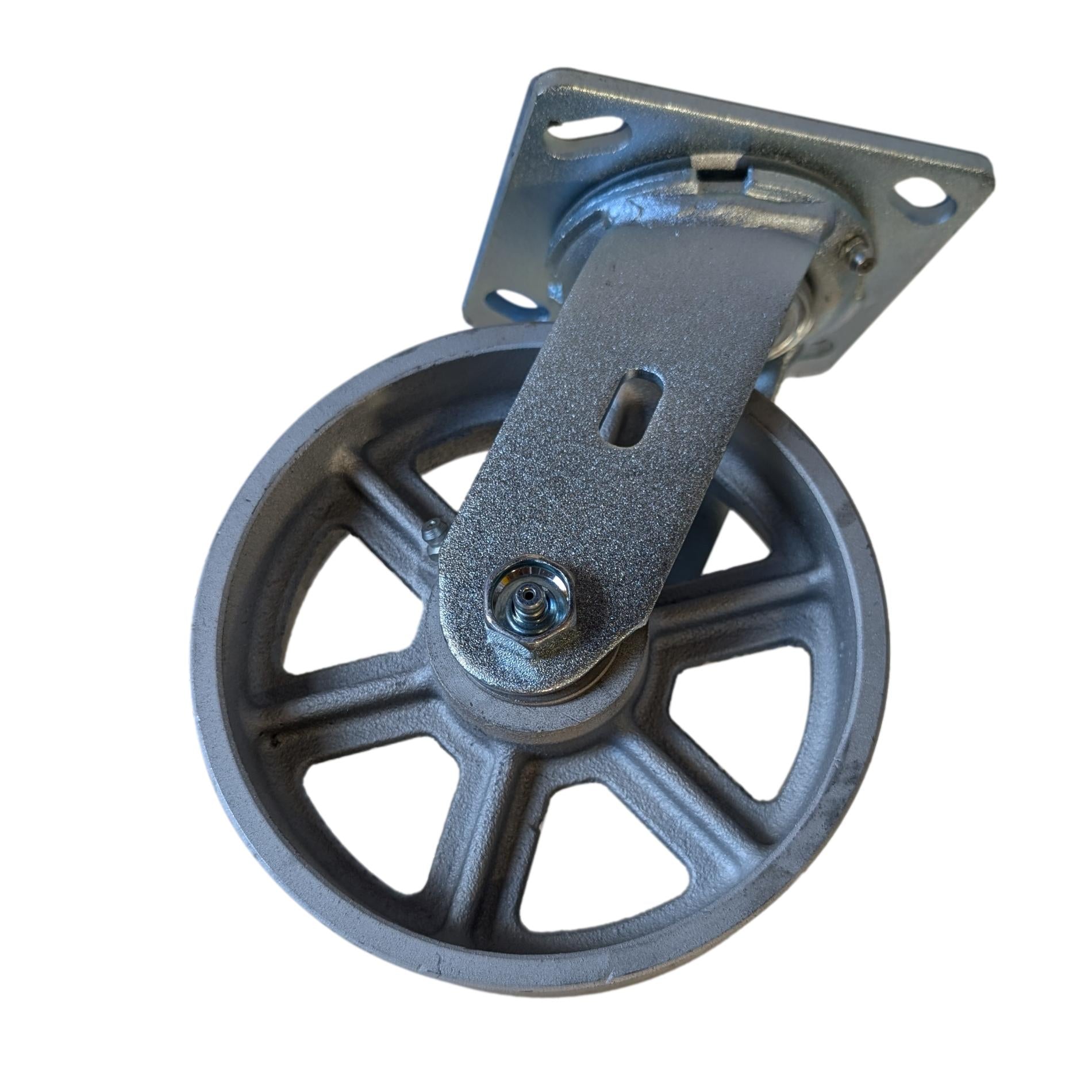

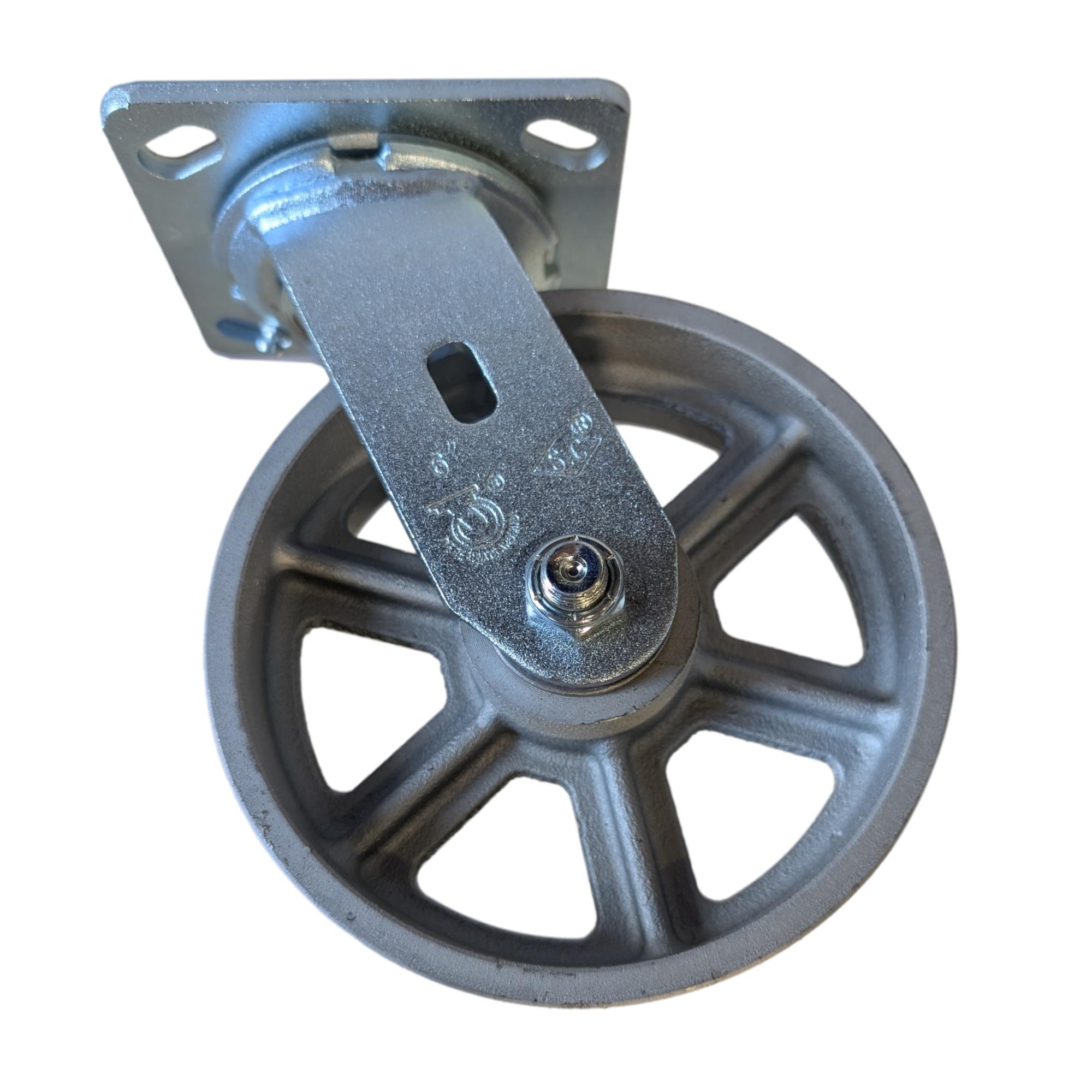

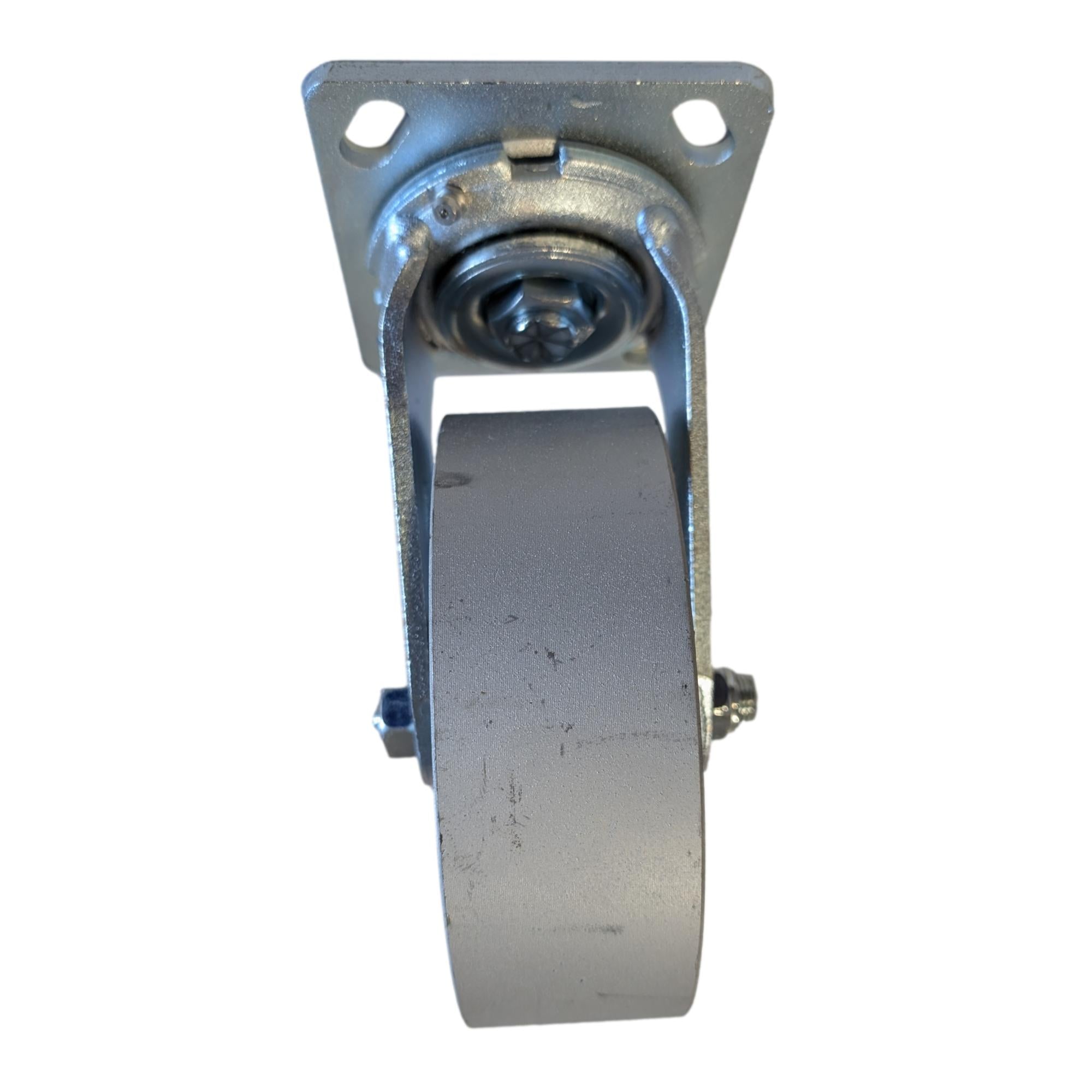

6" x 2" Heavy Duty Semi-Steel Wheel Swivel Caster - 1250 lbs. Capacity

In stock
SKU: 27HS60JS0417YY
Regular price $43.47

Four Position Swivel Lock
Trusted By

6" x 2" Heavy Duty Semi-Steel Wheel Swivel Caster

Heavy Duty Semi-Steel offers a strong, durable, cost effective solution of heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,250 Lbs.
  • Color: Silver
  • Hardness: Brinell 145
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity  1,250 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Steel Alloy
Core Type
Steel Alloy
Bearing Type
Roller Bearing
Wheel Color
Silver
Overall Height
7-1/2"
Swivel Radius
4-9/16"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Tensile Strength  30,000 PSI
Temperature Range  -45° F to 600° F
