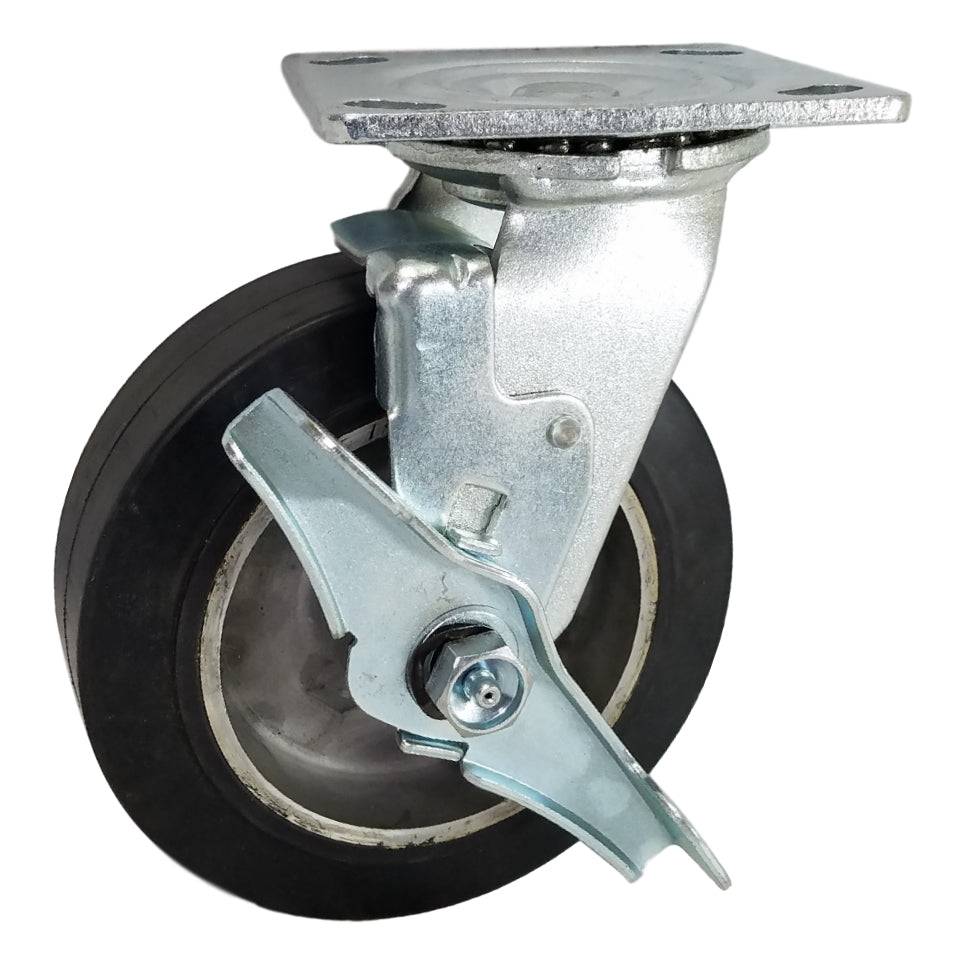

6" x 2" Mold On Rubber Aluminum Swivel Caster, Top Lock Brake, 550 lbs. Cap
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
The mold-on rubber aluminum wheel is a lightweight alternative to the traditional cast iron core, providing the same load capacity with a cushioned tread and an attractive look.
Tread: Rubber, Vulcanized To Core This caster is listed with wheel diameter 6", tread width 2", load capacity 550 Lbs., tread type Rubber, Vulcanized To Core, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 550 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Rubber, Vulcanized To Core
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 550 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Rubber, Vulcanized To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 550 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Wheel Color | Black and Silver |
| Load Capacity | 550 Lbs. |
| Overall Height | 7-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Top Lock Brake |
| Model / MPN | 27RA60JB0417TY |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Aluminum |
| Swivel Radius | 4-9/16" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 80 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock Brake.
