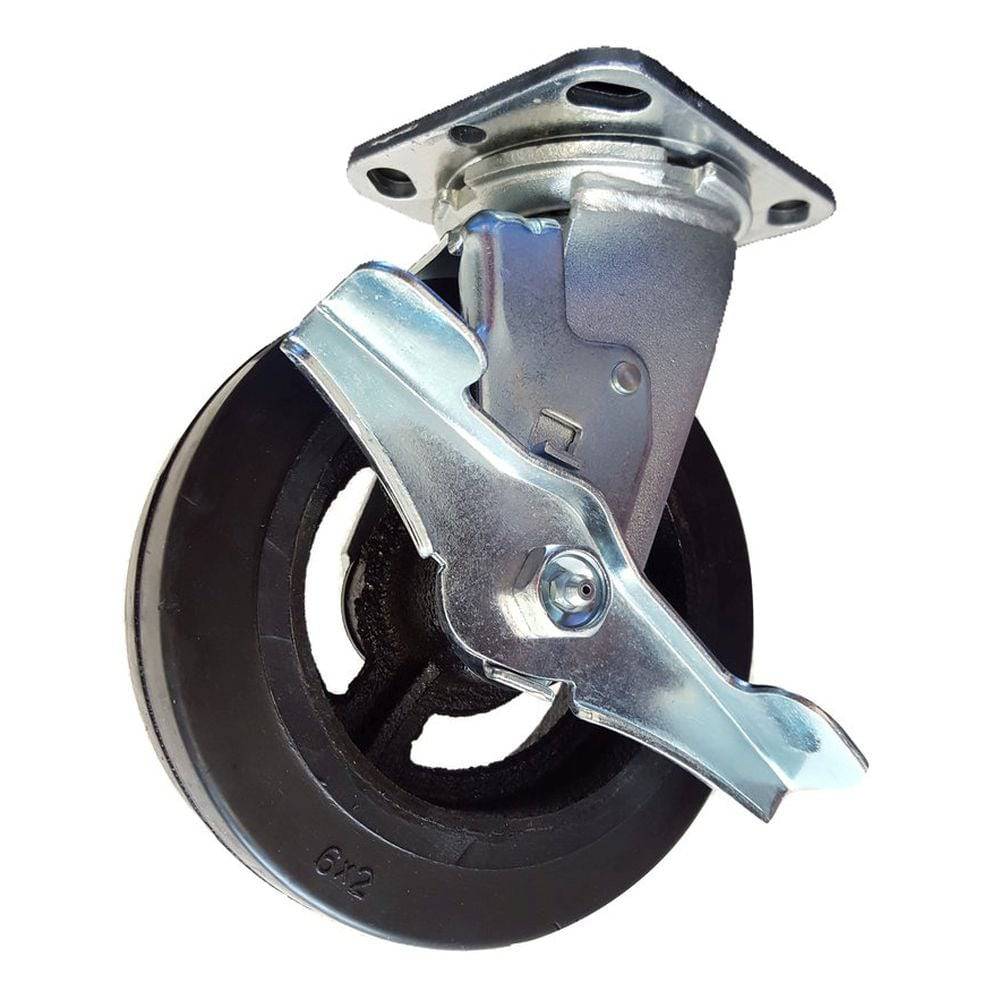

6" x 2" Mold On Rubber Cast Swivel Caster w/ Top Lock Brake - 550 lbs. Cap.

In stock
SKU: 27RS60JB0417TY
Regular price $42.67
Est. Ship Date: Tuesday, April 23rd
Four Position Swivel Lock
Trusted By

6" x 2" Mold On Rubber Cast Wheel Swivel Caster with Top Lock Brake

The mold-on rubber cast wheel is an economic wheel, providing cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.

Tread: Rubber, Vulcanized To Core

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 550 Lbs.
  • Color: Black
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  550 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Rubber, Vulcanized To Core
Core Type
Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Black
Overall Height
7-1/2"
Swivel Radius
4-9/16"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Top Lock Brake
Durometer  Shore A 80 (+/-5)
Temperature Range  -40° F to 180° F
