6" x 2-1/2" Phenolic Swivel Caster Heavy Duty Forged Hardened Steel,1600 Lbs. Cap

In stock
SKU: 53PH60KB2319YY
Regular price $128.65
Est. Ship Date: Tuesday, April 30th
Four Position Swivel Lock
Trusted By

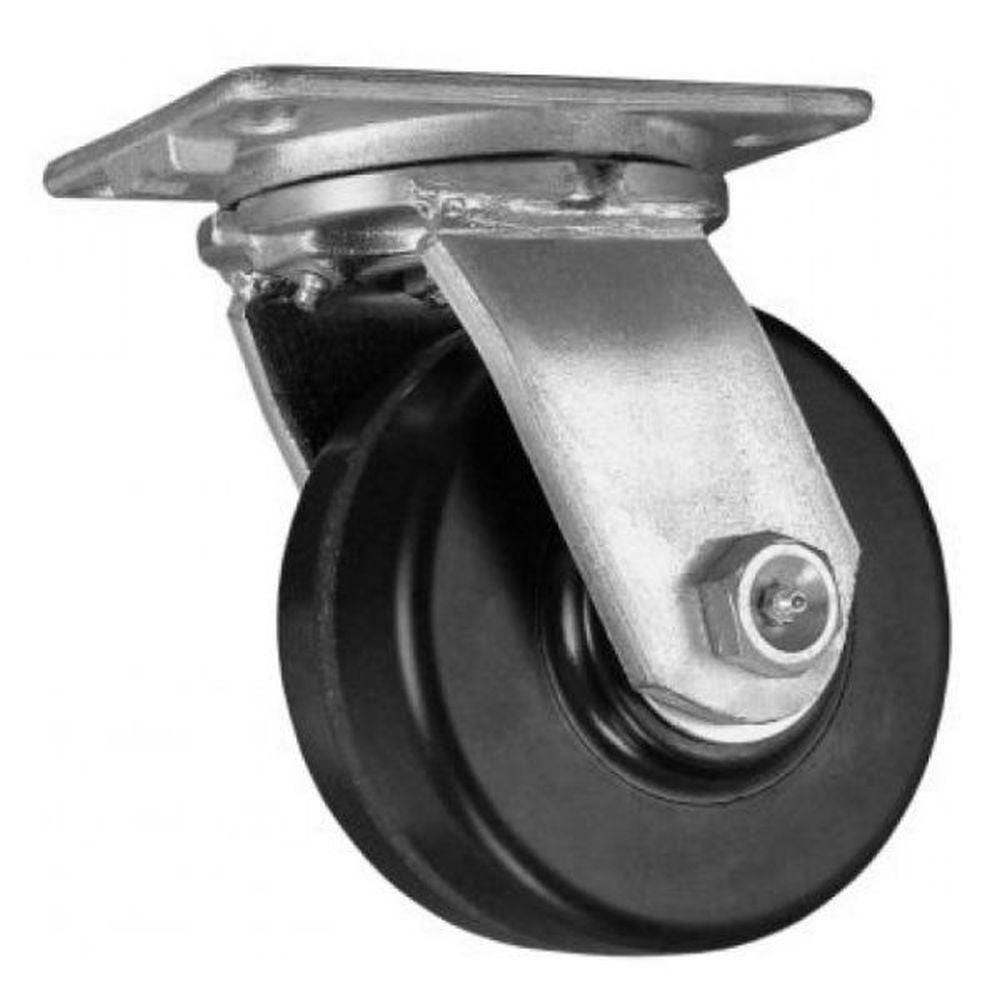

6" x 2-1/2" Phenolic Wheel Heavy Duty Swivel Caster

The Phenolic wheel is made of phenolic resin and macerated canvas, which provides smooth rolling and resistance to extreme temperature shifts. Phenolic wheels are resistant to oils, greases and some liquids, but they should not be used on rough surfaces or wet environments.

Tread & Core: Phenolic Resin with Macerated Canvas

Bearing: Roller Bearing

Rig: Forged steel swivel caster, 4-1/2" x 6-1/4" mounting plate

  • Capacity: 1,600 Lbs.
  • Color: Black
  • Durometer: Shore D 90 (+/-5)
  • Temperature Range: -50° F to 250° F
Load Capacity   1,600 Lbs.
Wheel Diameter
Tread Width
Tread Type
Phenolic resin with Macerated Canvas
Core Type
Phenolic Resin with Macerated Canvas
Bearing Type
Roller Bearing
Wheel Color
Overall Height
Swivel Radius
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern  2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Hole Diameter  1/2"
Lock Type  4-Position Swivel Lock
Durometer  Shore D 90 (+/-5)
Temperature Range  -50° F to 250° F
