6" x 2" V-Groove Cast Kingpinless Swivel Caster Med Heavy Duty,1000# Cap

In stock
SKU: 45VG60JT0417YY
Regular price $104.13

Four Position Swivel Lock
Trusted By

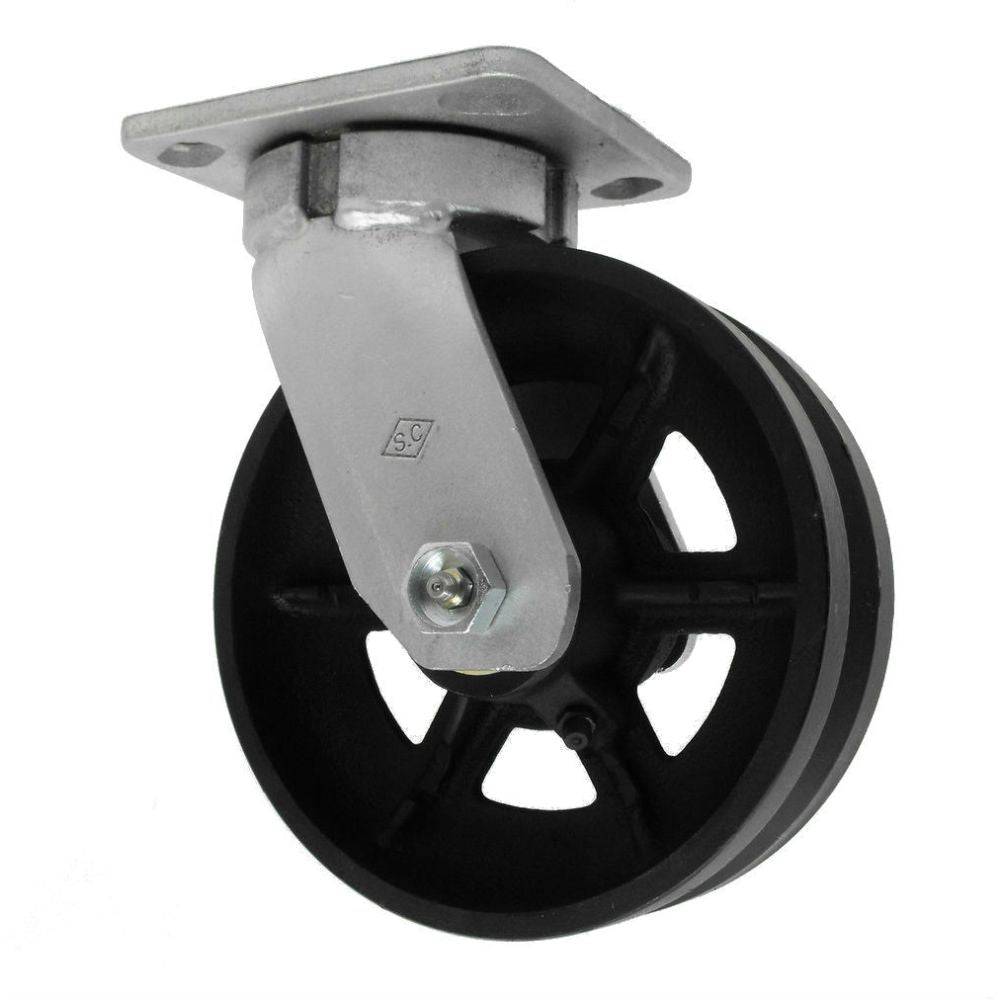

6" x 2" V-Groove Cast Iron Wheel Kingpinless Swivel Caster

Cast iron v-groove wheels are made for use with inverted angle track but they can also be used to roll on floor tracks, gate fence tracks and flat surfaces. Constructed of cast iron with a 90° v-groove, this wheel works well inside and outdoors.

Tread: Solid Cast Iron 90° V-Groove

Core: Solid Cast Iron

Bearing: Roller Bearing

Rig: Kingpinless zinc-plated swivel caster, 4" x 4-1/2" mounting plate

  • Capacity: 1,000 Lbs.
  • Color: Black
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 180° F
Load Capacity  1,000 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Solid Cast Iron 90° V-Groove
Core Type
Solid Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Black
Overall Height
7-1/2"
Plate Size
 4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Tensile Strength  30,000 PSI
Temperature Range -45° F to 180° F
