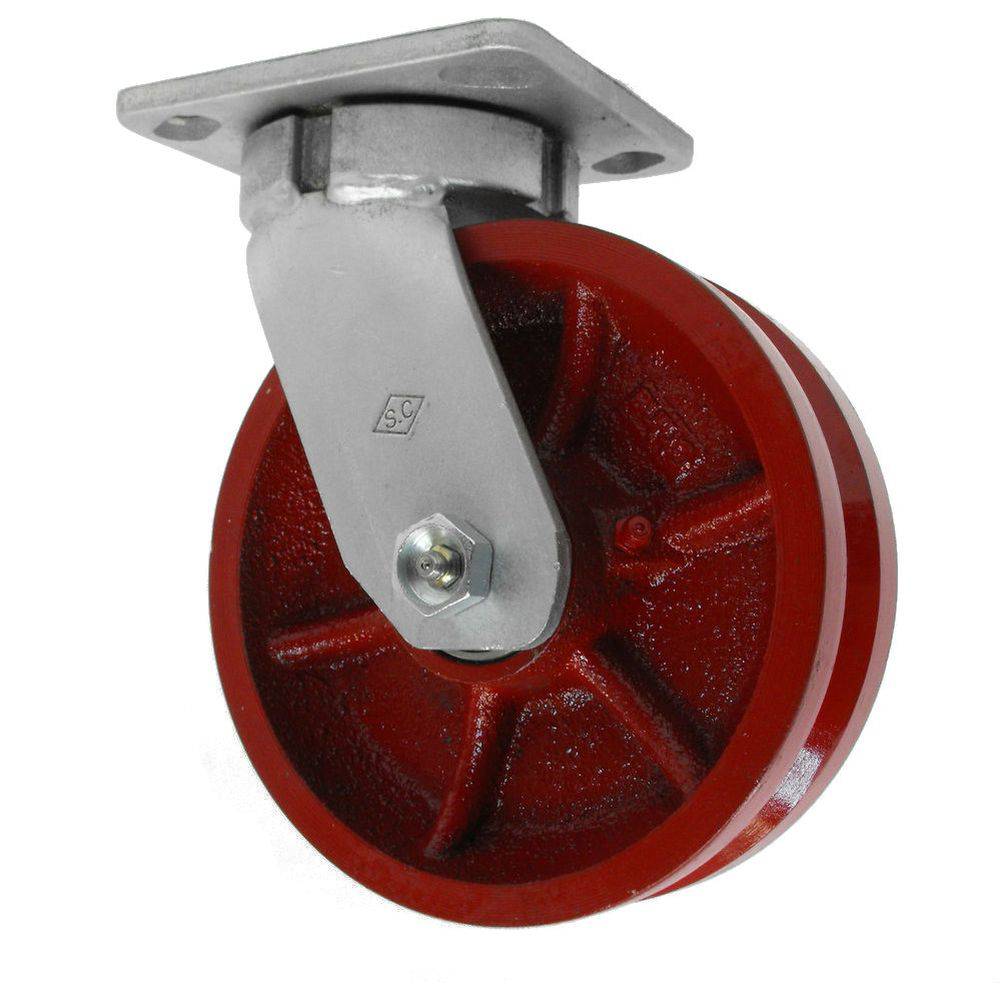

6" x 2" V-Groove Ductile Steel Kingpinless Swiv Caster Heavy Duty,1500# Cap
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.
Tread: Solid Cast Ductile Steel with 7/8" V-groove This caster is listed with wheel diameter 6", tread width 2", load capacity 1,500 Lbs., tread type Solid Cast Ductile Steel with 7/8" V-groove, and bearing type Roller Bearing.
Key Features
- Load Capacity: 1,500 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Solid Cast Ductile Steel with 7/8" V-groove
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,500 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Solid Cast Ductile Steel with 7/8" V-groove wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,500 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 1,500 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Tread Type | Solid Cast Ductile Steel with 7/8" V-groove |
| Core Type | Solid Cast Ductile Steel |
| Bearing Type | Roller Bearing |
| Wheel Color | Red |
| Overall Height | 7-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 85 (+/-) |
| Temperature Range | -45° F to 250° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 45DV60JT0417YY | Four-Position Swivel Lock: Standard |
| 45DV60JT0417PY | Four-Position Swivel Lock: Add 4-Position Swivel Lock |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 250° F.
