6" x 2" V-Groove Ductile Steel Swivel Caster Medium Duty - 1,500 lbs. Cap.

Regular price $40.23 Sale

1 - 3 Business Days

27DV60JT0417YY

Durable Superior Casters

Four Position Swivel Lock

$40.23

Category:

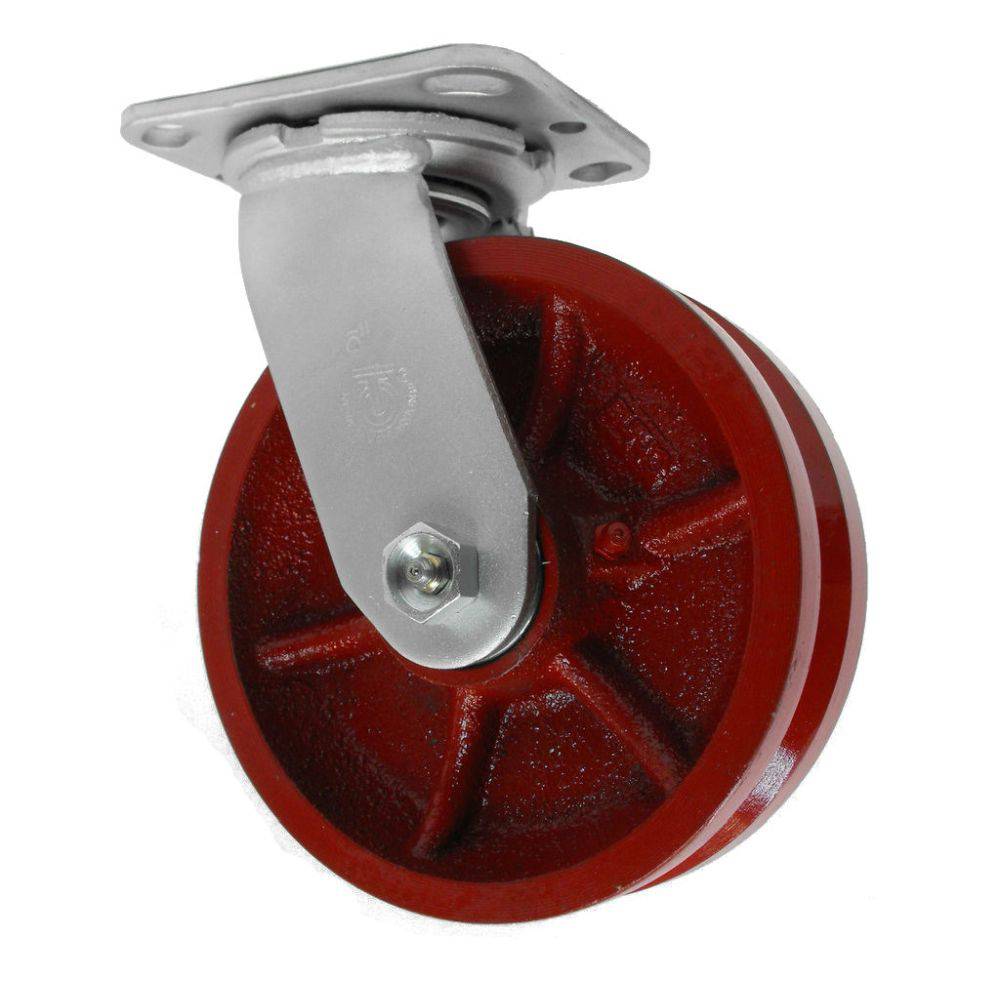

6" x 2" V-Groove Ductile Steel Wheel Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.

Tread: Solid Cast Ductile Steel with 7/8" V-Groove

Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Zinc-plated swivel caster, 4" x 4-1/2" mounting plate

  • Capacity: 1,500 Lbs.
  • Color: Red
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 250° F
Load Capacity  1,500 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Solid Cast Ductile Steel with 7/8" V-Groove
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
7-1/2"
Swivel Radius
4-9/16"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer  Shore D 85 (+/-5)
Temperature Range  -45° F to 250° F
