6" x 3" V-Groove Heavy Duty Ductile Steel Wheel Swivel Caster, 2,400 Lbs. Cap

In stock
SKU: 53DV60LW2419YY
Regular price $215.04

Four Position Swivel Lock
Trusted By

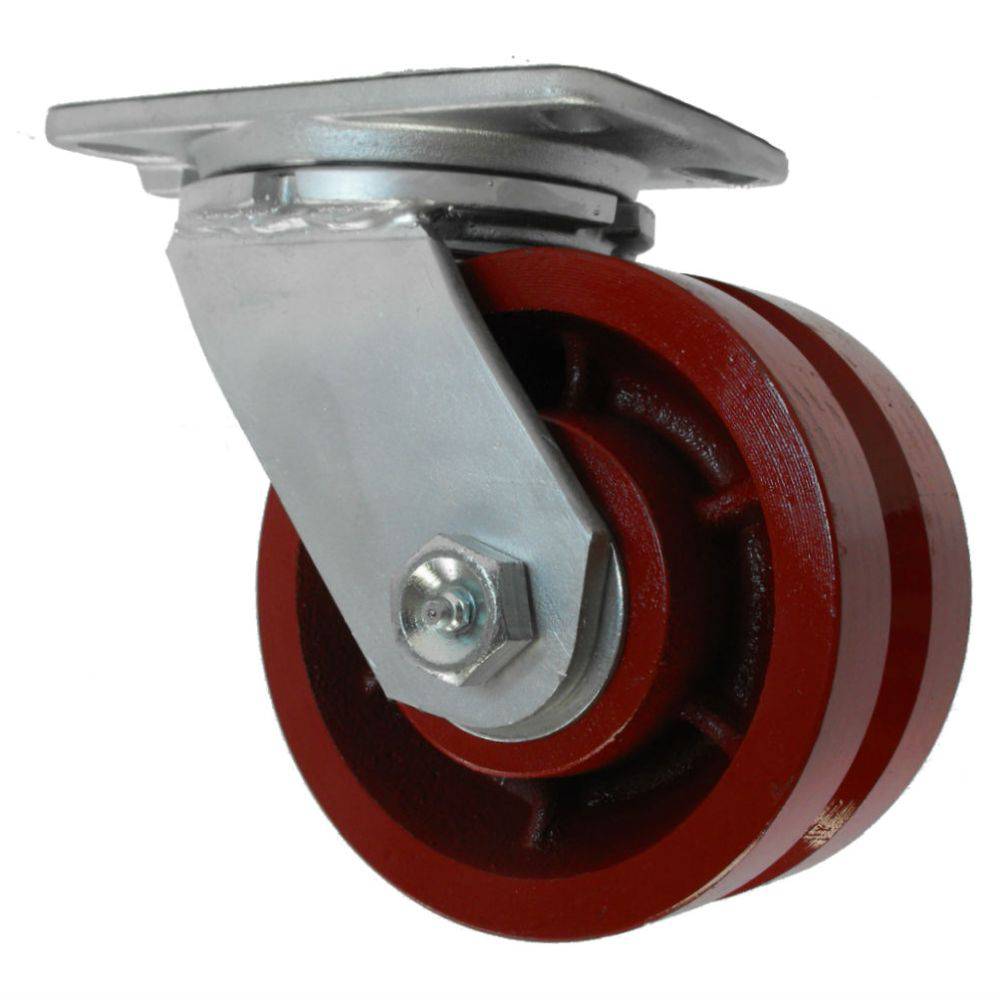

6" x 3" V-Groove Heavy Duty Ductile Steel Wheel Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.

Tread: Solid Cast Ductile Steel with 7/8" V-Groove

Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Forged steel swivel caster, 4-1/2" x 6-1/4" mounting plate

  • Capacity: 2,400 Lbs.
  • Color: Red
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 250° F
Load Capacity  2,400 Lbs.
Wheel Diameter
6"
Tread Width
3"
Tread Type
Solid Cast Ductile Steel with 7/8" V-Groove
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
7-1/2"
Swivel Radius
5-1/2"
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Hole Diameter
1/2"
Durometer Shore D 85 (+/-5)
Temperature Strength  -45° F to 250° F
