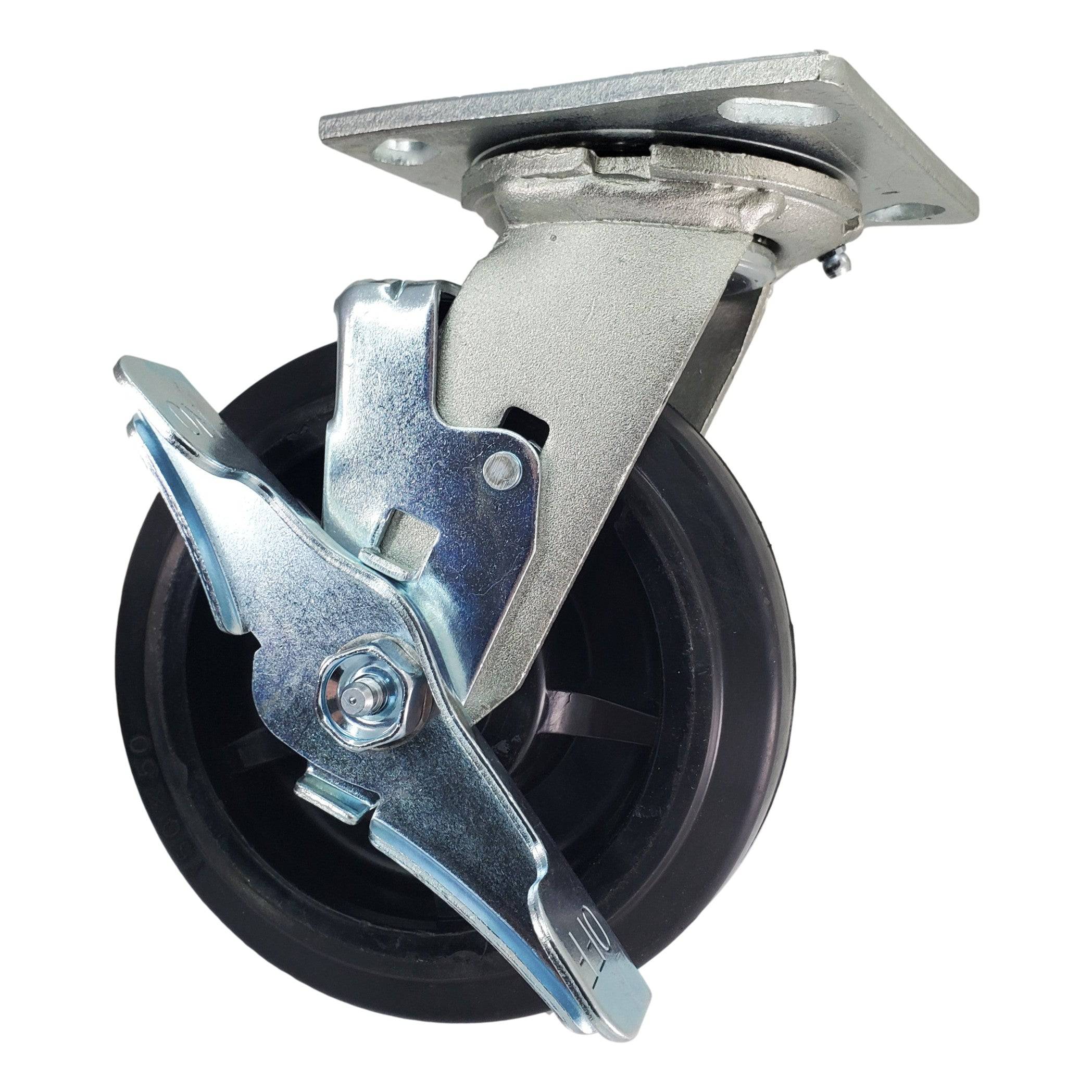

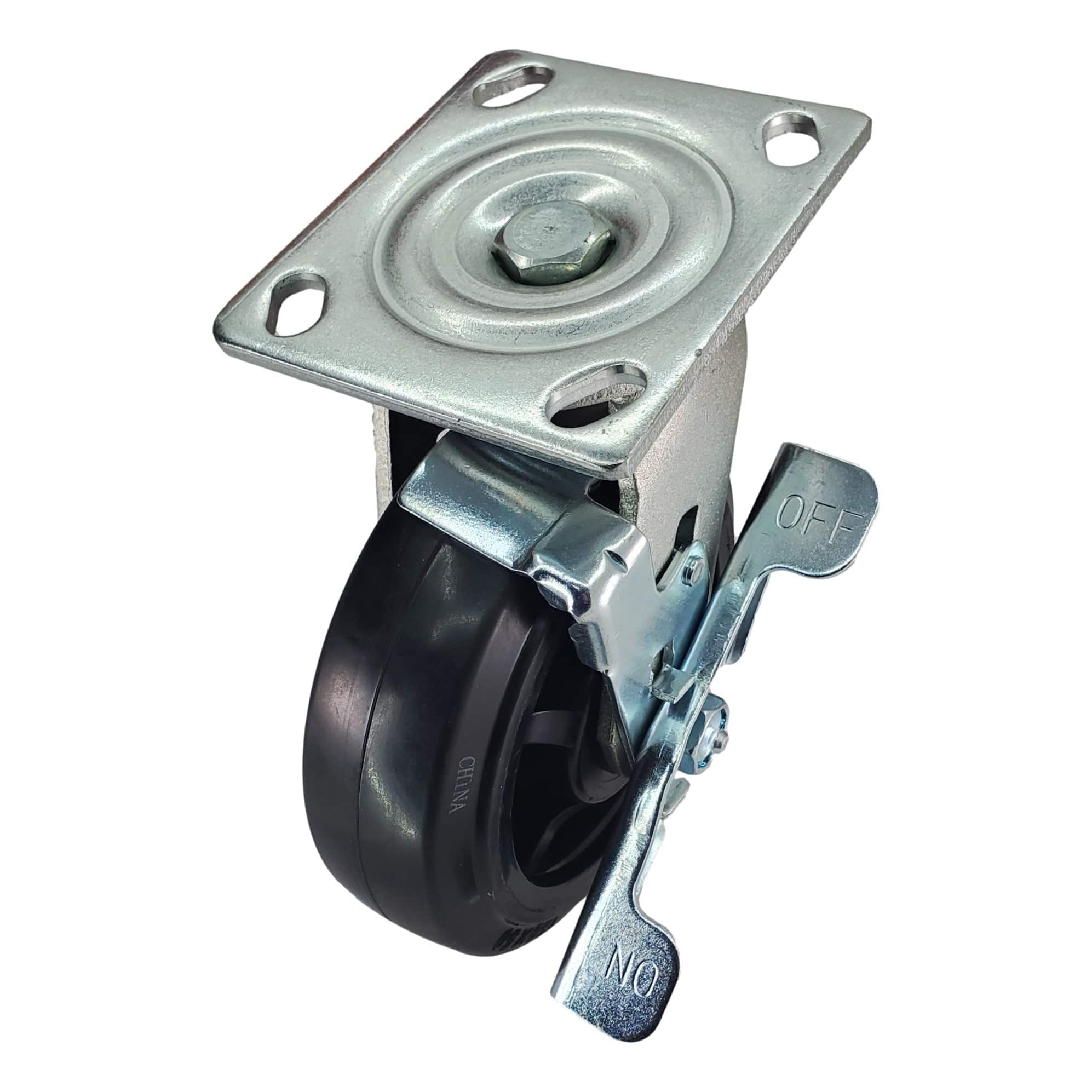

6" x 2" Rubber On Nylon Wheel Swivel Caster w/ Top Lock Brake - 500 lbs. Capacity

In stock
SKU: 27NR60JB6017TY
Regular price $40.39
Est. Ship Date: Monday, March 4th
Trusted By

6" x 2" Rubber on Nylon Wheel Swivel Caster with Top Lock Brake

Rust free and suitable for wash down, high humidity, and outdoor environments. The nylon core is designed to increase load and impact capacities while the rubber tread offers shock absorbing cushioned ride allowing it to roll over debris easily and quietly without damaging floor surfaces.

Tread: Rubber Tread Vulcanized Core

Core: Nylon

Bearing: Ball Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 500 Lbs.
  • Color: Black
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  500 Lbs.
Wheel Diameter
Tread Width
Tread Type
Rubber Tread Vulcanized Core
Core Type
Bearing Type
Ball Bearing
Wheel Color
Overall Height
Swivel Radius 4-9/16"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type Top Lock Brake
Durometer  Shore A 80 (+/-5)
Temperature Range -40° F to 180° F
