6" x 2" V-Groove Cast Iron Wheel Rigid Caster - 1000 lbs. Capacity

In stock
SKU: 44VG60JT0419YY
Regular price $50.06
Est. Ship Date: Monday, March 11th
Trusted By

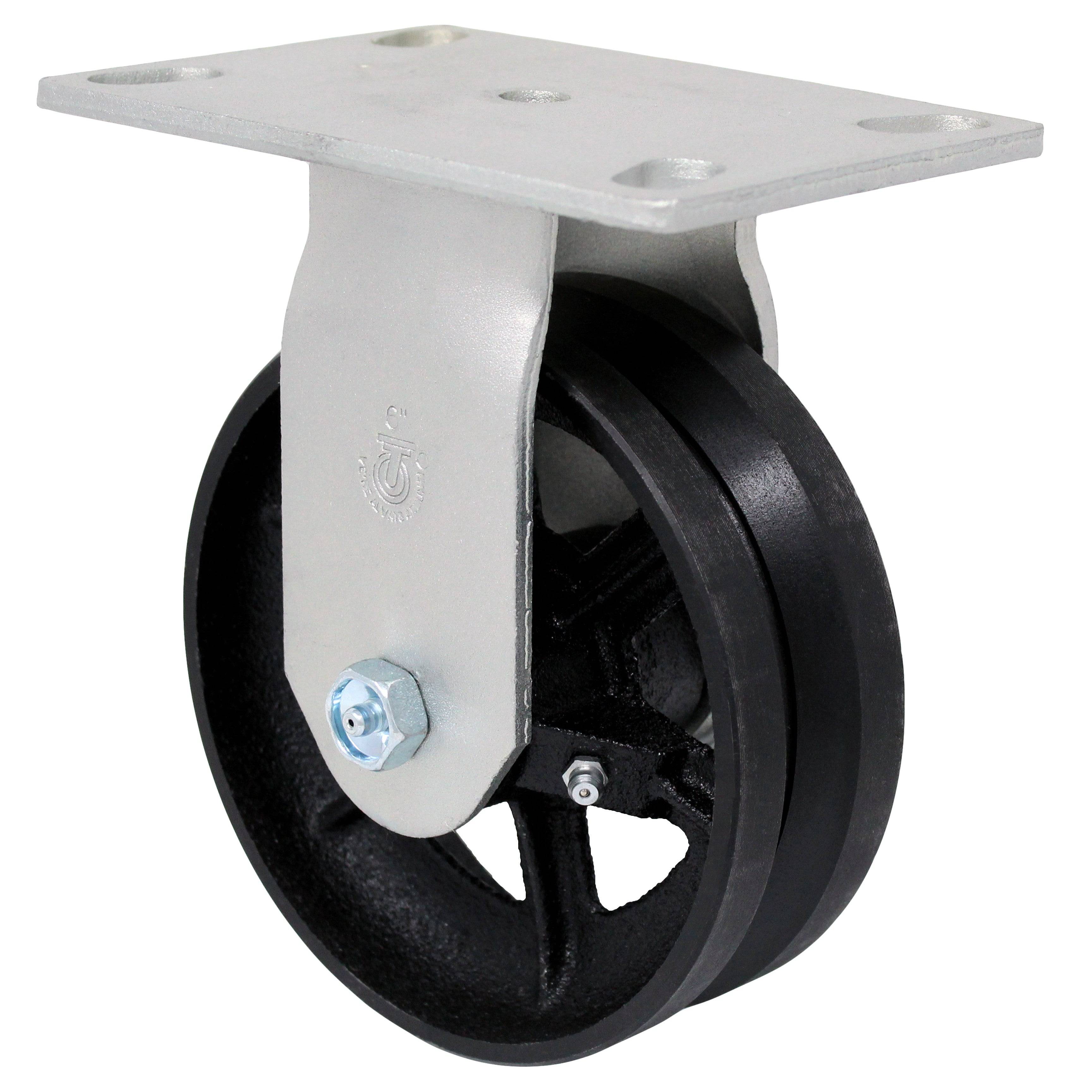

6" x 2" V-Groove Cast Iron Wheel Rigid Caster

Cast iron v-groove wheels are made for use with inverted angle track but they can also be used to roll on floor tracks, gate fence tracks and flat surfaces. Constructed of cast iron with a 90° v-groove, this wheel works well inside and outdoors.

Tread: Solid Cast Iron 90° V-Groove

Core: Solid Cast Iron

Bearing: Roller Bearing

Rig: Zinc-plated Rigid caster, 4-1/2" x 6-1/4" mounting plate

  • Capacity: 1,000 Lbs.
  • Color: Black
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 180° F
Load Capacity  1,000 Lbs.
Wheel Diameter
Tread Width
Tread Type
Solid Cast Iron 90° V-Groove
Core Type
Solid Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Overall Height
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bolt Hole Diameter  1/2"
Tensile Strength  30,000 PSI
Temperature Range  -45° F to 180° F
