6" x 2" V-Groove Cast Iron Wheel Swivel Caster w/ Top Lock Brake - 1000 lbs. Capacity
Couldn't load pickup availability
Trusted By

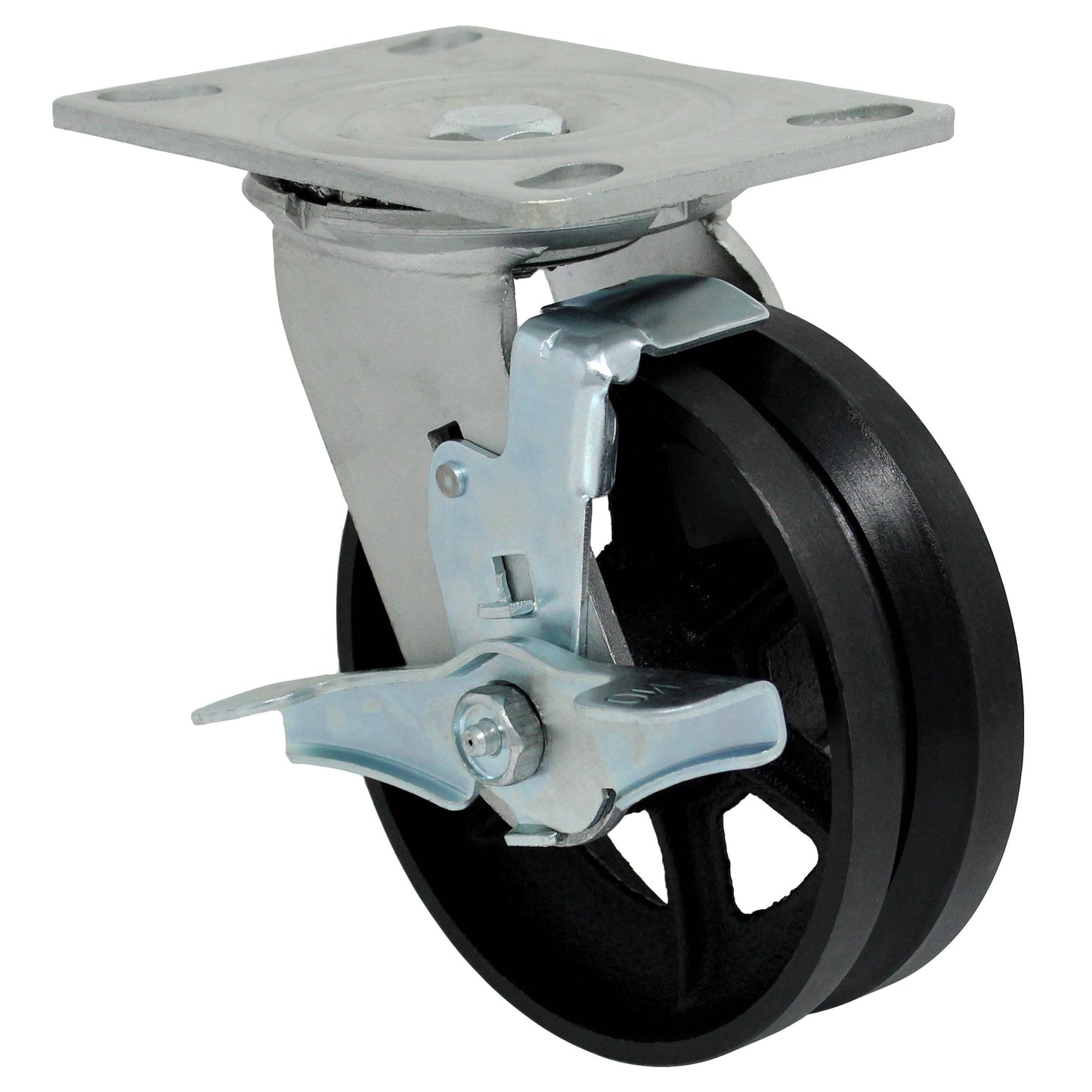

6" x 2" V-Groove Cast Iron Wheel Swivel Caster with Top Lock Brake
Cast iron v-groove wheels are made for use with inverted angle track but they can also be used to roll on floor tracks, gate fence tracks and flat surfaces. Constructed of cast iron with a 90° v-groove, this wheel works well inside and outdoors.
Tread: Solid Cast Iron 90° V-Groove
Core: Solid Cast Iron
Bearing: Roller Bearing
Rig: Zinc-plated swivel caster with top lock brake, 4-1/2" x 6-1/4" mounting plate
- Capacity: 1,000 Lbs.
- Color: Black
- Tensile Strength: 30,000 PSI
- Temperature Range: -45° F to 180° F
| Load Capacity | 1,000 Lbs. |
| Wheel Diameter |
6" |
| Tread Width |
2" |
| Tread Type |
Solid Cast Iron 90° V-Groove |
| Core Type |
Solid Cast Iron |
| Bearing Type |
Roller Bearing |
| Wheel Color |
Black |
| Overall Height |
7-1/2" |
| Swivel Radius |
4-3/4" |
| Plate Size |
4-1/2" x 6-1/4" |
| Bolt Hole Pattern |
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Bolt Hole Diameter | 1/2" |
| Lock Type | Top Lock |
| Tensile Strength | 30,000 PSI |
| Temperature Range | -45° F to 180° F |
