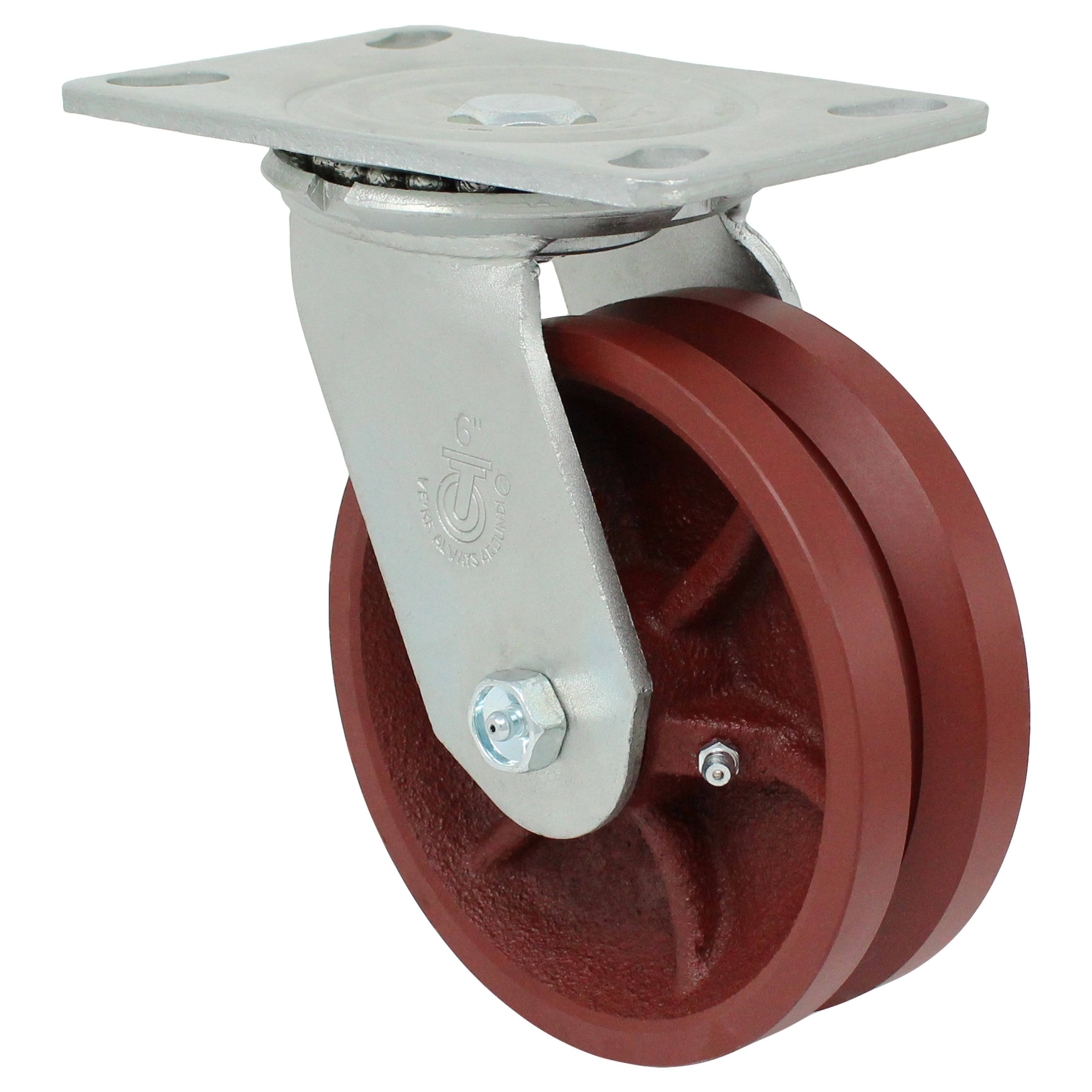

6" x 2" V-Groove Ductile Steel Swivel Caster - 1,500 lbs. Cap.

In stock
SKU: 43DV60JT0419YY
Regular price $78.48

Four Position Swivel Lock
Trusted By

6" x 2" V-Groove Ductile Steel Wheel Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.

Tread: Solid Cast Ductile Steel with 7/8" V-Groove

Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Zinc-plated swivel caster, 4-1/2" x 6-1/4" mounting plate

  • Capacity: 1,500 Lbs.
  • Color: Red
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 250° F
Load Capacity  1,500 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Solid Cast Ductile Steel with 7/8" V-Groove
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
7-1/2"
Swivel Radius
4-3/4"
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bolt Hole Diameter
1/2"
Durometer  Shore D 85 (+/-5)
Temperature Range  -45° F to 250° F
