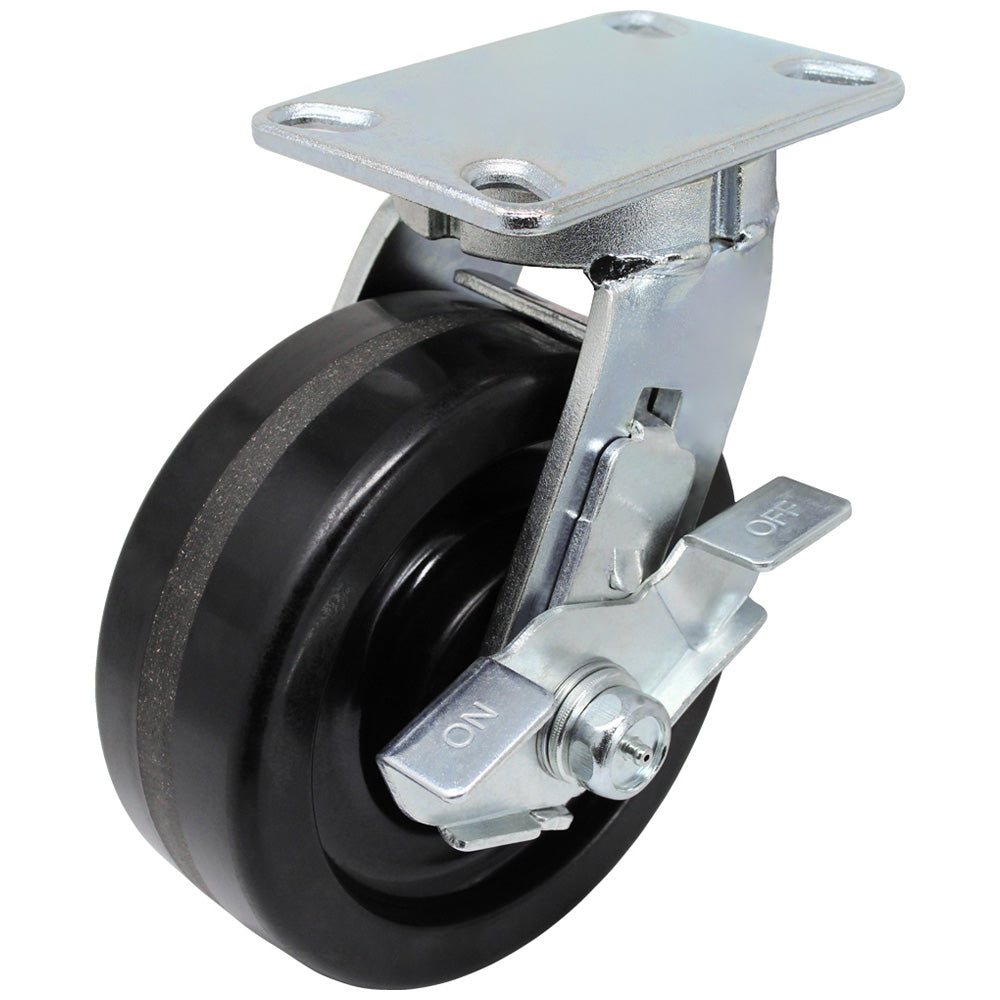

6" x 3" Ductile Steel Kingpinless Swivel Caster Heavy Duty Top Lock Brake - 6,000 lbs. Cap.
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
The 6" x 3" Ductile Steel Kingpinless Swivel Caster with a Heavy Duty Top Lock Brake is engineered for demanding environments where strength, durability, and load-bearing capacity are critical. This caster combines a high-tensile, graphite-rich ductile steel wheel with a robust forged steel swivel rig, making it an ideal choice for industrial applications that require reliable mobility under heavy loads.
This caster is listed with wheel diameter 6", tread width 3", load capacity 6,000 Lbs., tread type Solid Cast Ductile Steel, and bearing type Roller Bearing.
Key Features
- Load Capacity: 6,000 Lbs.
- Wheel Diameter: 6"
- Tread Width: 3"
- Tread: Solid Cast Ductile Steel
- Bearing: Roller Bearing
- Mounting Plate: 4-1/2" x 6-1/4"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt-hole pattern
- Loads within the listed 6,000 Lbs rating
- Equipment using the listed 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt-hole pattern
- Applications needing the listed Solid Cast Ductile Steel wheel or tread
Not Ideal For
Not ideal when the load exceeds 6,000 Lbs, the equipment requires a wheel other than 6" diameter by 3" tread width, the mounting does not match the listed 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 6,000 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 3" |
| Tread Type | Solid Cast Ductile Steel |
| Core Type | Solid Cast Ductile Steel |
| Bearing Type | Roller Bearing |
| Wheel Color | Black |
| Overall Height | 7-1/2" |
| Swivel Radius | 5-1/2" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Bolt Hole Diameter | 1/2" |
| Tensile Strength | 45,000 PSI |
| Temperature Range | -45° F to 800° F |
| Model / MPN | 57DS60LR2419TY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 800° F.
