6" x 3" Heavy Duty Semi-Steel Kingpinless Swivel Caster - 2500 lbs. Cap.

In stock
SKU: 61SS60LS2425FP
Regular price $326.36
Est. Ship Date: Thursday, December 14th
Trusted By

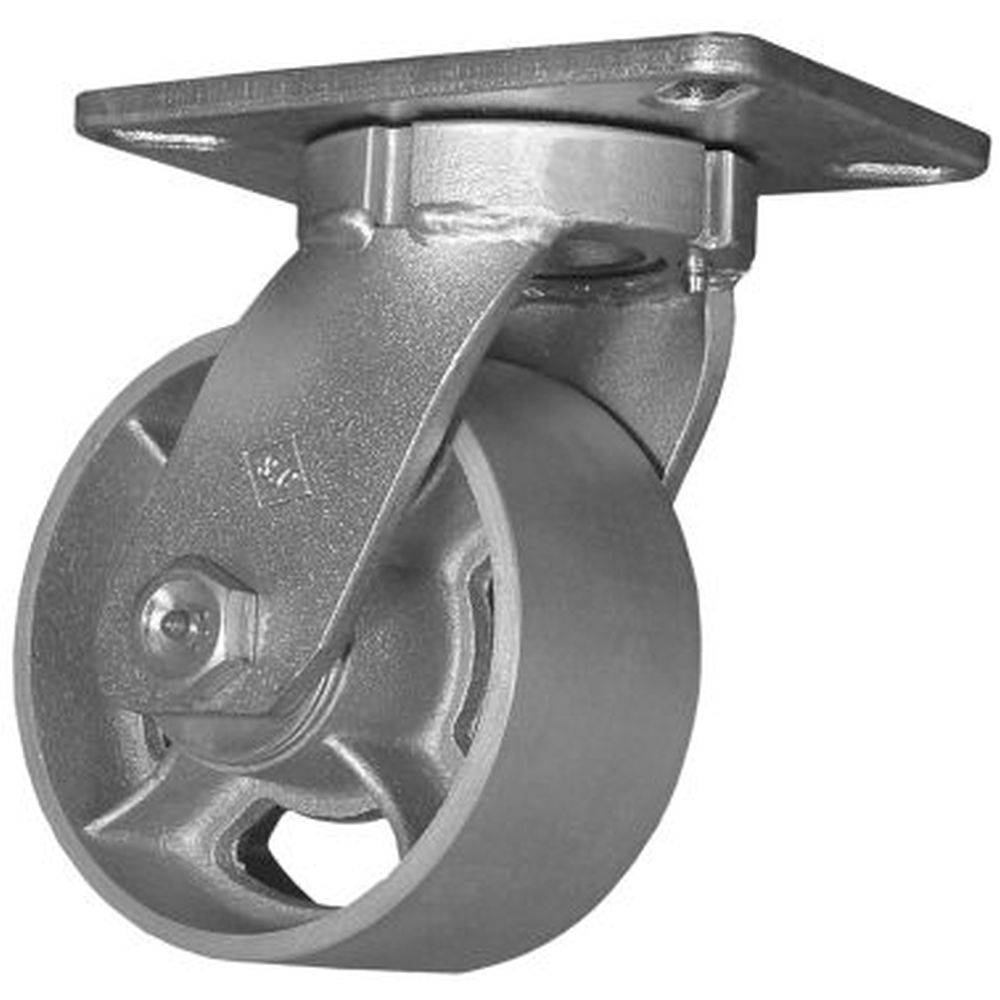

6" x 3" Heavy Duty Semi-Steel Wheel Kingpinless Swivel Caster

Semi-Steel offers a strong, durable, cost effective solution of heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Roller Bearing

Rig: Zinc-plated swivel caster with swivel dust cap, 5-1/4" x 7-1/4" mounting plate

  • Capacity: 2,500 Lbs.
  • Color: Silver
  • Hardness: Brinell 145
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity  2,500 Lbs.
Wheel Diameter
Tread Width
Tread Type
Steel Alloy
Core Type
Steel Alloy
Bearing Type
Roller Bearing
Wheel Color
Overall Height
Swivel Radius
Plate Size
5-1/4" x 7-1/4"
Bolt Hole Pattern
3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Bolt Hole Diameter  1/2"
Lock Type
Tensile Strength  30,000 PSI
Temperature Range  -45° F to 600° F
