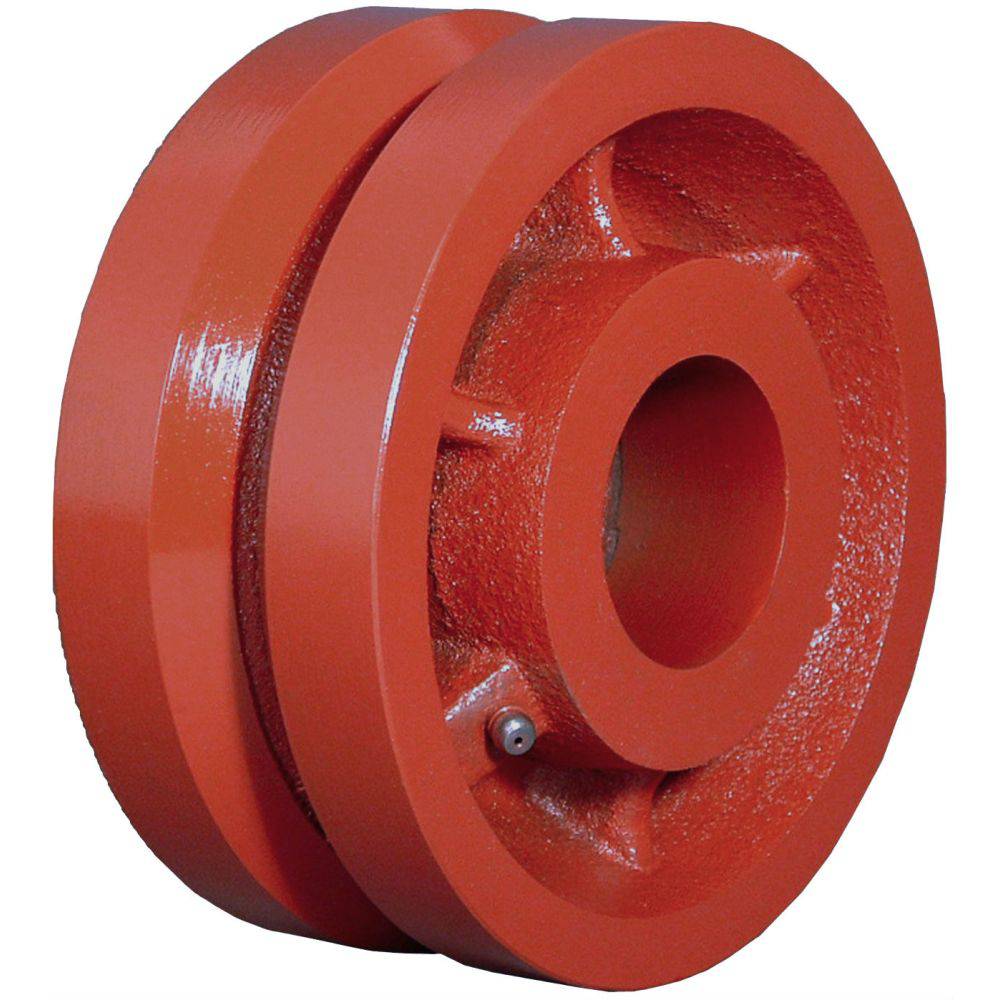

8" x 3" Ductile Steel V-Groove Wheel - 5000 Lbs. Capacity

In stock
Regular price $128.26
Est. Ship Date: Monday, March 11th
Bearing Type
Trusted By

8" x 3" Ductile Steel V-Groove Wheel

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.

Tread: Solid Cast Ductile Steel with 7/8" V-Groove

Core: Solid Cast Ductile Steel

Bearing: Multiple Bearing Options

  • Capacity: 5,000 Lbs.
  • Color: Red
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 250° F
Load Capacity  5,000 Lbs.
Wheel Diameter
Tread Width
Tread Type
Solid Cast Ductile Steel with 7/8" V-Groove
Core Type
Solid Cast Ductile Steel
Hub Length
Bearing Type Multiple Bearing Options
Color  Red
Durometer  Shore D 85 (+/-5)
Temperature Range  -45° F to 250° F
