8" x 4" Ductile Steel Wheel Kingpinless Swivel Caster - 10000 lbs. capacity

In stock
SKU: 65DS80NR3345YY
Regular price $1,191.62
Regular price Sale $1,324.02 Sale price $1,191.62
Est. Ship Date: Monday, March 4th
Four Position Swivel Lock
Trusted By

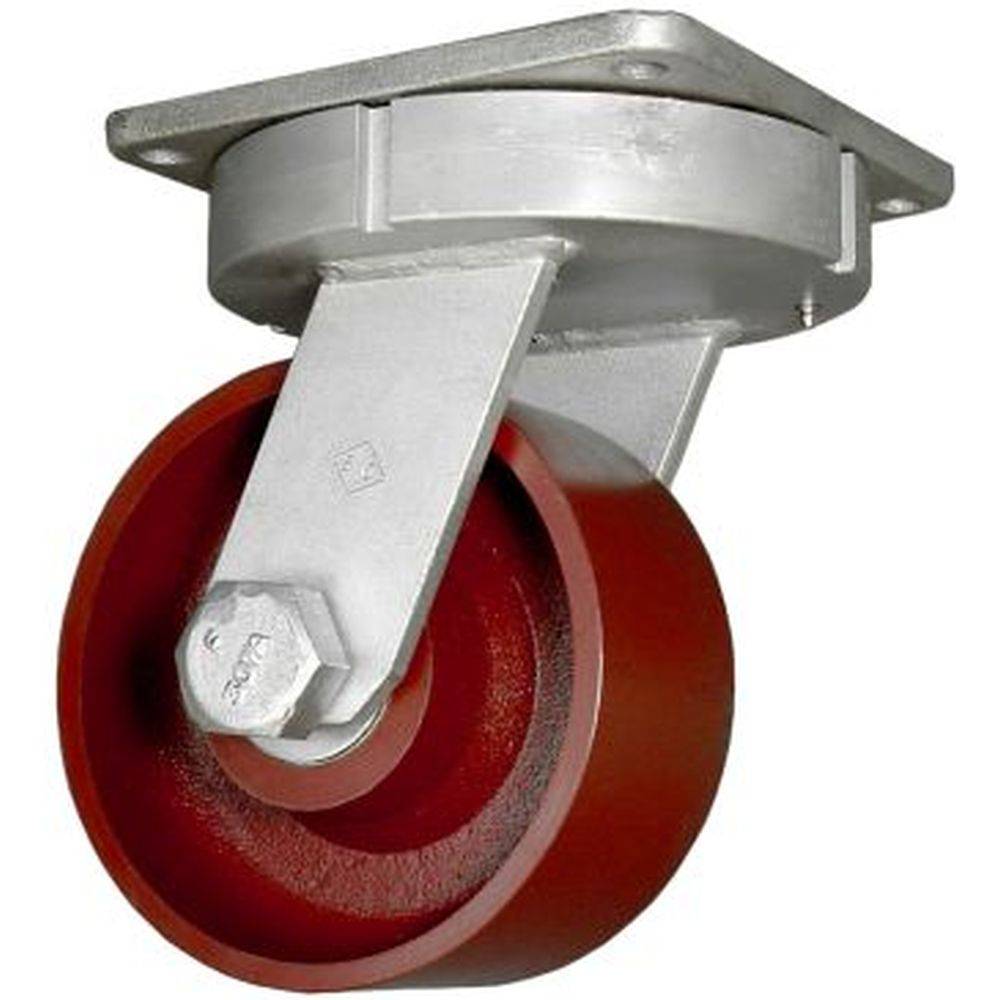

8" x 4" Ductile Steel Wheel Kingpinless Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.

Tread & Core: Solid Cast Ductile Steel

Bearing: Ball Bearing

Rig: Forged steel swivel caster with 7" kingpinless swivel bearing, 8-1/2" x 8-1/2" mounting plate, 1/2" thick double welded legs

  • Capacity: 10,000 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  10,000 Lbs.
Wheel Diameter
8"
Tread Width
4"
Tread Type
Solid Cast Ductile Steel
Core Type
Solid Cast Ductile Steel
Bearing Type
Ball Bearing
Wheel Color
Red
Overall Height
11"
Swivel Radius
6"
Plate Size
8-1/2" x 8-1/2"
Bolt Hole Pattern
7" x 7"
Bolt Hole Diameter  5/8"
Tensile Strength  45,000 PSI
Temperature Range  -45° F to 800° F
