Product Overview

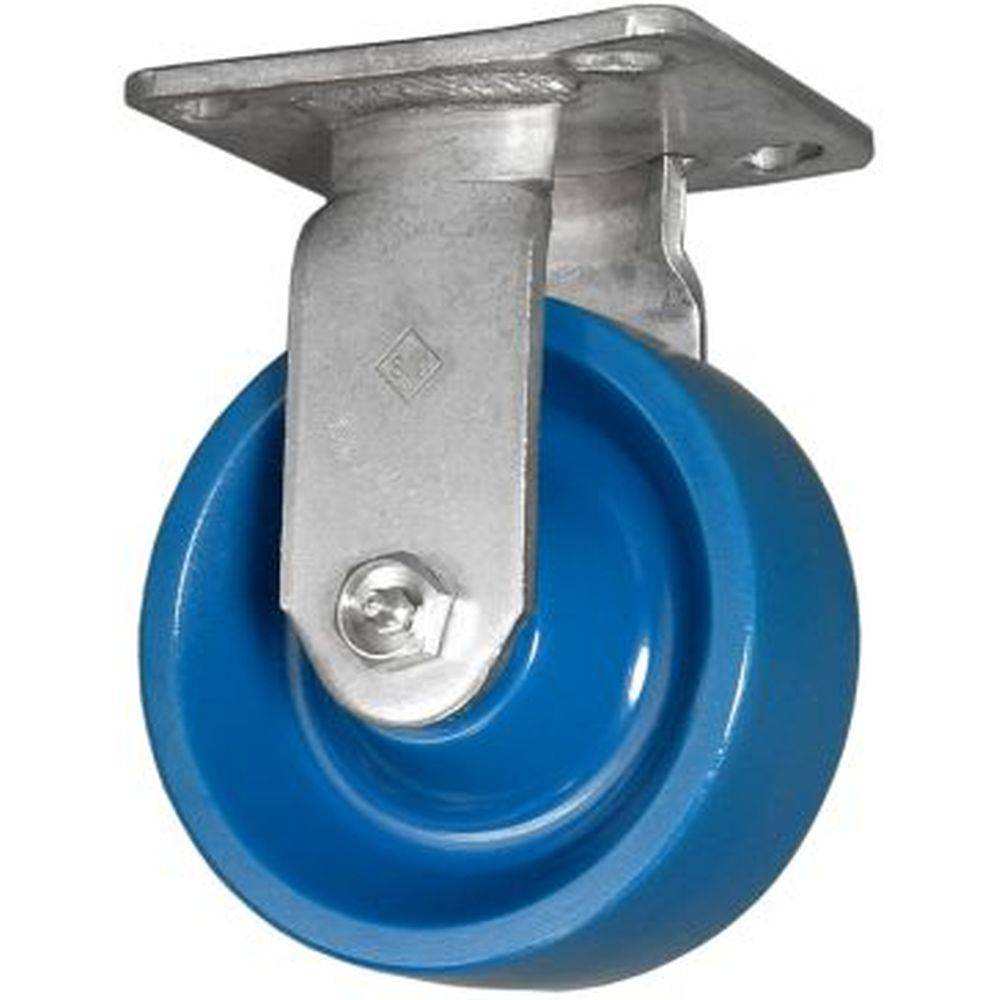

8" x 2" DuraLastomer wheel (solid non-marking polyurethane elastomer), Stainless Steel rigid mounting plate dimensions 4" 4-1/2", and overall height of 9-1/2". Medium duty.
Solid cast polyurethane elastomer one-piece design eliminates bonding failures and is a very reliable and durable wheel. 100% washable & steam cleanable; not affected by grease, oils, most chemicals & cleaning solutions, brine & blood. This caster is listed with wheel diameter 8", tread width 2", load capacity 1,000 lbs., bearing type Stainless steel roller bearing, and plate size 4" x 4-1/2".
Key Features
- Load Capacity: 1,000 lbs.
- Wheel Diameter: 8"
- Tread Width: 2"
- Bearing: Stainless steel roller bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,000 lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Replacements requiring the listed Stainless steel roller bearing
Not Ideal For
Not ideal when the load exceeds 1,000 lbs, the equipment requires a wheel other than 8" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, bearing, mounting plate, bolt-hole pattern, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Model / MPN | 32SU80JL0517YY |
| Wheel Type | Solid non-marking cast polyurethane elastomer |
| Wheel Diameter | 8" |
| Tread Width | 2" |
| Load Capacity | 1,000 lbs. |
| Bearing Type | Stainless steel roller bearing |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Overall Height | 9-1/2" |
| Wheel Color | Blue |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Stainless steel roller bearing.
