8" x 2" Mold-On Rubber on Cast Swivel Caster, Total Lock Brake, 600 lb. Cap

In stock
SKU: FTRS80JB0417YY
Regular price $67.85

Trusted By

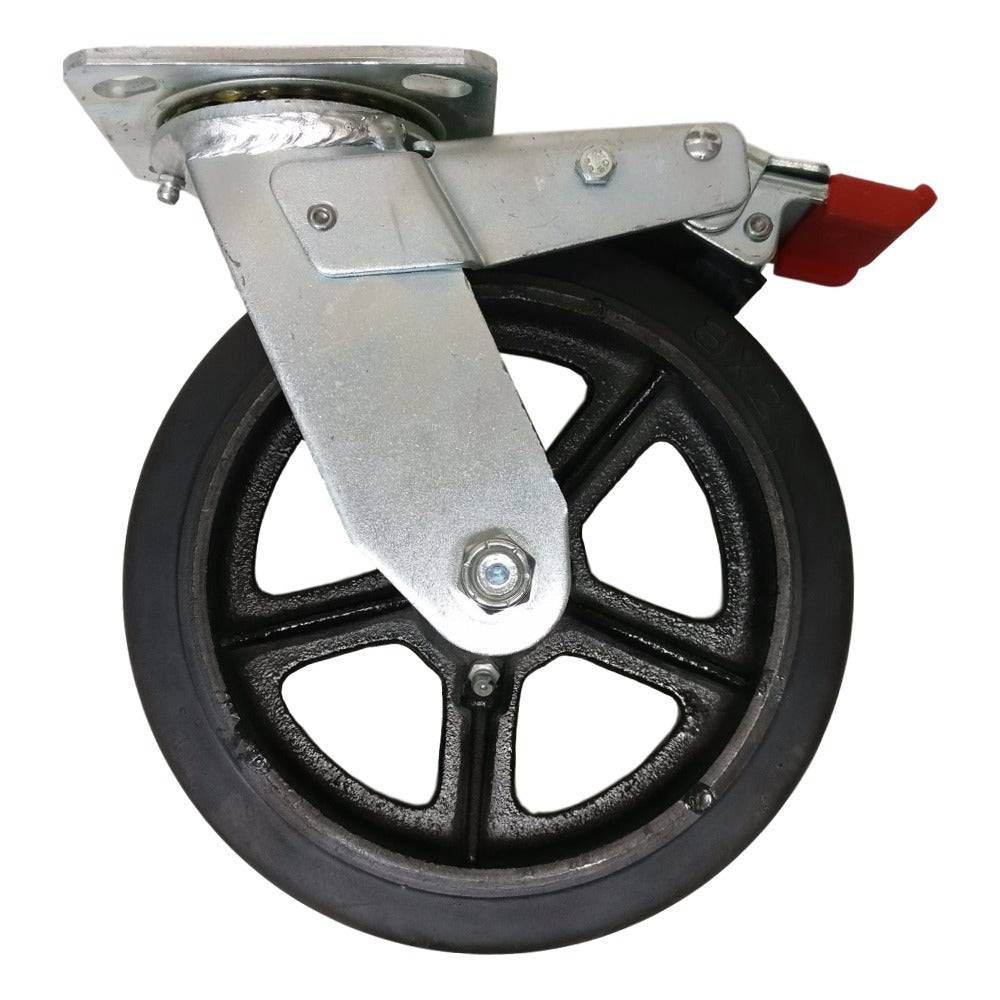

8" x 2" Mold-On Rubber on Cast Wheel Swivel Caster with Total Lock Brake

The mold-on rubber cast wheel is an economic wheel, providing cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.

Tread: Rubber, Vulcanized To Core

Core: Cast Iron Core

Bearing: Roller Bearing

Rig: Zinc-plated swivel caster, 4" x 4-1/2" mounting plate, total lock brake

  • Capacity: 600 Lbs.
  • Color: Black
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  600 Lbs.
Wheel Diameter
8"
Tread Width
2"
Tread Type
Rubber, Vulcanized To Core
Core Type
Cast Iron Core
Bearing Type
Roller Bearing
Wheel Color
Black
Overall Height
9-1/2"
Swivel Radius
6"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Total Lock Brake
Durometer  Shore A 80 (+/-5)
Temperature Range  -40° F to 180° F
