Product Overview

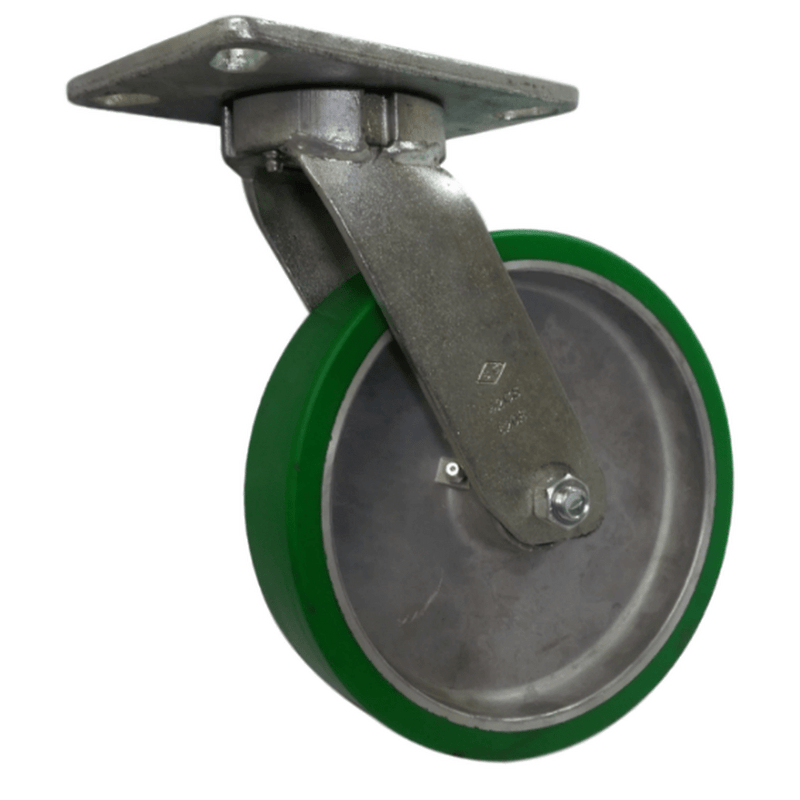

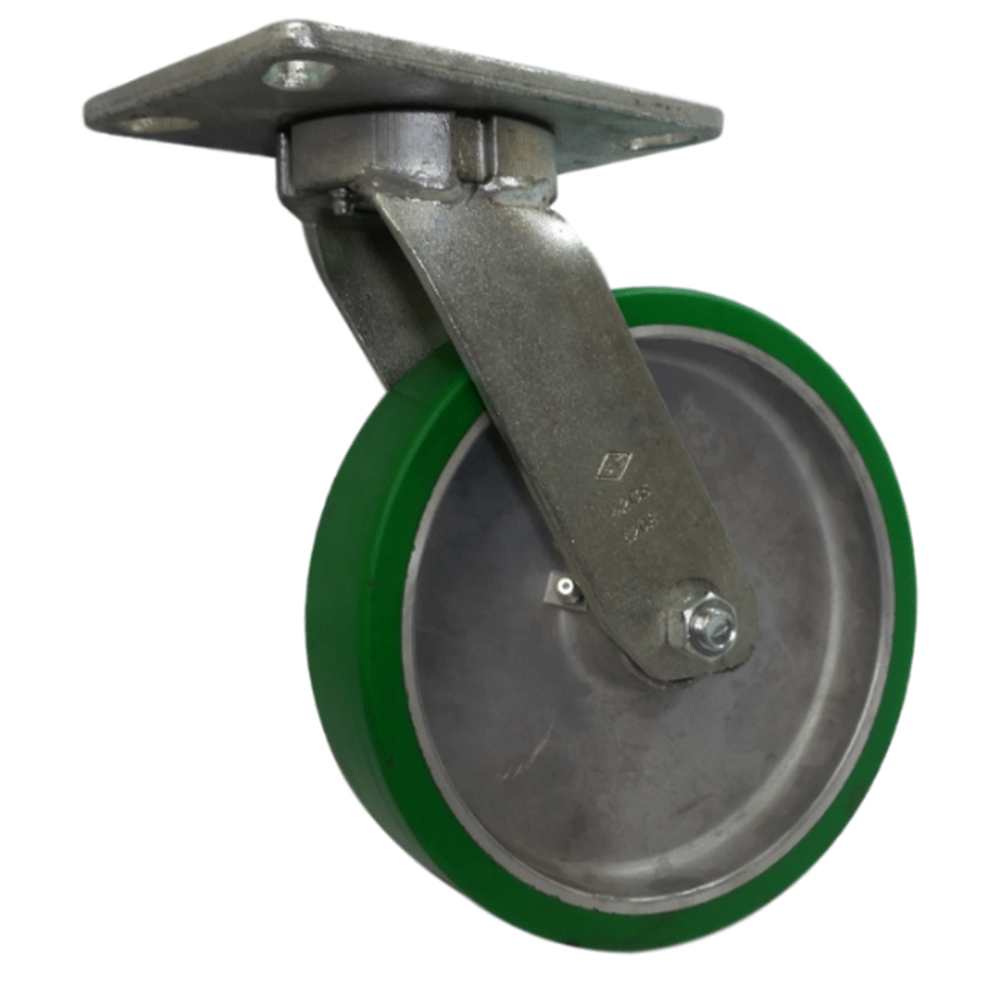

Polyurethane elastomer tread chemically bonded to an aluminum core. Aluminum core has a strong attractive appearance, is lightweight, and resistant to rust and corrosion.
Tread: Polyurethane Elastomer This caster is listed with wheel diameter 8", tread width 2", load capacity 1,500 Lbs., tread type Polyurethane Elastomer, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 1,500 Lbs.
- Wheel Diameter: 8"
- Tread Width: 2"
- Tread: Polyurethane Elastomer
- Bearing: Roller Bearing
- Mounting Plate: 4-1/2" x 6-1/4"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" bolt-hole pattern
- Loads within the listed 1,500 Lbs rating
- Equipment using the listed 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" bolt-hole pattern
- Applications needing the listed Polyurethane Elastomer wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,500 Lbs, the equipment requires a wheel other than 8" diameter by 2" tread width, the mounting does not match the listed 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 8" |
| Tread Width | 2" |
| Wheel Color | Green and Silver |
| Load Capacity | 1,500 Lbs. |
| Overall Height | 9-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4-1/2" x 6-1/4" |
| Tread Type | Polyurethane Elastomer |
| Core Type | Aluminum Core |
| Swivel Radius | 3-1/2" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 95 (+/-5) |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 47PA80JN0419YY | Swivel Locks: Standard |
| 47PA80JN0419PY | Swivel Locks: Add 4-Position Swivel Lock |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4-1/2" x 6-1/4" plate with 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Roller Bearing.
