8" x 2" Semi-Steel Wheel Rigid Caster - 1250 lbs. capacity

In stock
SKU: 28SS80JS0417YY
Regular price $47.71
Est. Ship Date: Tuesday, April 23rd
Trusted By

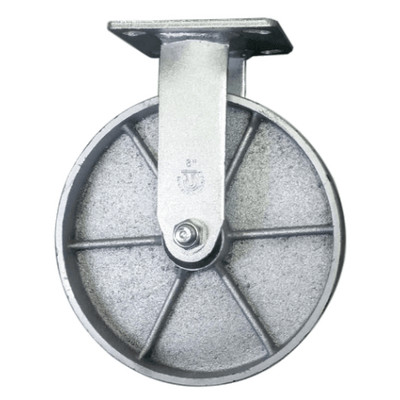

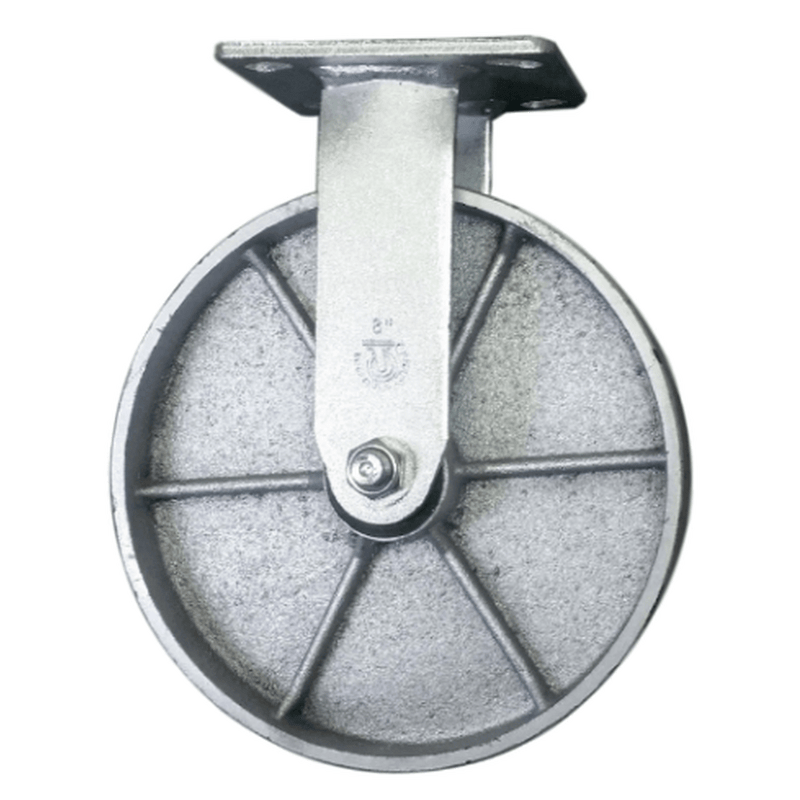

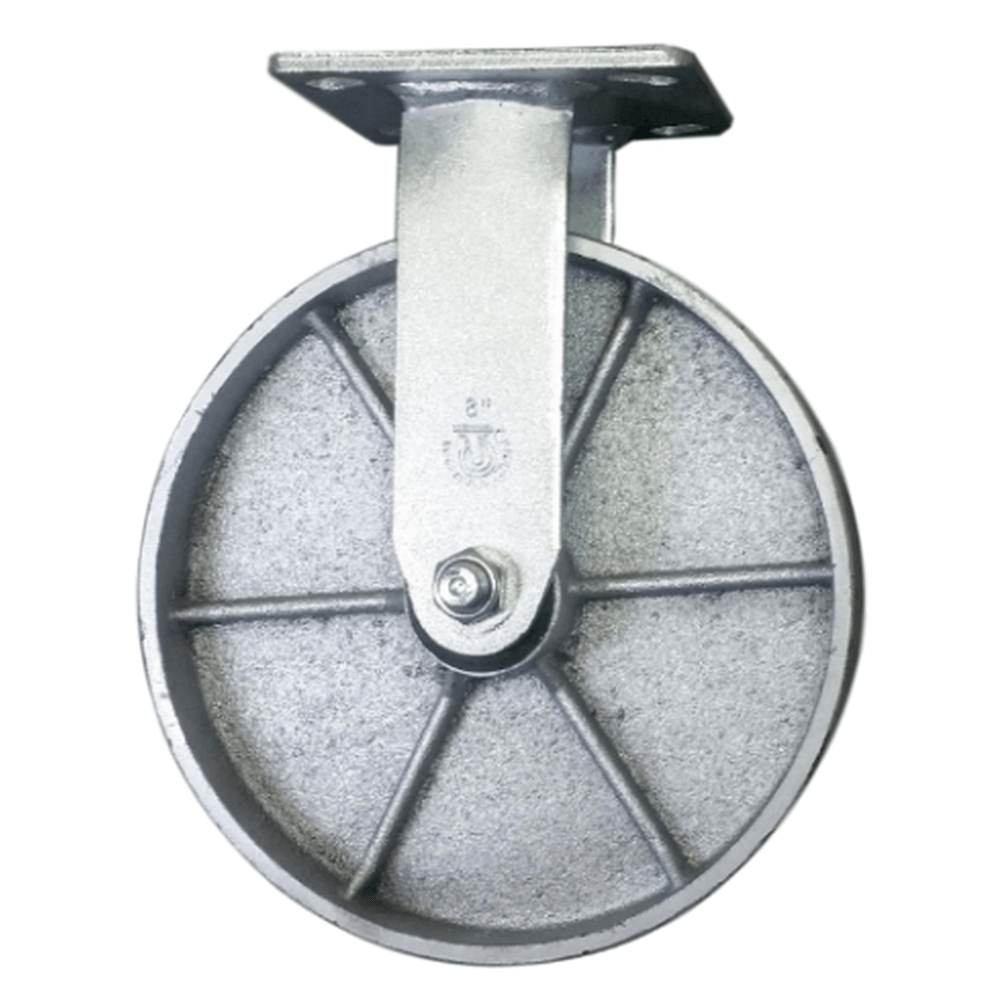

8" x 2" Semi-Steel Wheel Rigid Caster

Semi-Steel offers a strong, durable, cost effective solution of heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Roller Bearing

Rig: Zinc-plated rigid caster, 4" x 4-1/2" mounting plate

  • Capacity: 1,250 Lbs.
  • Color: Silver
  • Hardness: Brinell 145
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity  1,250 Lbs.
Wheel Diameter
8"
Tread Width
2"
Tread Type
Steel Alloy
Core Type
Steel Alloy
Bearing Type
Roller Bearing
Wheel Color
Silver
Overall Height
9-1/2"
Plate Size  4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Tensile Strength  30,000 PSI
Temperature Range  -45° F to 600° F
