8" x 2" Energy Saver Ductile Steel Swivel Caster Medium Duty, 1500 lbs. Cap

In stock
SKU: 43DS80JR0419YY
Regular price $95.01
Est. Ship Date: Monday, March 11th
Four Position Swivel Lock
Trusted By

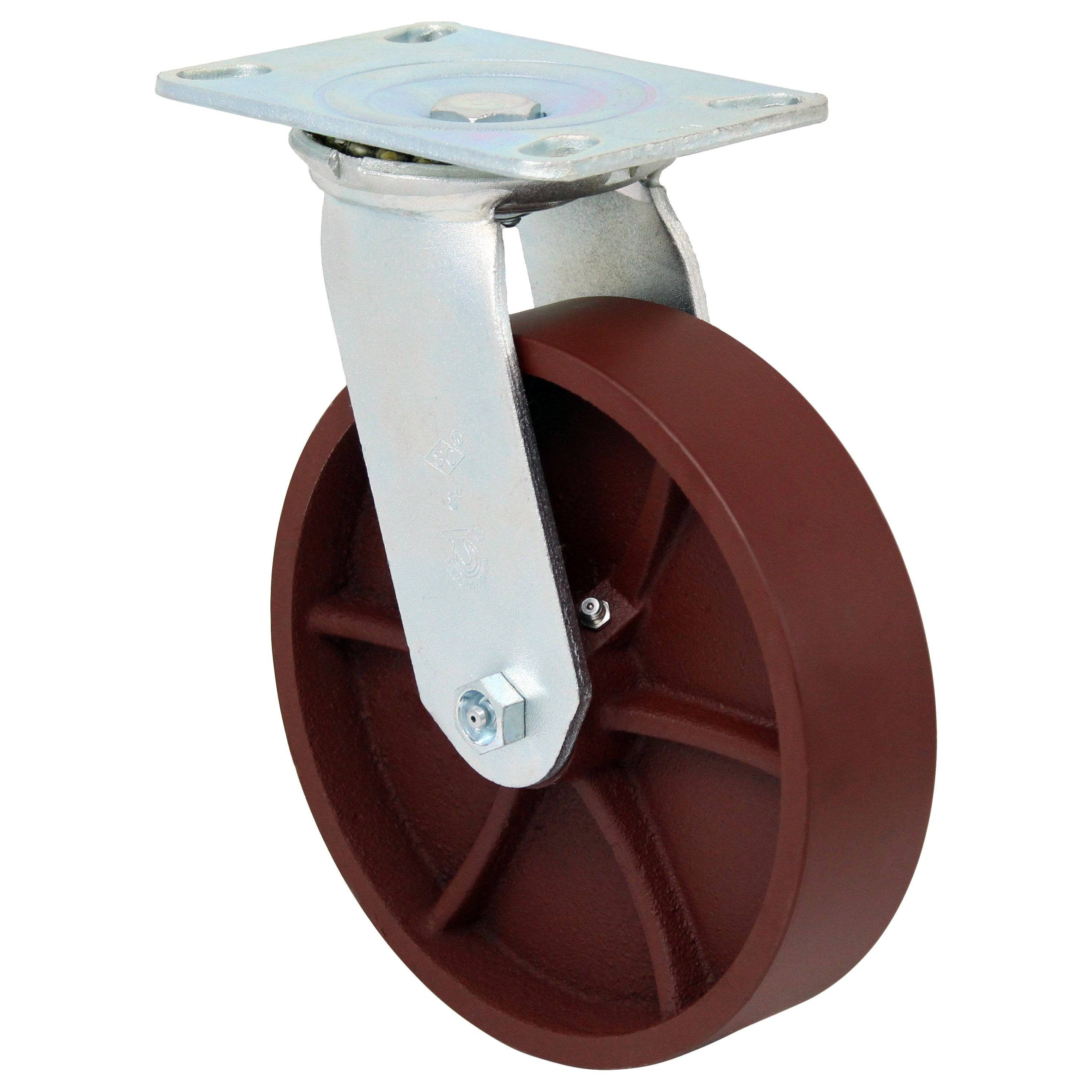

8" x 2" Energy Saver Ductile Steel Wheel Swivel Caster

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.

Tread: Solid Cast Ductile Steel

Core: Solid Cast Ductile Steel

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster,4-1/2" x 6-1/4" Mounting Plate

  • Capacity: 1,500 Lbs.
  • Color: Red
  • Tensile Strength: 45,000 PSI
  • Temperature Range: -45° F to 800° F
Load Capacity  1,500 Lbs.
Wheel Diameter
8"
Tread Width
2"
Tread Type  Slightly Crowned Solid Cast Ductile Steel
Core Type
Solid Cast Ductile Steel
Bearing Type
Roller Bearing
Wheel Color
Red
Overall Height
10-1/8"
Swivel Radius
6-1/2"
Plate Size
4-1/2" x 6-1/4"
Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bolt Hole Diameter
1/2"
Tensile Strength  45,000 PSI
Temperature Range  -45° F to 800° F
