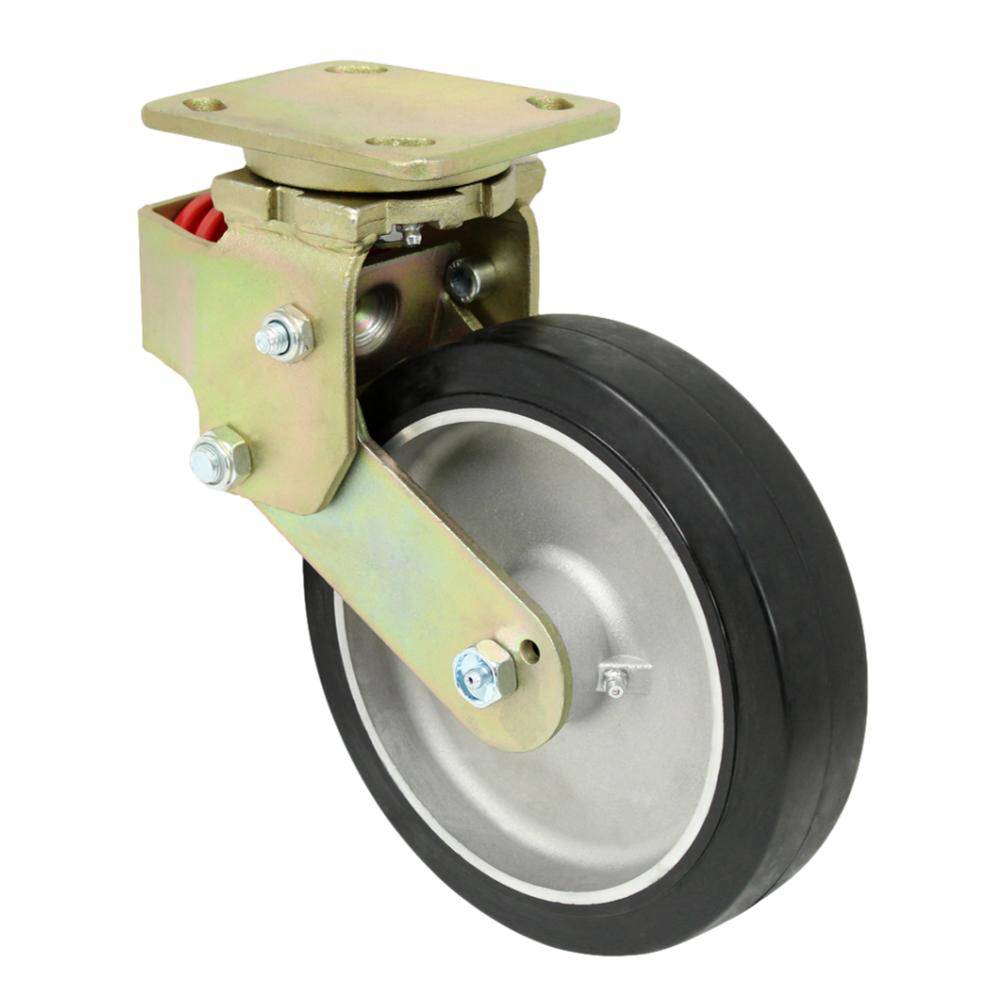

8" x 2" Mold-on Rubber on Aluminum Spring Loaded Swivel Caster - 550 Capacity

In stock
SKU: 3SRA80JB6017YY
Regular price $156.01

Trusted By

8" x 2" Mold-on Rubber on Aluminum Spring Loaded Swivel Caster

Spring loaded casters come with die cast springs with a total compression at 400 lbs. The compression range can be adjusted by changing springs. 2-9/16" bearing raceway is precisely machined and hardened. Mold-on rubber wheel is resilient to corrosion and will not flat spot

  • 550 lbs Capacity
  • Swivel spring loaded caster
  • Durometer Shore A 75 (+/-5)

Tread: Mold-on Rubber

Core: Aluminum

Bearing: Sealed precision ball bearing

Rig: Zinc plated spring loaded swivel caster, 4" x 4-1/2" mounting plate

Load Capacity 550 lbs.
Wheel Diameter 8"
Tread Width 2"
Tread Type Rubber
Core Type
Aluminum
Overall Height 10"
Swivel Radius 5"
Plate Size 4" x 4-1/2"
Bolt Hole Patter 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter 3/8"
Color Black/Silver
Durometer Shore A 75 (+/-5)
Temperature Range -40º F to 180º F
