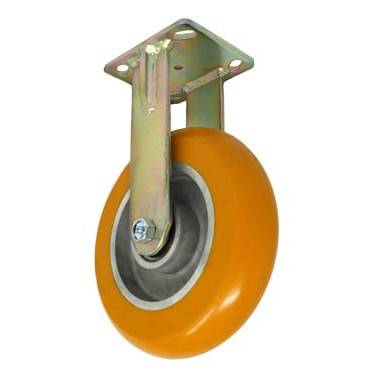

8" x 2" Ultraflex Wheel Rigid Maintenance Free Caster - 1200 lbs Capacity

In stock
SKU: 4RUX80JO6419YY
Regular price $98.71
Est. Ship Date: Wednesday, December 20th
Plate Size
Trusted By

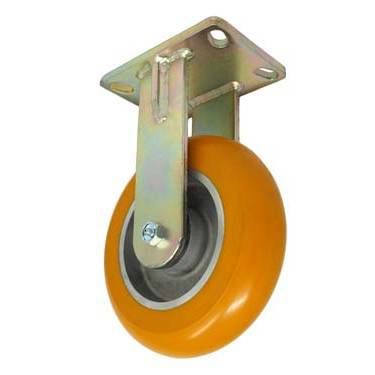

8" x 2" Ultraflex Wheel Rigid Maintenance Free Caster

The Ultraflex is uniquely formulated for best ergonomic push/pull after set and in-line operation. Extra thick polyurethane tread gives best rebound strength and cushion ride. Swivel device is a combination of ball thrust bearings and tapered roller bearings for maximum performance.

Tread: Extra thick polyurethane

Core: Steel

Bearing: Sealed Precision Bearing

Rig: Zinc-plated rigid caster, 4" x 4-1/2" mounting plate

  • Capacity: 1,200 Lbs.
  • Color: Yellow
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1,200 Lbs.
Wheel Diameter
8"
Tread Width
2"
Wheel Type
Ultraflex super elastomer
Bearing Type
Sealed Precision Bearing
Wheel Color
Yellow
Overall Height
10-1/8"
Swivel Radius
7-1/2"
Plate Size
4" x 4-1/2" or 4-1/2" x 6-1/4"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3" or 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bolt Hole Diameter
3/8"
Durometer  Shore A 80 (+/-5)
Temperature Range  -50° F to 180° F
