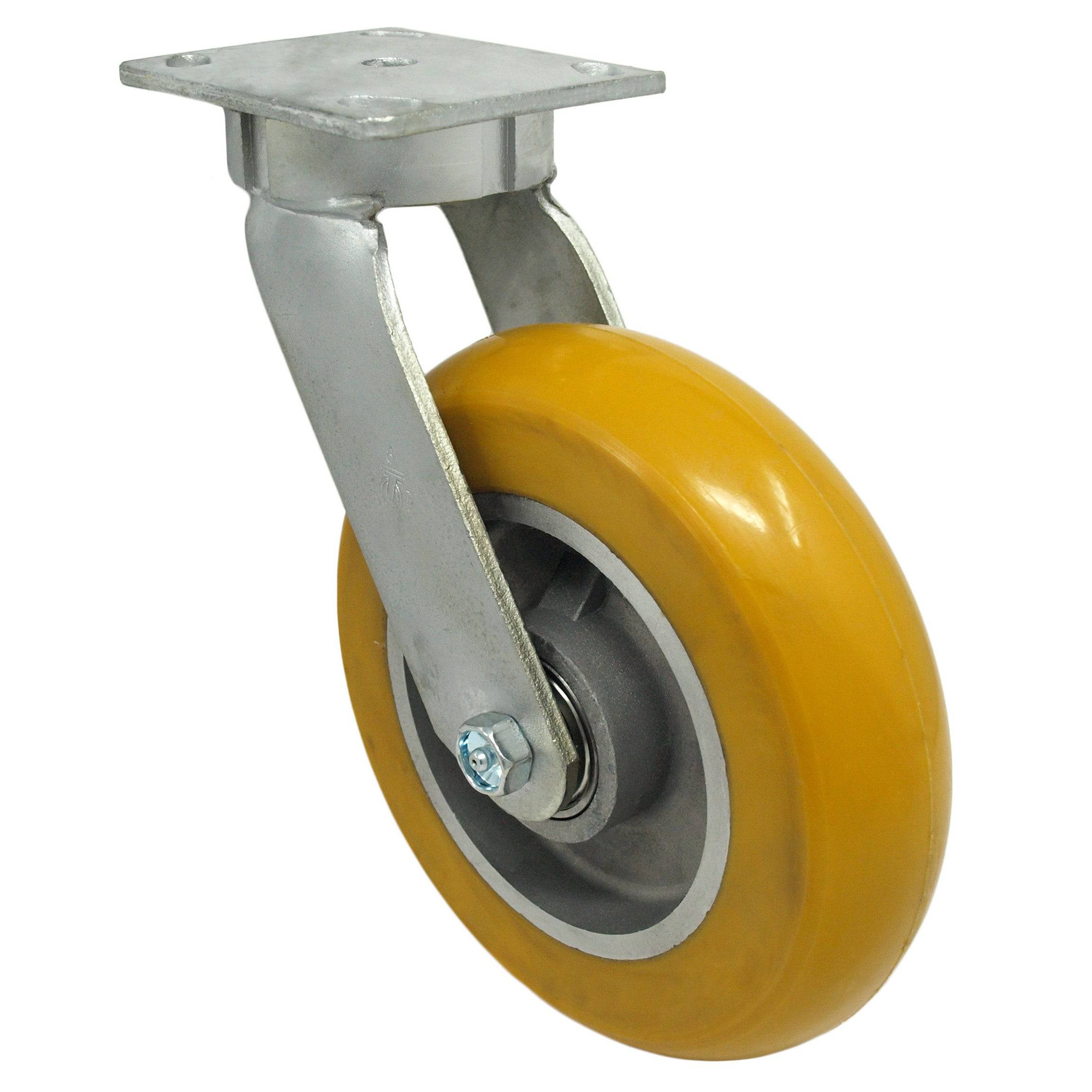

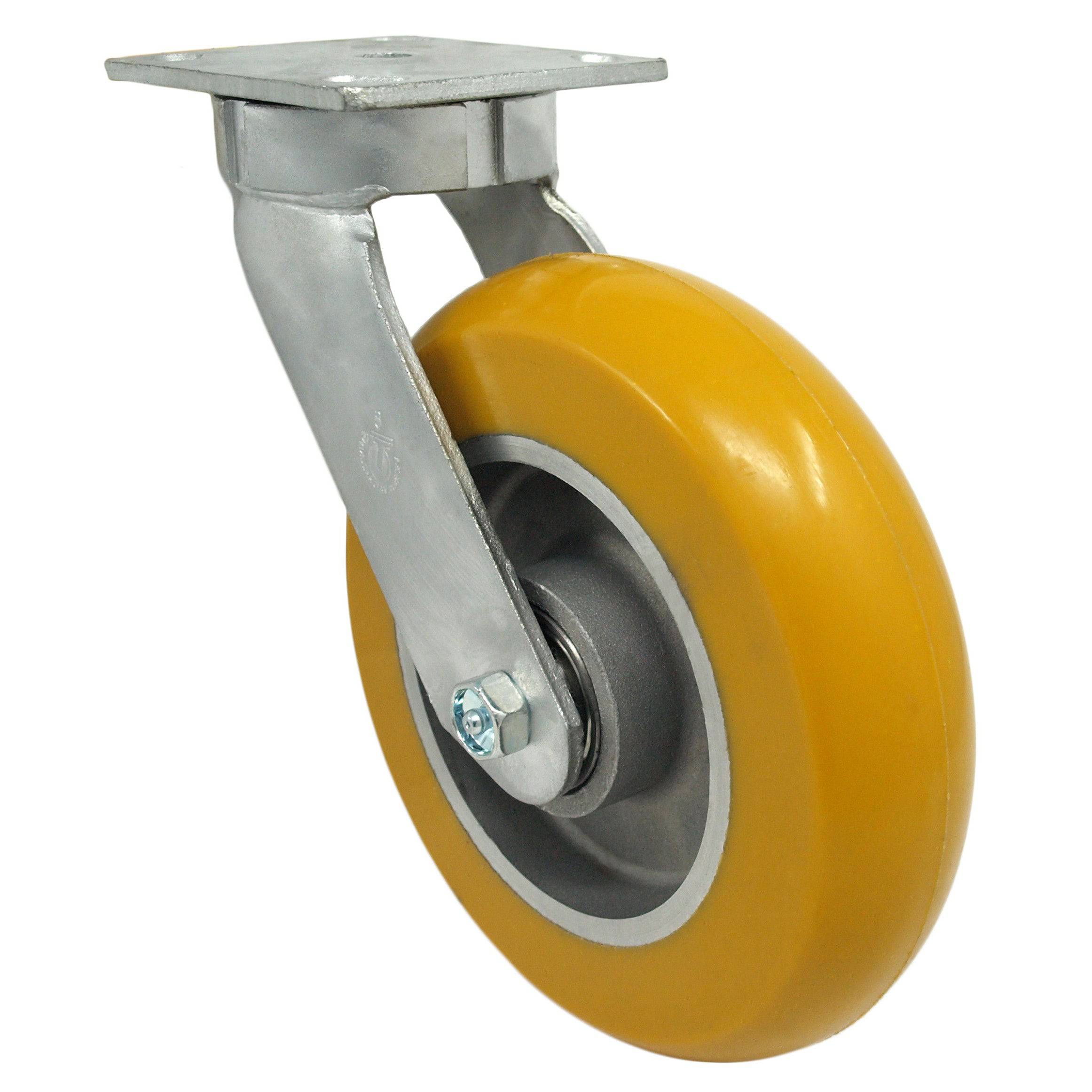

8" x 2" Ultraflex Wheel Swivel Kingpinless Caster - 1200 lbs Capacity

In stock
SKU: 41UX89JO6417YY
Regular price $118.15
Est. Ship Date: Wednesday, April 24th
Overall Height
Trusted By

8" x 2" Ultraflex Wheel Swivel Kingpinless Caster

The Ultraflex is uniquely formulated for best ergonomic push/pull after set and in-line operation. Extra thick polyurethane tread gives best rebound strength and cushion ride. Swivel device is a combination of ball thrust bearings and tapered roller bearings for maximum performance.

Tread: Extra thick polyurethane

Core: Steel

Bearing: Sealed Precision Bearing

Rig: Zinc-plated swivel caster, 4" x 4-1/2" mounting plate

  • Capacity: 1,200 Lbs.
  • Color: Yellow
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1200 Lbs.
Wheel Diameter
8"
Tread Width
2"
Wheel Type
Ultraflex super elastomer
Bearing Type
Sealed Precision Bearing
Wheel Color
Yellow
Overall Height
9-1/2" or 10-1/8"
Swivel Radius
5" or 5-1/2"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer  Shore A 80 (+/-5)
Temperature Range  -50° F to 180° F
