8" x 3" Supreme Rubber on Cast Iron Wheel Kingpinless Swivel Caster - 1000 lbs. Capacity

In stock
SKU: 57RH80LS6519YY
Regular price $225.95
Est. Ship Date: Monday, April 29th
Four Position Swivel Lock
Trusted By

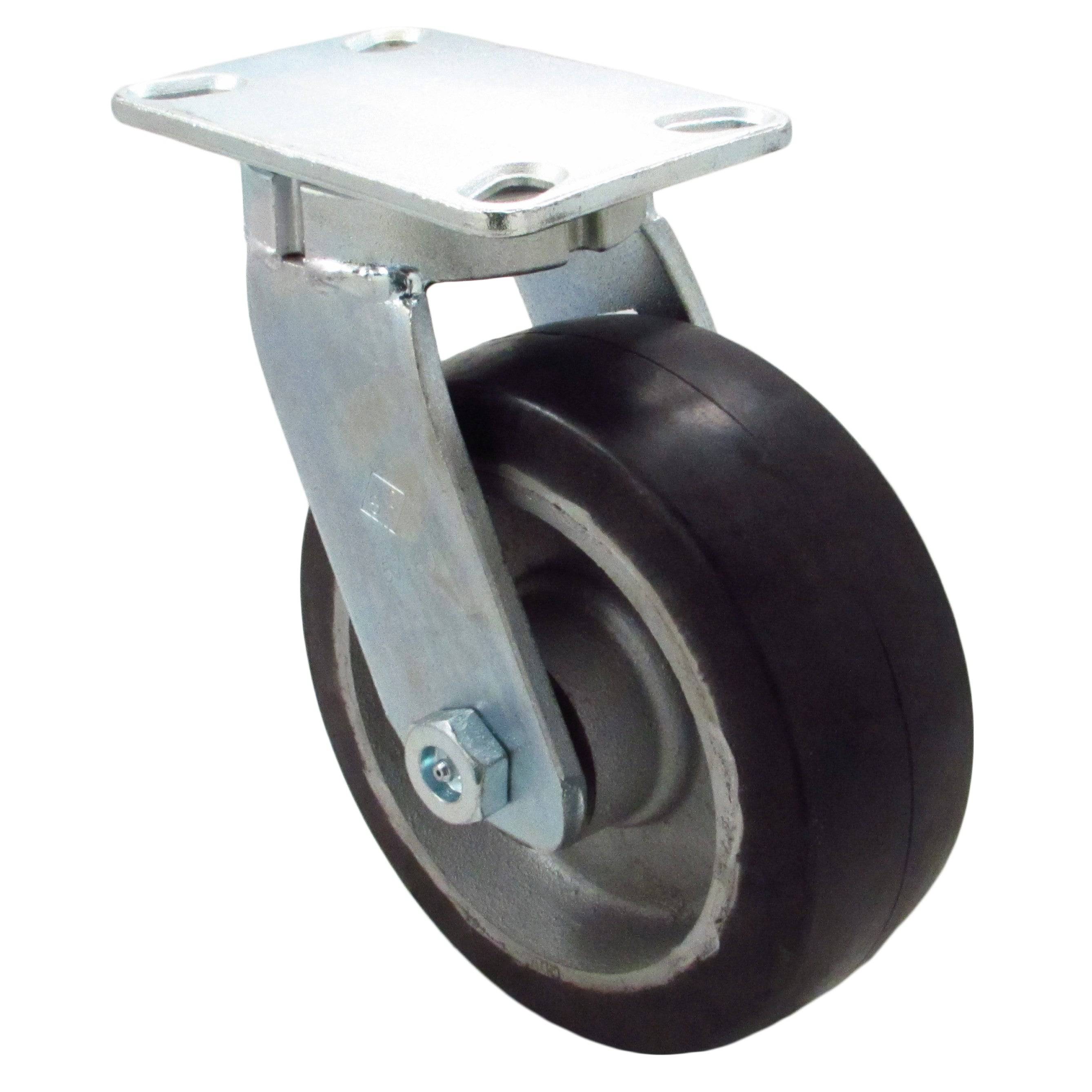

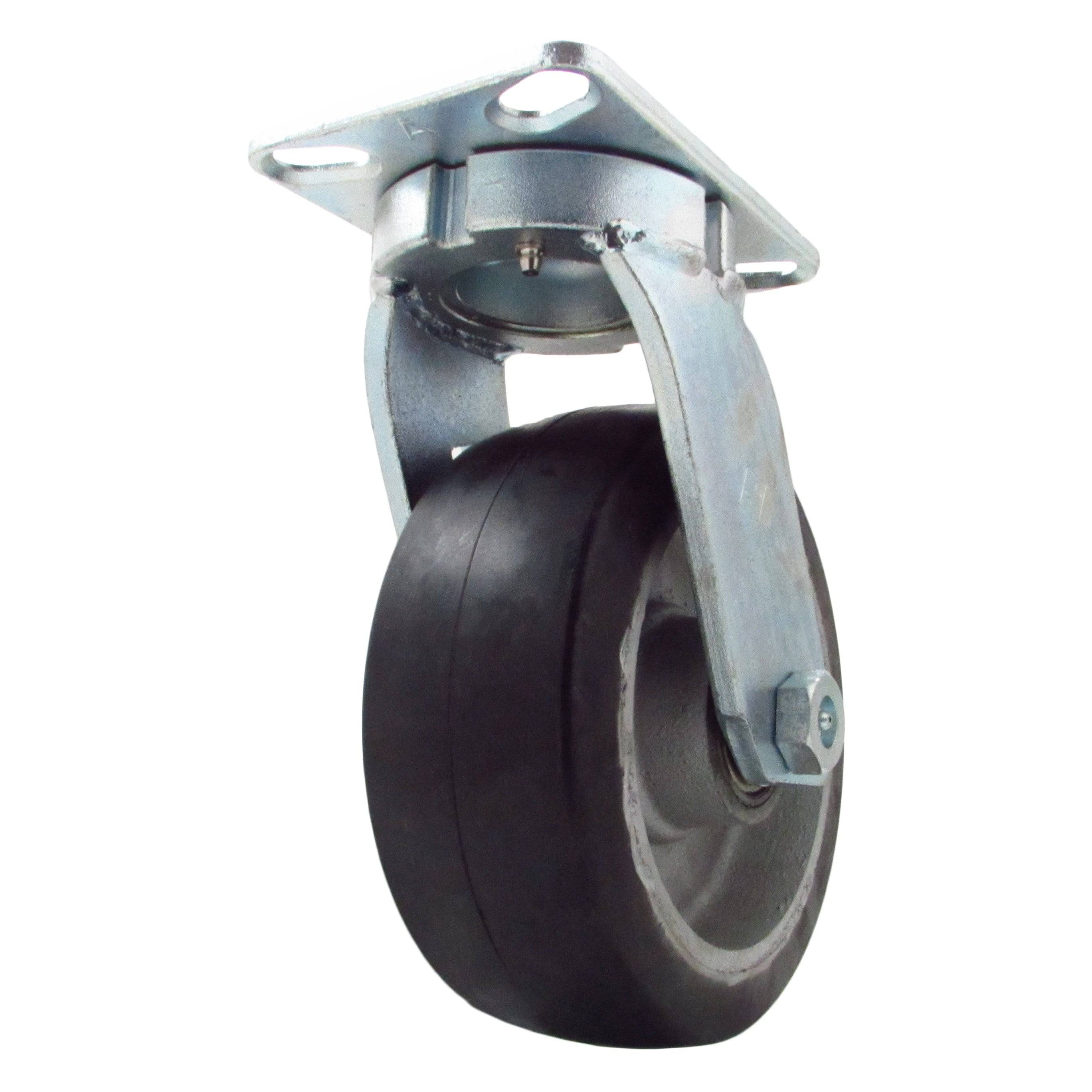

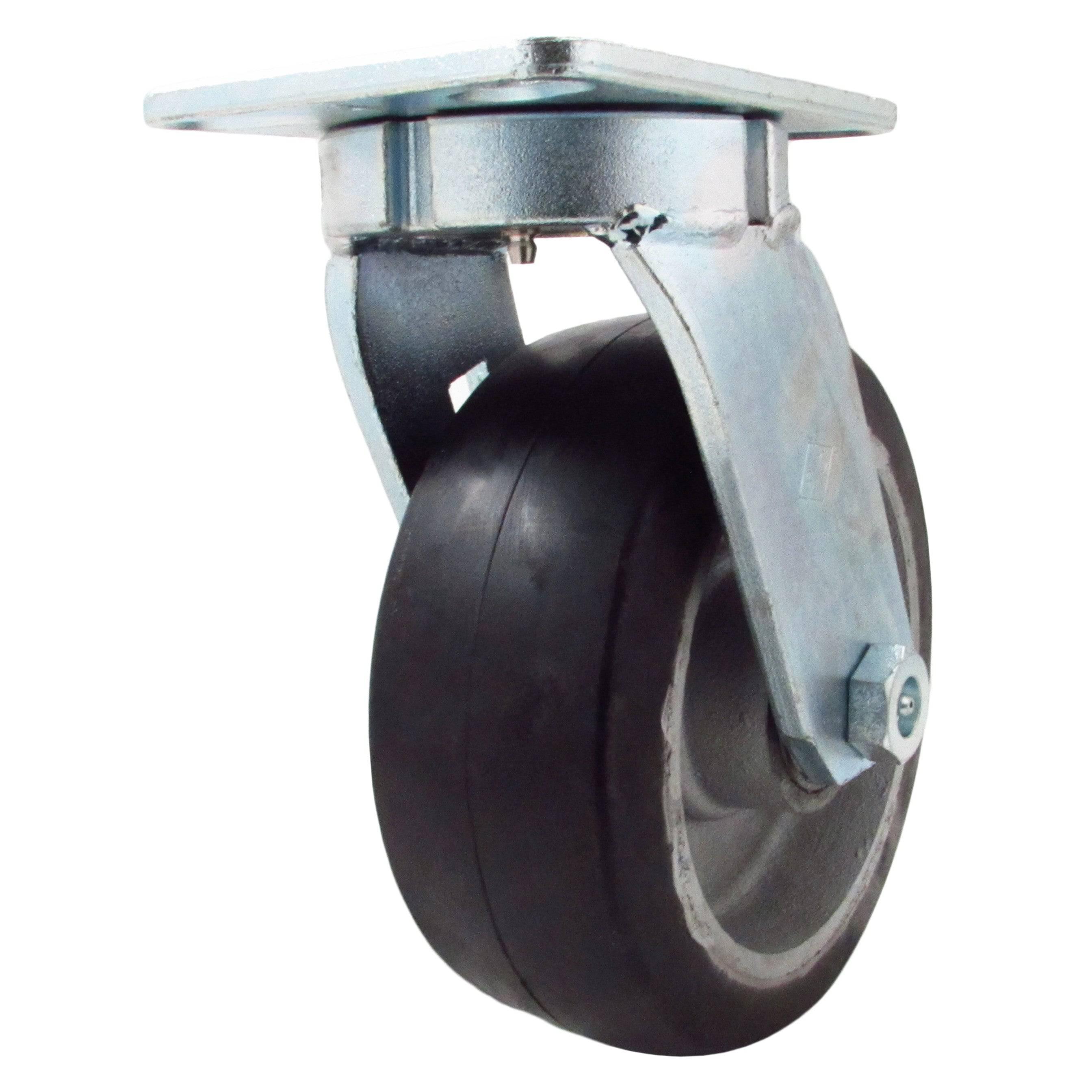

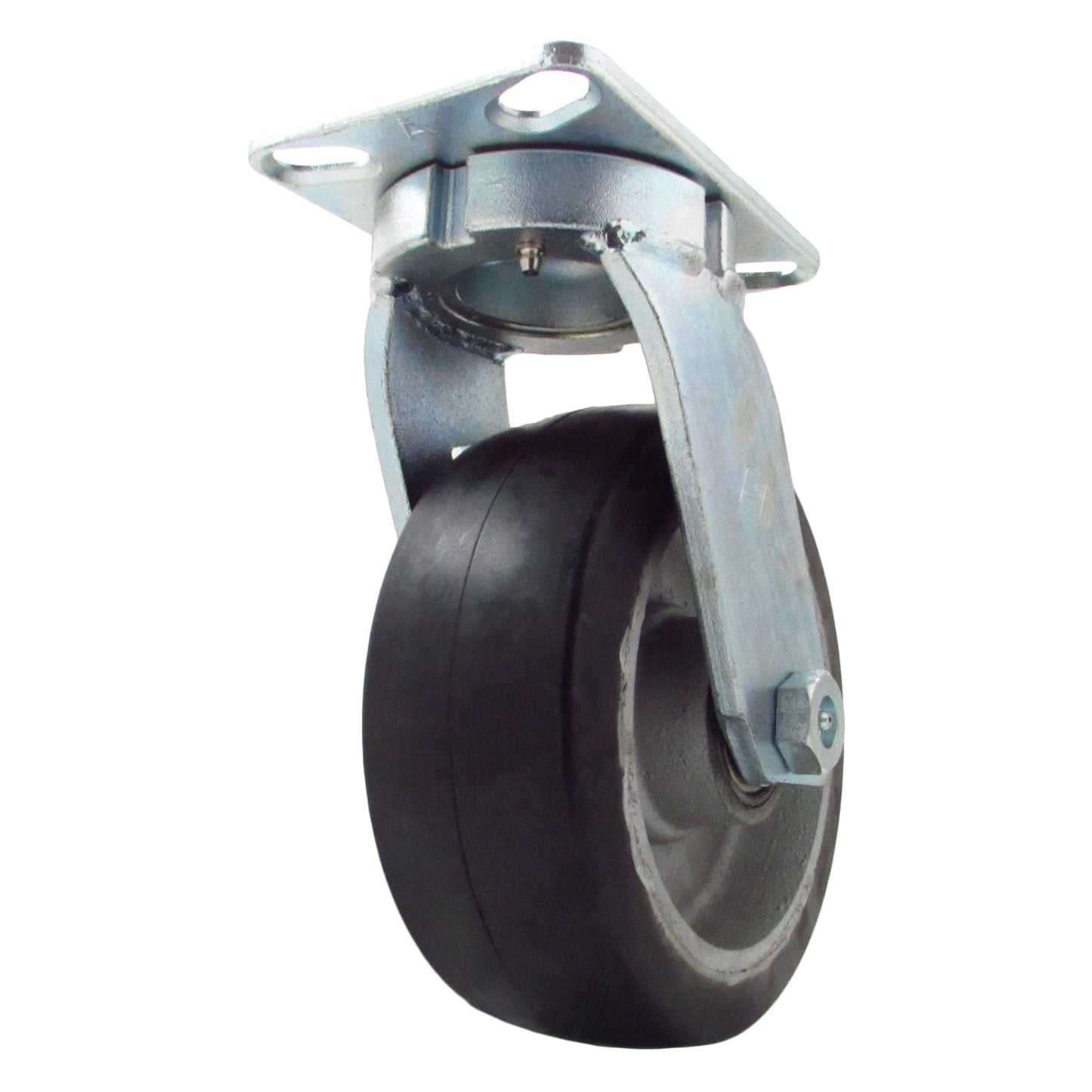

8" x 3" Supreme Rubber on Cast Iron Wheel Kingpinless Swivel Caster

Supreme rubber tread has a tensile strength of 1200 -1400 PSI, various bearing options available. Very heavy duty solid cast iron core makes it the best choice for power towing applications. A variety of bearing options are available including tapered roller bearings (best for power towing) allowing you to fit the bearing size to your axle diameter.

Tread: Supreme Rubber

Core: Heavy-duty cast iron

Bearing: Precision ball bearing

Rig: Zinc-plated kingpin less swivel caster 4-1/2" x 6-1/4" mounting plate.

  • 1,000 lbs. Capacity
  • Color is Black and Silver
  • Durometer: 75 Shore A (+/-5)
  • Temperature Range: -40º F to 180º F
Load Capacity 1000 lbs.
Wheel Diameter 8"
Tread Width 3"
Tread Type Supreme rubber
Core Type
Heavy duty cast iron
Bearing Type Precision ball bearing
Wheel Color Black/Silver
Overall Height 10-1/8"
Swivel Radius 6-1/4"
Plate Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bolt Hole Diameter 1/2"
Durometer Shore A 75 (+/-5)
Temperature Range -40º F to 180º F
