ASTM K4 Traffic Impact Bollards - Crash Rated

The ASTM K4 Crash Rated Bollard has the ability to stop 15,000 lb. vehicles at 30 mph within one-meter penetration.

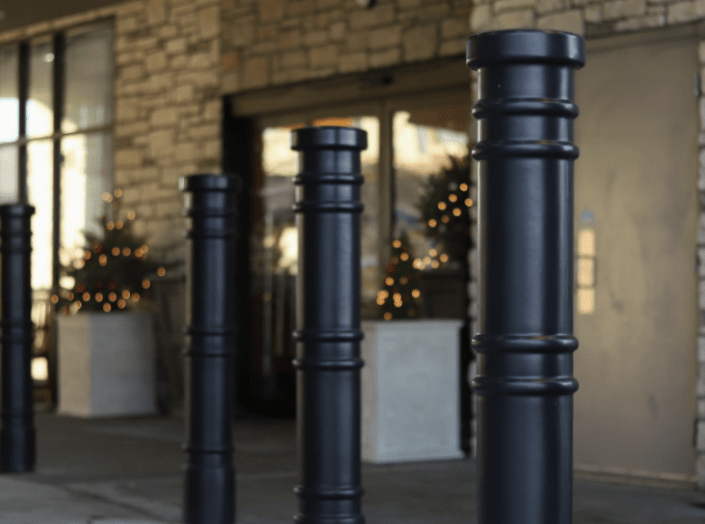

Tested and certified with ASTM F2656-07 M30 P1 rating, these security bollard barriers have been approved by the Department of Defense (DoD) and are now listed on the Anti-Ram Vehicle Barrier List. Designed for bi-directional stopping capability, these safety crash bollards are perfect for storefronts, pedestrian-friendly areas, and much more.

The simple Set & Pour installation will also make life easier for everyone. Simply set a single prefabricated bollard in the excavation and pour in the concrete (no rebar in the foundation). Don't worry about tying, bolting, welding, assembly, or specialty subgrade, as it is not required. Excavation 30" wide by 36" deep with 3000 psi concrete. The bollards are one single unit with a lifting pin and are also field adjustable, as it is easy to install with turns and across grade elevation changes using a standard bollard.

The security bollards are cost-effective as the posts have an unrestricted spacing limit while maintaining ASTM M30 P1 certification and are also available in a removable option for temporary access areas.

• Stops 15,000lb. vehicle at 30 MPH
• 39.5" above ground height
• 8" Diameter
• Less than 1 meter of vehicle penetration (P1)

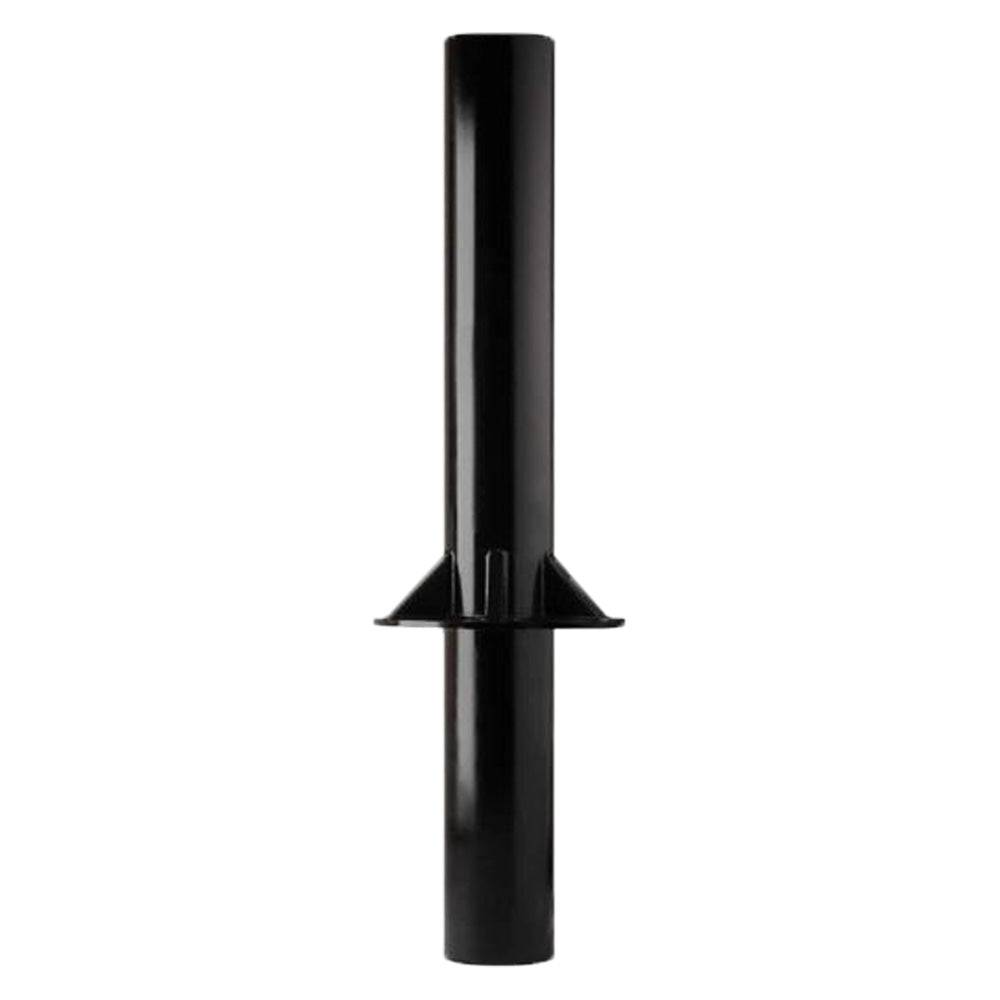

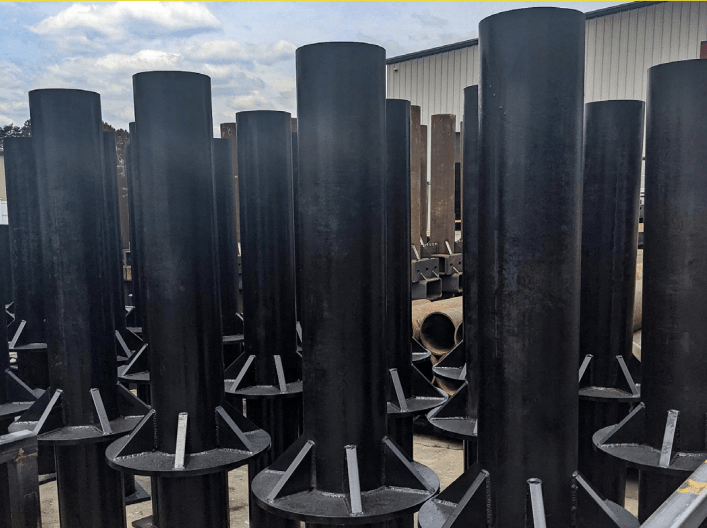

• Single Prefabricated Bollard Delivered
• Quick Installation at Significantly Reduced Cost
• Square Cut, Auger, or Trench for Installation
• No Rebar Required in Foundation
• Simply Excavate, Set Bollard, and Pour Concrete
• Any Bollard Spacing is Certified
• Bollard Array Easily Follows Turns & Grade Changes
• Bi-Directional Stopping Capability
• Removable Bollard Model Available
• Available as Bollard Sign System for parking lot applications
• Variety of Bollard Covers, Finishes, and Sign Systems
• Steel Inserts Available for Better Fitting Bollard Covers

Customizations Per Request

• Rebar Solutions
• Custom Covers
• Custom Height or Diameter
• Removable Option
