Bare Hose Reel

In stock
SKU: 82206
Regular price $1,365.22

Trusted By

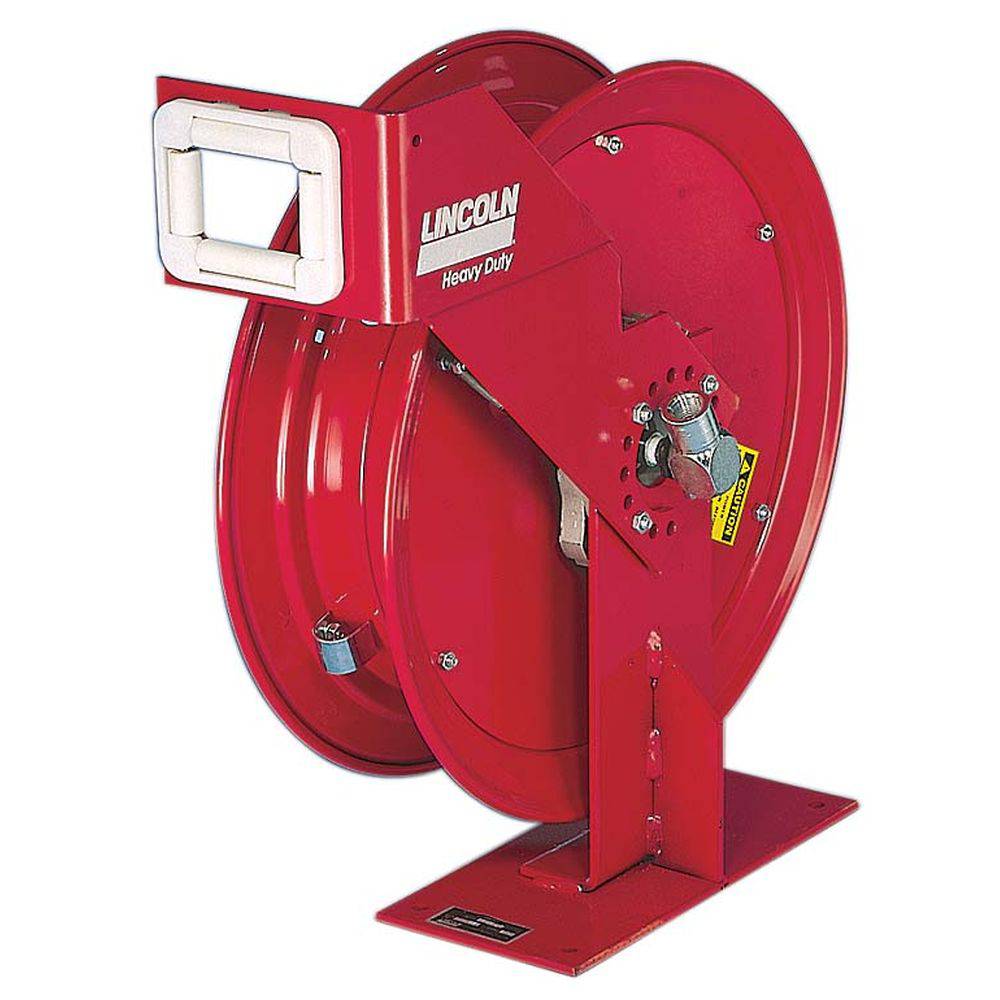

Lincoln® Bare Hose Reel

  • Low-pressure, fully-ported swivel designed to be corrosion resistant when used for air and water-based solutions.
  • Medium-pressure, fully-ported swivel provides unrestricted flow, dispensing higher volumes of fluid.
  • High-pressure swivel includes quick disconnect for easy hose attachment.
  • Two hose clamps perfectly spaced to prevent the hose from locking in the fully extended position.
  • Easily accessible - yet fully contained - power springs designed for optimum performance at various operating pressures.
  • Dual needle bearings reduce the stress on the spring, providing smooth, balanced operation during both hose extension and retraction.
  • Rounded edges on hose guide face enhance safety.
  • Electroless nickel-plated, corrosion-resistant, low-pressure axle prevents contamination of fluid and restriction of flow.
  • Double ratchet teeth provide solid latch to lock hose in multiple usable positions.
  • Mounting base accepts Lincoln No. 82206 mounting pattern and is slotted at both ends for easy installation.
  • Powder-coat finish creates a corrosion-resistant reel that stands up to the elements.
Model No. 82206
Brand Lincoln
Reel Application Heavy-Duty long length
Hose Capacity  Type:
-75        -73
-76A      -78
-76B      -Class A
Length 50'
Inlet Size  1/2" NPT (f)
Pressure  8000 psi/552 bar
Sheave 5-1/2"
