ASTM C40 Traffic Impact Crash Rated Bollard

The ASTM C40 Traffic Impact Bollard are the industry's most cost-effective crash bollard and are designed for storefront and property protection.

Engineered and independently tested to meet the ASTM C40 P1 Standard and designed to meet the ASTM F2656 storefront requirements, these 6" security bollard barriers are designed for bi-directional stopping capability meaning they can be hit from any angle and keep its strength.

One properly installed single standalone bollard is engineered and designed to stop a 5,000 lbs. vehicle at 30 mph impact with less than 24" of vehicle penetration, which makes it equal to or greater than the S10, S20, and S30 standards.

The Traffic Impact Bollard is available in both permanent and removable options, with both options distributing exceptional stopping power making it an ideal application for storefronts, schools, and other pedestrian-friendly areas. If you're looking to add more protective signage to your storefront, Bollard Sign Systems are available as well.

To save time and money on the installation, the simple Set & Pour installation will also make life easier for everyone. Simply set a single prefabricated steel bollard in excavation and pour in the concrete (no rebar in the foundation). Don't worry about tying, bolting, welding, assembly, or specialty subgrade, as it is not required. The bollards are one single unit with a lifting pin to make the installation even easier.

These TIB-67-SA Bollards are also cost-effective as the bollards have an unrestricted spacing limit and can also be field adjusted, as it is easy to properly install with turns and across grade elevation changes using a standard bollard.

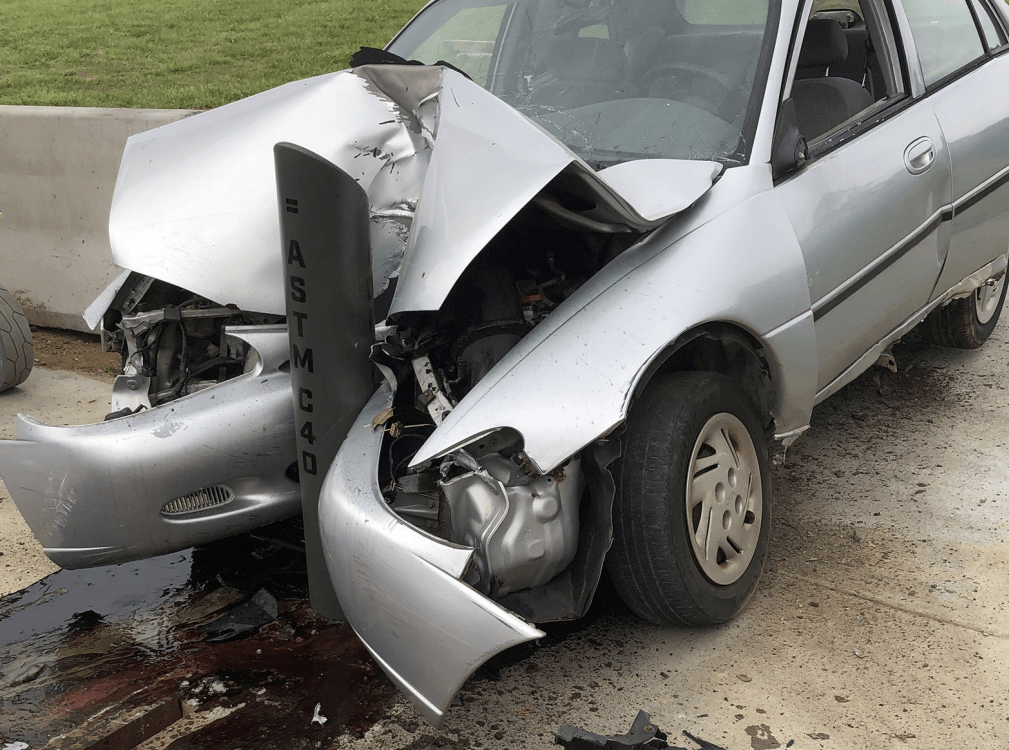

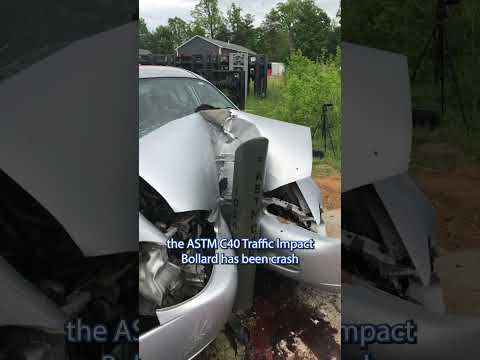

• Passed independent ASTM test of 2,430 lbs. vehicle at 42.6 mph with less than 24" of penetration
• Designed for Storefront Crash Protection
• Engineered and designed to stop a 5,000lb. vehicle at 30 MPH

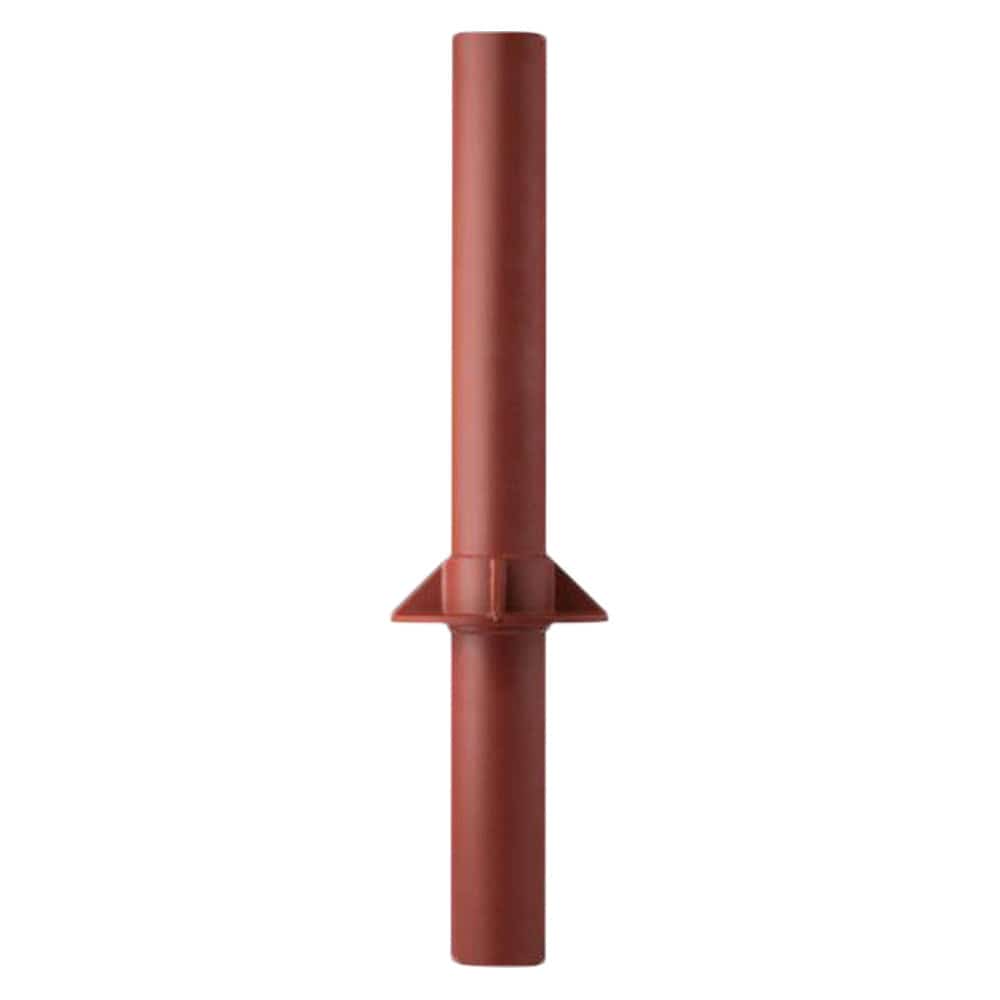

• 6" Schedule 40 Pipe with 10" Disk

• 36" Above Ground Height
• Quick Installation at Significantly Reduced Cost
• Square Cut, Auger, or Trench for Installation
• No Rebar Required in Foundation
• Any Bollard Spacing is Certified
• Bollard Array Easily Follows Turns & Grade Changes
• Bi-Directional Stopping Capability
• Removable Bollard Option Available
• Available in Bollard Sign System for parking lot purposes
• Variety of Bollard Covers, Finishes, and Systems Available

Customizations Per Request:

• Rebar Solutions
• Custom Covers
• Custom Height or Diameter
• Removable Option
